YellowScan Mapper+ LiDAR

Features

Advanced performance fitted into a compact survey solution.

AGL altitude: 100m
System precision: 2.5cm ⁽¹⁾
System accuracy: 3cm ⁽²⁾
Battery weight excl.: 1.1kg

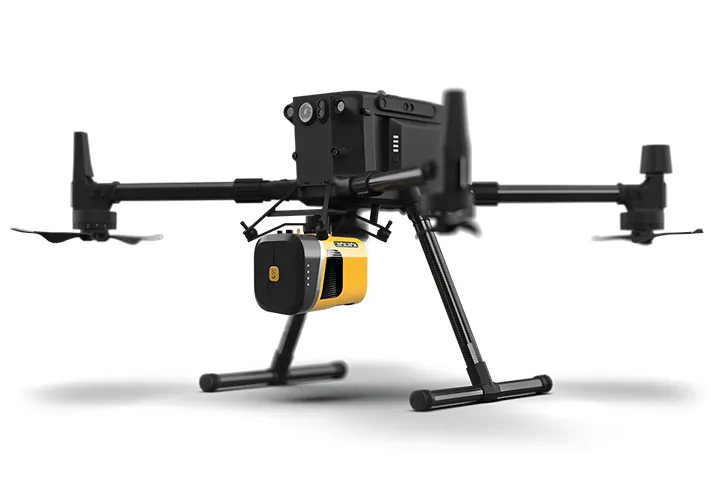

The new YellowScan Mapper+ can be mounted on a wide range of UAV platforms due to its low weight.

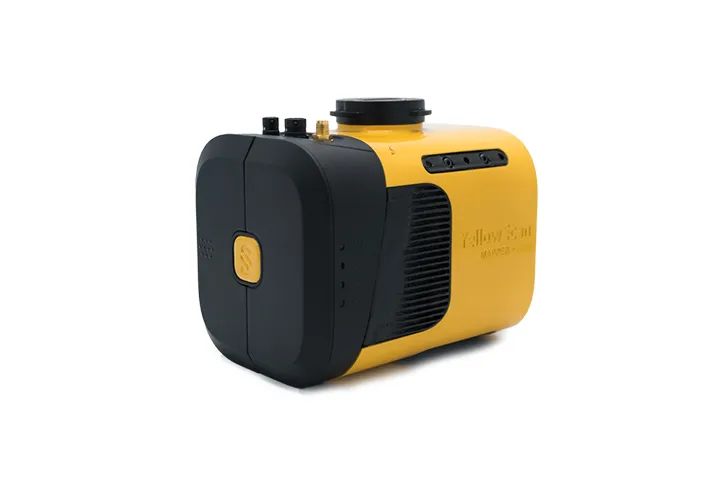

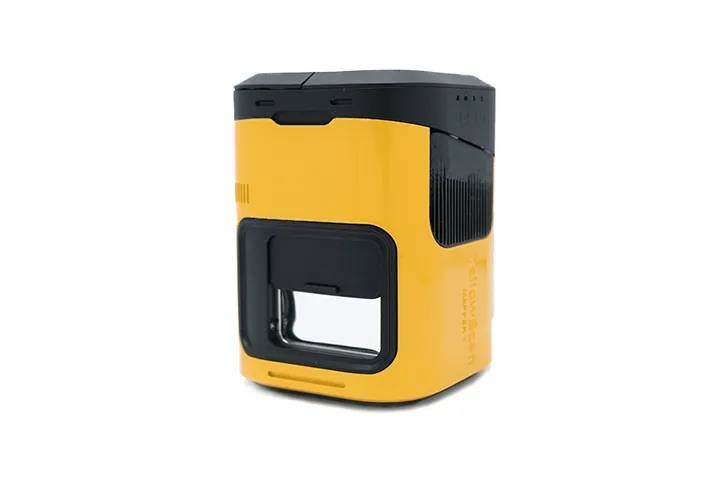

The YellowScan Mapper+ integrates Livox AVIA laser scanner together with high performance GNSS-aided inertial navigation system into a lightweight, standalone and easy-to-use lidar system. Proven capabilities and stable results over a wide range of applications.

Why Mapper+ ?

Applanix Inertial and Navigation solution

Stable, performing and proven result

GNSS-INS post-processing software

CloudStation processing software included

Terrain classification

Strip adjustment

Customer Support

Worldwide support by field operation experts

Advanced YellowScan calibration

Improved scanner performance

Versatile

Can be used on any UAV

Compatible with DJI Skyport & Gremsy port

Key differentiators

High point density

Lightweight

100 m typ. flying height

Technologies inside

Livox AVIA laser scanner

Applanix APX-15UAV IMU

Integrations

Multirotor drones

Helicopter drones

Fixed-wings

Colorize your point cloud using the Camera Module extension.

You can now use our very own camera module on the YellowScan Mapper+.

Operating the camera will be as simple as what philosophy indicates: “Just press the Yellow button”. The camera is powered through the Mapper+ and its data is stored on a dedicated SD card.

Carry your YellowScan Mapper+ on a dedicated backpack.

In this hardshell backpack with custom precut foam, you can easily carry your LiDAR with everything you need (LiDAR system, software, batteries, laptop, data storage). This backpack is the size of a carry-on luggage which fits in any airline overhead compartment.

You‘ve got the power!

A set of 2 worldwide certified batteries is shipped with the YellowScan Mapper+.
They are high-performance batteries that can easily be swapped in the field for increased productivity.

You have 3 different ways to power your YellowScan Mapper+. You can either use:

-Skyport (on DJI M300 UAV) or Gremsy port
-External Power source with the dedicated port (UAV’s power)
-YellowScan Mapper+ LiDAR system’s own power

Just land, remove the first battery set and replace it by the new one. Take-off again! The YellowScan Mapper+ has 1h autonomy with its own battery.

Connect your Mapper LiDAR system to your DJI Skyport.

The YellowScan Mapper+ can be used with the DJI Skyport. The Mapper+ is compatible with the DJI M300…but not only. We have a bunch of customers flying their UAV with our product: multirotor, fixed-wing and helicopter drones.

Connect your YellowScan Mapper+ LiDAR system with Gremsy Port.

The YellowScan Mapper+ is also compatible with the Gremsy port for quick release and easy integration on a wide range of UAVs.

The Human-Machine Interface was thought out to be simple and efficient

With LEDs that indicate the LiDAR system’s status and its single button operation. As usual, we followed the “Just Press the Yellow Button” philosophy.

Data storage is not an issue.

You don’t need to connect to your LiDAR system to gather data. Just remove the USB stick from the system and go to your computer. As you receive two USBs, this helps you land and take-off again straight away thanks to the second USB stick.

Survey productivity matters to us! With one USB stick you can store LiDAR data from a 3 hour-survey.

No overheating LiDAR system!

We have optimized the temperature management with a double suction grid (air flow management) for a better aeration of the system. You can operate the Mapper+ between -20°C/-4°F and +40°C/140°F.

You said dual-sensor?

We designed a new unique internal port for RGB cameras. You will be able to connect other sensors, if needed.

Product Specifications

Precision ⁽¹⁾: 2.5cm
Accuracy ⁽²⁾: 3.0cm
Echoes per shot: Up to 3
Laser wavelength: 905nm
GNSS-Inertial solution: Applanix APX-15UAV
Scanner field of view: 70.4°
Shots per second: Up to 240k
Weight batt. incl.: 1.3kg (2.9lbs)
Weight batt. excl.: 1.1kg (2.5lbs)
Size: L15cm x W10.4cm x H12.3cm
Autonomy: 1 hours typ.
Power consumption: 19W
Operating temperature: -20 to +40°C

Click here to view datasheet

(1) Precision, also called reproducibility or repeatability, accounts for the variation in successive measurements taken on the same target. Here precision value is obtained by averaging the precision from 3 flight levels @60, 90 and 120mAGL. At each flight level, the precision is considered as the mean value of absolute elevation differences between 2 flight lines recorded in opposite directions over a nadir-located 40m² hard surface area.

(2) Accuracy is the degree of conformity of a measured position to its actual (true) value. Here accuracy value is obtained by averaging the accuracy from 3 flight levels @ 60, 90 and 120mAGL. At each flight level, the accuracy is considered as the RMSE value of the elevation differences between targets and the point cloud extracted from 2 flight lines recorded in opposite directions. Validation targets are located within a 40m wide corridor centered along the flight line axis.

In the box

Hardware

YellowScan Mapper+ x 1
Charger x 1
Batteries x 2
GNSS antenna and cable x 1
USB flash drives x 2
Rugged Pelicase x 1
Documentation x 1

Software

Applanix POSPac UAV/MMS
YellowScan CloudStation

Services

Boresight calibration certificate
1-year warranty
In-person or online training
Worldwide support including 1st year unlimited support
