DJI SDR Transmission Combo

Features

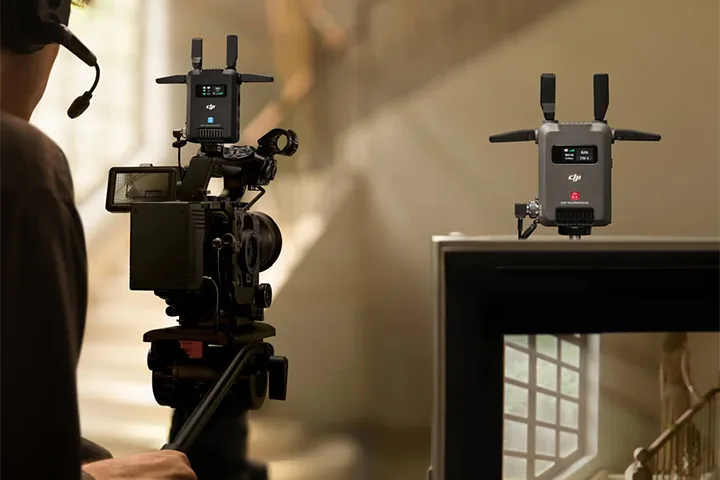

For stable, high-quality video transmission on a small-to-medium-sized shooting set, the SDR Transmission Transmitter from DJI is designed for long-range transmission of footage up to 1080p60 resolution using DJI's proprietary technology. SDR (Software Defined Radio) transmission uses a tri-bandwidth (DFS, 2.4 GHz, and 5.8 GHz) automatic frequency-hopping system, resulting in high penetration and distances up to 3km. The system is ideal for transmitting footage from a camera rig to an unlimited number of receivers or mobile devices, especially on crowded sets or around dense architecture that would otherwise overwhelm a conventional consumer Wi-Fi-based solution.

SDR Transmission, Stable & Anti-Interference

DJI SDR Transmission utilises SDR technology to offer enhanced stability, interference resistance, and penetration capabilities. It also supports transmitting directly to smartphones or tablets via Wi-Fi.

Strong Penetration, Extended Transmission Distance

DJI SDR Transmission features a transmission distance of up to 3 km/10,000 ft, suitable for wide-area mobile filming scenarios, and advanced penetration capabilities.

20Mbps High Bitrate, 1080p FHD Image Quality

DJI SDR Transmission supports 1080p/60fps video specifications with a transmission bitrate of up to 20 Mbps and a minimal latency of just 35 ms.

Innovative USB-C Monitoring Experience

DJI SDR Transmission introduces a USB-C output monitoring method. Users can now use a USB-C cable to connect the receiver to a smartphone or tablet.

Broadcast Mode, Unlimited Number of Receivers

In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience.

Ronin Compatibility & Remote Control

DJI SDR Transmission supports control of the RS series stabilisers, remote camera control, various monitoring assistance, and camera source switching.

Product Specifications

Weight: Approx. 145 g (including antennas)
Dimensions: 86.5×64×32 mm (L×W×H, excluding antennas)
Ports: SDI Input Port, HDMI Input Port, 3.5mm Stereo Jack, USB-C Firmware Update Port, USB-C Power and Gimbal Communication Port
Operating Frequency: SDR: 2.4000-2.4835 GHz, 5.725-5.850 GHz; DFS: 5.470-5.725 GHz; Wi-Fi: 2.4000-2.4835 GHz, 5.150-5.250 GHz
Transmitter Power (EIRP): SDR: 2.4000-2.4835 GHz: < 30 dBm (FCC), < 20 dBm (SRRC/CE/MIC); 5.470-5.725 GHz: < 30 dBm (FCC), < 23 dBm (CE/MIC); 5.725-5.850 GHz: < 30 dBm (FCC), < 14 dBm (CE); Wi-Fi: 2.4000-2.4835 GHz: < 26 dBm (FCC), < 20 dBm (SRRC/CE/MIC); 5.150-5.250 GHz: < 26 dBm (FCC), < 23 dBm (SRRC/CE/MIC)
Wi-Fi Protocol: 802.11b/a/g/n/ac/ax, Supports 2×2 MIMO Wi-Fi
Max Bandwidth: SDR: 20 MHz; Wi-Fi: 20 MHz
Max Bitrate: SDR: 20 Mbps*; Wi-Fi: 8 Mbps
Power Consumption: 8.2 W
Power Supply: USB-C: 9 V, 2 A (PD protocol); USB-C: 6.8-17.2 V DC; NP-F Battery: 6.8-8.4 V
Input Video Format: 1080p: 23.98/24/25/29.97/30/50/59.94/60fps; 1080i: 50/50.94/60fps (1080i is not available in Broadcast mode); 720p: 50/59.94/60fps
Input Audio Format: SDI embedded, HDMI embedded
Video Transmission System: SDR + Wi-Fi
Video Transmission Latency: SDR: 80 ms* (including camera and screen display latency); 35 ms* (excluding camera and screen display latency); Wi-Fi: 110 ms**
Video Coding Format: H.264
Max Transmission Distance: SDR: 3 km (FCC); 2 km (CE/SRRC/MIC); Wi-Fi: 200 m
Operating Temperature: -10° to 40° C (14° to 104° F)
Receiver Weight: Approx. 145 g (including antennas)
Receiver Dimensions: 86.5×64×32 mm (L×W×H, excluding antennas)
Receiver Ports: SDI Output Port, HDMI Output Port, 3.5mm Stereo Jack, USB-C Firmware Update and Video Output Port, USB-C Power Port
Receiver Operating Frequency: SDR: 2.4000-2.4835 GHz, 5.725-5.850 GHz
Receiver Transmitter Power (EIRP): SDR: 2.4000-2.4835 GHz: < 30 dBm (FCC), < 20 dBm (SRRC/CE/MIC); 5.725-5.850 GHz: < 30 dBm (FCC), < 14 dBm (CE), < 23 dBm (SRRC)
Max Bandwidth: 20 MHz
Max Bitrate: 20 Mbps
Power Consumption: 8.3 W
Power Supply: USB-C: 9 V, 2 A (PD protocol); USB-C: 6.8-17.2 V DC; NP-F Battery: 6.8-8.4 V
Output Video Format: 1080p: 23.98/24/25/29.97/30/50/59.94/60fps; 1080i: 50/50.94/60fps (1080i is not available in Broadcast mode); 720p: 50/59.94/60fps
Output Audio Format: PCM
Video Transmission System: SDR
Video Transmission Latency: SDR: 80 ms (including camera and screen display latency); 35 ms (excluding camera and screen display latency)
Video Coding Format: H.264
Max Transmission Distance: 3 km (FCC), 2 km (CE/SRRC/MIC)
Operating Temperature: -10° to 40° C (14° to 104° F)

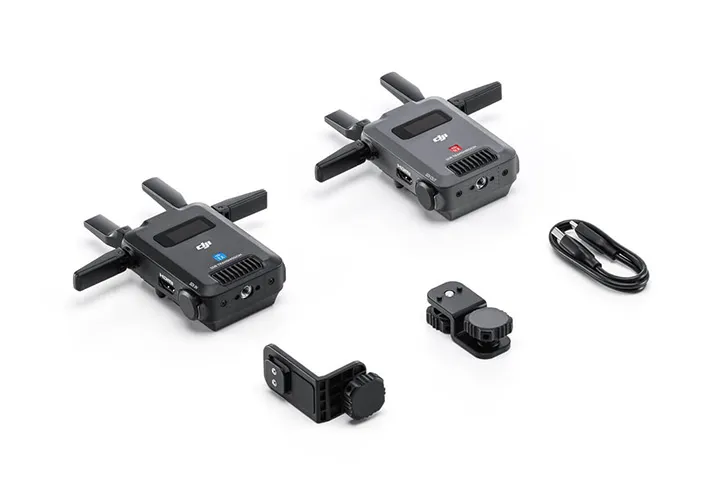

In the box

DJI SDR Transmission Transmitter (TX) × 1
DJI SDR Transmission Receiver (RX) × 1
USB-A to USB-C Cable (43 cm) × 1
TX Camera Mounting Adapter Plate × 1
TX Gimbal Mounting Adapter Plate × 1

WHY BUY FROM US?

By buying from Ferntech, you'll have the confidence that you are dealing directly with New Zealand's leading drone experts. Our staff are knowledgable drone pilots who offer expert advice, trusted support and superior specialist service. Only through us will you receive a full New Zealand warranty, phone and email support, and access to our certified Repairs Centre with DJI-qualified drone technicians. And we guarantee that we will have the best prices on the market — if not let us know and we will match any price (conditions apply).

Warranty Details

1 year warranty
