DJI RS3 Pro Combo

Features

Nothing Out of Reach

Expanding on the powerful features of the Ronin series, DJI RS 3 Pro is an advanced, comprehensive camera expansion platform that empowers videographers and provides coordinated shooting solutions for professional crews. With DJI RS 3 Pro, nothing is out of reach.

Pro-Grade Design

Handle Big Payloads

RS 3 Pro uses extended carbon fiber axis arms to allow more balancing space for professional cameras, making it a perfect fit for cameras like the Sony FX6 or Canon C70 with 24-70mm F2.8 lenses, expanding creative possibilities.

The new Extended Lower Quick-Release Plate [1] ensures more stable camera mounting, and is convenient for installing a lens support for more secure setups.

To make the balancing process easier, a fine-tuning knob has been added for the tilt axis to move the camera forward or backward more precisely, even down to the millimeter. With Teflon®-coated components, RS 3 Pro can be balanced with less friction and lower resistance, even when mounting heavy cameras.

Automated Axis Locks

RS 3 Pro allows you to get started fast to never miss a shot. Simply press and hold the power button and the three axes unlock and expand automatically, allowing you to start shooting within seconds. Press the power button once, and the axes automatically lock and enter sleep mode, making company move significantly more efficient. Press and hold the power button and it will fold and lock automatically.

High-Capacity Payloads

The optimized structural design of RS 3 Pro ensures that its weight remains the same as RS 2 at just 1.5 kg/3.3 lbs (includes gimbal, battery grip, and dual-layered quick-release plates), while its load capacity is a robust 4.5 kg/10 lbs, delivering powerful support in a lightweight body.

Wireless Shutter Control

Equipped with Dual-Mode Bluetooth technology, RS 3 Pro is able to achieve efficient and reliable wireless shutter control. [2] After the initial Bluetooth pairing, you can control video and photo shooting by simply pressing the record button on the stabilizer. A previously paired camera will automatically reconnect, saving you time with every ensuing use.

Instant Mode Switching

By simply sliding the new Gimbal Mode Switch, you can alternate between Pan follow, Pan and Tilt follow, and FPV modes. The FPV mode selection is also customizable to 3D Roll 360, Portrait, or Custom, allowing you to adjust your equipment and get started fast.

Bigger is Better

A large, built-in 1.8-inch OLED full-color touchscreen increases screen size by 28% compared to RS 2, making it incredibly convenient for setting parameters, checking shooting status, and framing your tracked subjects. [3] And with the redesigned user interface, every setting is more intuitive and precise. The OLED screen also offers higher brightness than the LCD screen of RS 2 for better outdoor viewing with lower power consumption.

Pro-Grade Stabilization

Sleek Carbon Fiber Construction

The RS 3 Pro arms are constructed from layered sheets of uncut carbon fiber, just like the Ronin 2. This makes it lighter and stronger than the jointed carbon fiber material used on RS 2, increasing stiffness and lowering weight to cope with even more demanding shooting environments.

The Next Evolution of RS Stabilization

Empowered by the third generation of RS stabilization algorithms, RS 3 Pro provides significantly enhanced stability in any scenario. Laboratory sampling data shows RS 3 Pro provides a 20% increase in stability over RS 2, effortlessly managing low-angle shots, running scenarios, or switching between high and low positions.

Get SuperSmooth Results

When SuperSmooth mode is enabled, RS 3 Pro increases motor torque to further enhance stabilization, delivering stable footage even in fast-moving scenarios or when using 100mm-equivalent focal length lenses.

Pro-Grade Focusing

LiDAR Assistance

To make focusing easier, Ronin 4D’s LiDAR focusing technology is applied to RS 3 Pro. The new LiDAR Range Finder (RS) can project 43,200 ranging points within a 14-meter distance. [4]

It also features a built-in camera with an equivalent focal length of 30 mm and a wide FOV of 70°, catering to the focusing needs of most scenarios.

Compared with conventional focusing technology, the LiDAR focusing system does not need to rely on the surface texture of the subject. This is especially useful in low-light environments or complicated scenarios with multiple subjects and results in exceptionally stable focus.

It supports both Wide Mode and Spot Mode. In Wide Mode, the range finder automatically detects the subject and follows focus. In Spot Mode, users can manually frame or tap the subject to focus.

All-New Focus Motor

The next-generation DJI RS Focus Motor (2022) provides torque three times stronger (up to 1 N·m) and reduces audible noise by 50%. This delivers a smoother focusing experience and reduces the effect on audio recording. It also adopts a quick-release structure, allowing it to be assembled easily without any tools for faster use.

Enables Cinematic Autofocus

The pairing of the LiDAR Range Finder with the new Focus Motor also makes cinematic autofocus on manual lenses possible. Press the M button on the gimbal once to quickly switch between manual focus and autofocus to meet your needs for both modes effortlessly.

After the calibration of manual lenses, several lens calibration profiles can be stored in the focus motor, so there is no need to re-calibrate before ensuing uses. Certain cinema lenses [5] can even directly connect to the focus motor for autofocus with no need for calibration.

Users can also directly connect the LiDAR Range Finder and focus motor to the camera and operate independently from the gimbal, enabling autofocus on manual lenses as well with an external battery. [6]

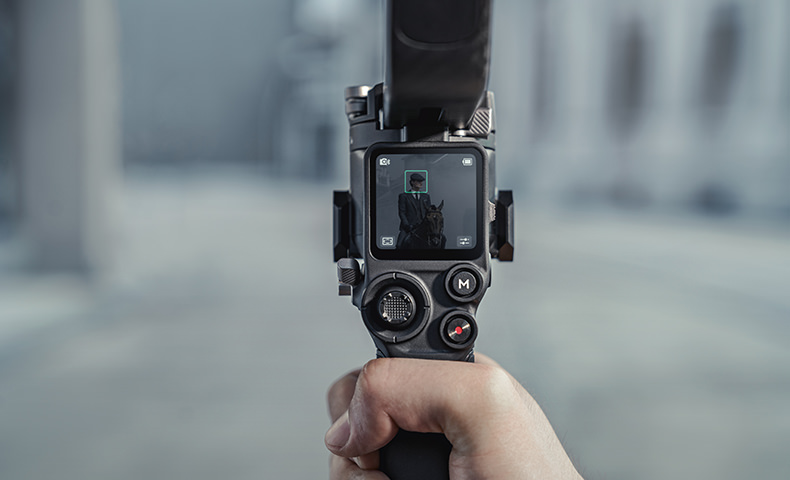

ActiveTrack Pro

Tracking on the Ronin series has never been more accurate or responsive.
The next-generation ActiveTrack Pro can directly read images from the camera built into the LiDAR Range Finder, with no need for the Ronin Image Transmitter (previously known as the Ronin RavenEye Image Transmitter). The LiDAR Range Finder also carries a self-developed chip identical to the one used by Ronin 4D, which boosts the computing power of ActiveTrack Pro by more than 60 times compared to ActiveTrack 3.0 on the Ronin Image Transmitter.

When using ActiveTrack Pro, you can directly monitor or frame the subject on the RS 3 Pro’s OLED touchscreen. [7] The live feed latency is reduced to just 40 ms, 60% lower than that of the Ronin Image Transmitter, allowing for swift tracking, even when the subject is moving fast. With a neural network accelerator, it can identify and track targets, even when they are numerous and at a distance.

Pro-Grade Video Transmission

Quick Mounting

RS 3 Pro can pair with the all-new DJI Transmission to offer a customized shooting solution. The DJI Video Transmitter can be powered directly by RS 3 Pro and mounts conveniently on the bottom via the cold shoe without the need for an additional battery, reducing the burden for handheld setup.

Long-Range Wireless Transmission

O3 Pro Video Transmission supports a 6km/20,000ft [8] video and audio transmission range with ultra-low latency, as well as automatic frequency hopping between 2.4 GHz, 5.8 GHz, and DFS bands, providing crews with an impressively stable and interference-free remote monitoring experience.

Coordinated Shooting

The DJI High-Bright Remote Monitor supports 1080p/60fps live feeds and one transmitter with multiple receivers. In Control mode, two receivers can be used at the same time to collaboratively control RS 3 Pro’s gimbal, focus, and camera parameters for an integrated reception, monitoring, and control experience.

Pro-Grade Wireless Control

Gimbal and Focus Control ^[9]

The High-Bright Remote Monitor can be used with Ronin 4D Hand Grips, DJI Master Wheels, or DJI Force Pro to control the gimbal and focus precisely.

It is also equipped with a built-in gyroscopic sensor that can turn the remote monitor into a standalone motion controller for RS 3 Pro without additional accessories to achieve more complex camera movements from a moving vehicle or with a jib.

Seamless Wireless Camera Control

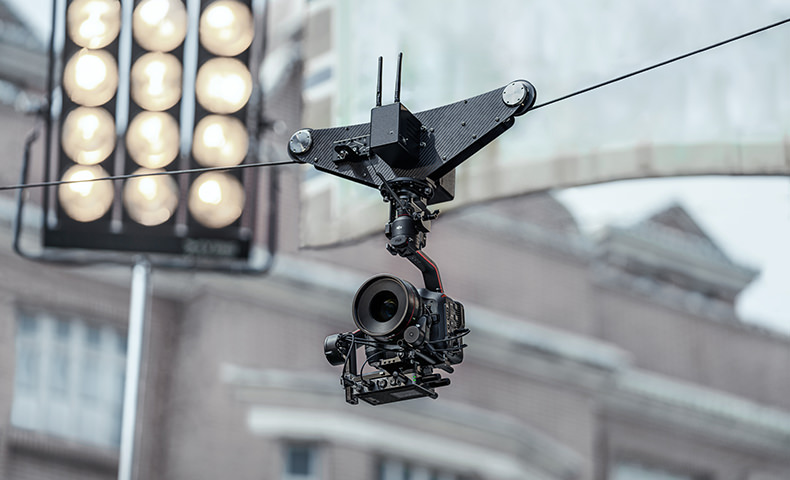

When RS 3 Pro is mounted to carriers like a jib, cable cam, or a vehicle suction cup mount, Mirror Control mode unlocks seamless wireless control from anywhere on set. This mode allows direct control of the core menu operations for Sony mirrorless cameras [5] via a remote monitor, all without having to detach your camera.

Pro-Grade Ecosystem

Extensive Expandability

With dual RSA/NATO ports and a battery port, RS 3 Pro can be connected to various accessories such as the Twist Grip Dual Handle, Tethered Control Handle, and the new DJI Briefcase Handle to flexibly meet a variety of shooting requirements.

Solutions for Any Scenario

With DJI RS SDK protocol, third-party manufacturers and individual developers can now create customized solutions for RS 3 Pro. Whether it’s filming from a moving vehicle, with a jib or Steadicam, or from a cable cam or slider, RS 3 Pro provides you with comprehensive shooting solutions and greater creative possibilities.

Ronin Image Transmitter ^[10]

RS 3 Pro supports two official video transmission solutions. Besides DJI Transmission, the Ronin Image Transmitter provides HD live feeds, remote gimbal and camera control, ActiveTrack 3.0, Force Mobile, and many other features, bringing integrated monitoring and control to independent videographers and small crews.

New Briefcase Handle ^[10]

The redesigned briefcase handle is foldable for convenient storage, and comes with a new ergonomic handle to make it easier and faster to install and switch to Briefcase mode. The built-in cold shoe mount and 1/4"-20 mounting holes can connect to external monitors for shooting assistance, making low-angle camera movements more intuitive.

Footnotes:

1. Only available with combo purchase.
2. Check the camera compatibility list for detailed information on supported camera models.
3. Required for use with the LiDAR Range Finder (RS) or Ronin Image Transmitter.
4. Tested in an environment without bright lights. During normal shooting conditions, the detection distance of human subjects is 7 meters.
5. Check the spec sheet for detailed information on supported camera models.
6. Calibration of manual lenses is still required when using with RS 3 Pro.
7. Only applicable in bright environments with subjects that have distinguishable characteristics and/or surface textures.
8. Measured in Control mode with FCC compliance in a standard, interference-free environment.
9. The High-Bright Remote Monitor, Ronin 4D Hand Grips, DJI Master Wheels, and DJI Force Pro are all sold separately.
10. Available through a combo purchase or separate purchase.

Product Specifications

Peripheral

Accessory Port
RSA/NATO Ports
1/4""-20 Mounting Hole
Cold Shoe
Video Transmission/Focus Motor Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)

Battery
Model: BG30-1950 mAh-15.4V
Type: LiPo 4S
Capacity: 1950 mAh
Energy: 30 Wh
Max. Runtime: 12 hours[1]
Charging Time: Approx. 1.5 hours (using 24W charger; it is recommended to use QC 2.0 or PD protocol chargers)
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)

Connections
Bluetooth 5.0
Charging Port (USB-C)

Ronin App Requirements
iOS 11.0 or above
Android 7.0 or above

Languages Supported by the Touchscreen
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance

Tested Payload
4.5 kg (10 lbs)

Maximum Controlled Rotation Speed
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s

Mechanical Range
Pan axis: 360° continuous rotation
Roll axis: -95° to +240°
Tilt axis: -112° to +214°

Mechanical & Electrical Characteristics

Operating Frequency
2.400-2.484 GHz

Mechanical & Electrical Properties

Bluetooth Transmitter Power
<8 dBm

Operating Temperature
-20° to 45° C (-4° to 113° F)

Weight
Gimbal: Approx. 1,143 g (2.51 lbs)
Grip: Approx. 265 g (0.58 lbs)
Extended Grip/Tripod (Metal): Approx. 226 g (0.49 lbs)
Upper and Lower Quick-Release Plates: Approx. 107 g (0.23 lbs)

Gimbal Dimensions
Folded: 268×276×68 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 415×218×195 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)

DJI Ronin Image Transmitter

Connections
Power/Communication Port (USB-C)
HDMI Port (Mini HDMI)
RSS Camera Control Port (USB-C)

Expansion Port
Cold Shoe

Operating Frequency
2.400-2.484 GHz
5.725-5.850 GHz

Weight
126 g (0.27 lbs)

Dimensions
Length: 82×63×24 mm (L×W×H)

Transmitter Power (EIRP)
2.400-2.484 GHz:
<25 dBm (FCC)
<20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
<25 dBm (FCC/SRRC)
<14 dBm (CE)

Battery
Capacity: 2970 mAh
Compatible Charger: 5 V/2 A
Charging Time: Approx. 2.5 hours
Operating Time: Approx. 3.5 hours

Transmission Range
200 m (SRRC/FCC)[2]
100 m (CE)[2]

Latency
60 ms

Operating Current/Voltage
900 mA/3.7 V

Operating Temperature
0° to 45° C (32° to 113° F)

DJI LiDAR Range Finder (RS)

Accessory Port
Cold Shoe
1/4"-20 Mounting Hole
USB-C Port
USB-C Power/CVBS/CAN Data Port

Image Sensor
Resolution: 448×298 on the RS touchscreen
FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
Frame Rate: 30fps
Focal Length: 30mm Equivalent

ToF Sensor
Resolution: 240×180
Sensing Range: 0.5 to 14 m[3]
FOV: 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
Frequency: 25 Hz
Focal Length: 30mm equivalent
Distance Error: 1%

Machine Learning
Frequency: 30 Hz
Tracking Subjects: Can recognize up to five subjects at the same time, and choose one to follow
Smart Object Identification: Human face, head, and body

Electrical Properties
Power Consumption: 6.8 W
Input: 7 to 16 V

Operating Temperature
-20° to 45° C (-4° to 113° F)

Mechanical Properties
Dimensions: 66×57×24 mm (L×W×H)
Weight: Approx. 130 g (0.28 lbs)
Mounting Plate Height: 30 mm

Lenses that Do Not Need Calibration
DZOFILM Vespid Cyber 35 mm
DZOFILM Vespid Cyber 50 mm
DZOFILM Vespid Cyber 75 mm

Notes
1. Measured with the equipment in a level and stationary state, the gimbal balanced, three axes in an active state, and the battery only powering the gimbal.
2. In open environments free of obstructions or interference.
3. In environments with a brightness level of 80,000 lux or below.

In the box

Carrying Case × 1
Gimbal × 1
BG30 Grip × 1
USB-C Charging Cable (40 cm) × 1
Lens-Fastening Support (Extended) × 1
Extended Grip/Tripod (Metal) × 1
Quick-Release Plate (Arca-Swiss/Manfrotto) × 1
Briefcase Handle × 1
Lower Quick-Release Plate (Extended) × 1
Phone Holder × 1
Focus Motor (2022) × 1
Focus Motor Rod Mount Kit Combo × 1
Focus Gear Strip × 1
Ronin Image Transmitter × 1
USB-C Power Cable (20 cm) × 1
Mini-HDMI to HDMI Cable (20 cm) × 1
Mini-HDMI to Mini-HDMI Cable (20 cm) × 1
Mini-HDMI to Micro-HDMI Cable (20 cm) × 1
Multi-Camera Control Cable (USB-C, 30 cm) × 2
Lens-Fastening Strap × 1
Hook-and-Loop Strap × 2
Screw Kit × 1

WHY BUY FROM US?

By buying from Ferntech, you'll have the confidence that you are dealing directly with New Zealand's leading drone experts. Our staff are knowledgable drone pilots who offer expert advice, trusted support and superior specialist service. Only through us will you receive a full New Zealand warranty, phone and email support, and access to our certified Repairs Centre with DJI-qualified drone technicians. And we guarantee that we will have the best prices on the market — if not let us know and we will match any price (conditions apply).

Warranty Details

Intelligent Features

How do I enable SuperSmooth mode on DJI RS 3 Pro?
Tap the gimbal calibration icon on the touchscreen of the gimbal and enable SuperSmooth mode*. Tap Start Calibration to perform calibration for better stabilization.
* Before using SuperSmooth mode, make sure you have installed the lens-fastening support.

What are the differences between SuperSmooth and the normal stabilization of DJI RS 3 Pro?
SuperSmooth mode was developed for fast-moving scenarios. It increases the torque of DJI RS 3 Pro to further enhance stabilization, delivering stable footage in more dynamic and strenuous shooting scenarios.

How many subjects can DJI RS 3 Pro follow using ActiveTrack?
One.

When using ActiveTrack on DJI RS 3 Pro, how do I adjust composition?
You can use the joystick on the grip to control the gimbal and compose your shot.

Gimbal

What are the differences between DJI RS 3 Pro and DJI RS 2?
Inheriting the design language of DJI RS 2, DJI RS 3 Pro features extended carbon fiber axis arms, new automated axis locks, a gimbal mode switch, Bluetooth shutter control, as well as a 1.8-inch full-color OLED touchscreen, making shooting more efficient and convenient. The optimized structure of RS 3 Pro ensures that its weight remains at 1.5 kg (this weight includes the gimbal, battery grip, and dual-layered quick-release plates), while its load capacity is a robust 4.5 kg. In addition, DJI RS 3 Pro is equipped with the 3rd-Gen RS Stabilization Algorithm that supports LiDAR focusing and O3 Pro video transmission technologies, delivering an integrated receiving, monitoring, and control experience that facilitates coordinated shooting.

How do I activate DJI RS 3 Pro?
Follow the steps below to activate the device:
1. Press and hold the power button to power on the gimbal.
2. Enable Bluetooth on your mobile device.
3. Launch the Ronin app and register or log in with your DJI account. Select DJI RS 3 Pro on the device list, enter the default password: 12345678, and follow the on-screen instructions to activate DJI RS 3 Pro.*
4. DJI RS 3 Pro will enter sleep mode after successful activation. Press the power button once to exit sleep mode before use.
* During activation, make sure the mobile device is connected to the internet.

How do I update the firmware of DJI RS 3 Pro?
"Follow the steps below to update the firmware:
1. Press and hold the power button to power on the gimbal.
2. Launch the Ronin app, tap Connect to Gimbal, and select your DJI RS 3 Pro on the device list.
3. When new firmware is available, there will be a prompt on the top of the Ronin app main page that says ""Update Now.""* Simply tap it. There will be a prompt to indicate that the update has been successful. Tap Exit to complete the update.
4. If the update fails, restart the device and try again.
* Do not power off the gimbal or exit the app until the firmware update is complete.

Is DJI RS 3 Pro waterproof?
No. Ports on DJI RS 3 Pro are not waterproof or dustproof. Please stay away from water and dust during use to avoid damaging the device.

What material is DJI RS 3 Pro made of?
DJI RS 3 Pro is primarily composed of aluminum alloy and carbon fiber.

How do I power on/off DJI RS 3 Pro?
Press and hold the power button to power the gimbal on/off.

Which cameras and lenses are supported by DJI RS 3 Pro?
Please refer to the Ronin Series Compatibility Search: https://www.dji.com/support/compatibility

Does DJI RS 3 Pro have any key shortcuts?
1. Power Button
Press and hold: Power on/off;
Press once: Sleep/wake.
2. Trigger
Press and hold: Enter Lock mode;
Press twice: Recenter the gimbal;
Press three times: Enter Selfie mode.
3. Front Dial
Electronic focusing (default setting)
4. Camera Control Button
Press halfway: Autofocus;
Press once: Start/stop recording;
Press and hold: Take a photo.
5. Joystick
Push up or pull down: Control tilt axis movement (by default);
Push left or right: Control pan axis movement (by default)
6. M Button
Press once: Can be customized to lock/unlock the touchscreen, take a photo, or LiDAR AF/MF;
Press and hold: Enter Sport mode;
Press and hold while pressing the Trigger twice: Lock Sport mode. Repeat to exit;
Press and hold the M Button and Trigger: Start auto calibration.

How do I use the automated axis locks on DJI RS 3 Pro?
When the gimbal is powered off, press and hold the power button, and the three axes unlock and expand automatically for use within just a few seconds. Press and hold the power button again to lock the axes and power off the gimbal. During use, press the power button once, and the axes automatically lock and enter sleep mode. Press once again to unlock and wake.

How do I enable different gimbal modes for DJI RS 3 Pro?
With the new gimbal mode switch, you can quickly change between Pan Follow, Pan and Tilt Follow, and FPV modes. The FPV switch is also customizable to 3D Roll 360, Portrait, or Custom.

What is the max tested payload supported by DJI RS 3 Pro?
Approx. 4.5 kg/10 lbs.

Camera Control

What cameras can be controlled by the Bluetooth shutter of DJI RS 3 Pro?
Please refer to the Ronin Series Compatibility Search: https://www.dji.com/support/compatibility

How do I enable Bluetooth shutter control on DJI RS 3 Pro?
Swipe down the main page of the built-in touchscreen, tap the Bluetooth icon, and DJI RS 3 Pro will start searching for Bluetooth signals of surrounding devices. Select the Bluetooth name of your camera. Certain camera models require a linking password. After successful connection, the Bluetooth icon will turn blue. For detailed steps, watch the tutorial Connecting DJI RS 3/RS 3 Pro.

What functions can be controlled by Bluetooth shutter on DJI RS 3 Pro ?
Press halfway to autofocus, press once to start recording, and press and hold to take a photo.

Accessories

What accessories can be used interchangeably among DJI RS 3 Pro, DJI RS 3, DJI RS 2, and DJI RSC 2?
Please check the appendix: DJI RS Series Universal Accessories List

How do I mount DJI RS 3 Pro on a car, jib, or third-party slider?
Use the Ronin Expansion Base Kit to mount DJI RS 3 Pro.

How do I control DJI RS 3 Pro remotely?
There are three ways to control DJI RS 3 Pro remotely:
1. Pair DJI RS 3 Pro with DJI Transmission to control the gimbal and camera focus remotely with Ronin 4D Hand Grips, DJI Master Wheels, or DJI Force Pro. The DJI High-Bright Remote Monitor can be used as an independent motion controller to remotely control the gimbal.
2. Connect DJI RS 3 Pro to the DJI R Focus Wheel and DJI Pro Wireless Receiver. Link the DJI Pro Wireless Receiver with DJI Master Wheels or DJI Force Pro to remotely control the gimbal via DJI Master Wheels or DJI Force Pro.
3. When using DJI RS 3 Pro with the DJI Ronin Image Transmitter, use Force Mobile or the virtual joysticks in the Ronin app to control the gimbal remotely.

Where are calibration profiles of manual lenses stored? Can I delete them?
Lens calibration profiles are stored in the DJI RS Focus Motor (2022). After connecting the DJI LiDAR Range Finder (RS) and DJI RS Focus Motor (2022) to the gimbal, you can delete the files on the lens calibration page on the built-in touchscreen.

How many calibration profiles can be stored?
Three at most.

How do I update the firmware of the DJI LiDAR Range Finder (RS)?
1. Use a USB-C cable to connect the DJI LiDAR Range Finder (RS) with a computer. Launch DJI Assistant 2 (Ronin Series), and log into your DJI account.
2. Click on the LiDAR range finder icon to enter the firmware update page, and wait for the firmware list to be updated.
3. Select the firmware version you need and click Update. Then, wait for the firmware to be downloaded. After the download, the DJI LiDAR Range Finder (RS) will automatically perform the update.

Can the DJI LiDAR Range Finder (RS) be used with autofocus lenses?
No. It can only work with manual lenses.

When do I need to use the DJI LiDAR Control Cable?
When the DJI LiDAR Range Finder (RS) is connected to DJI RS 3 Pro via the multi-camera control cable, if the display becomes grainy or flickers, use the DJI LiDAR Control Cable to connect the DJI LiDAR Range Finder (RS) with DJI RS 3 Pro.

Battery

How long is the runtime of the DJI RS 3 Pro battery grip?
Up to 12 hours with equipment in a level and stationary state, the gimbal balanced, three axes in an active state, and the battery only powering the gimbal.

How long does it take to fully charge the DJI RS 3 Pro battery grip?
Approx. 1.5 hours.*
* Measured with a 24W charger. It is recommended to use QC 2.0 or PD protocol chargers.

Can DJI RS 3 Pro be used while charging?
Yes.

Are the battery grips of DJI RS 3 Pro, DJI RS 3, and DJI RS 2 interchangeable?
The battery grip of DJI RS 3 Pro is not interchangeable with that of DJI RS 3, but it is interchangeable with DJI RS 2.
