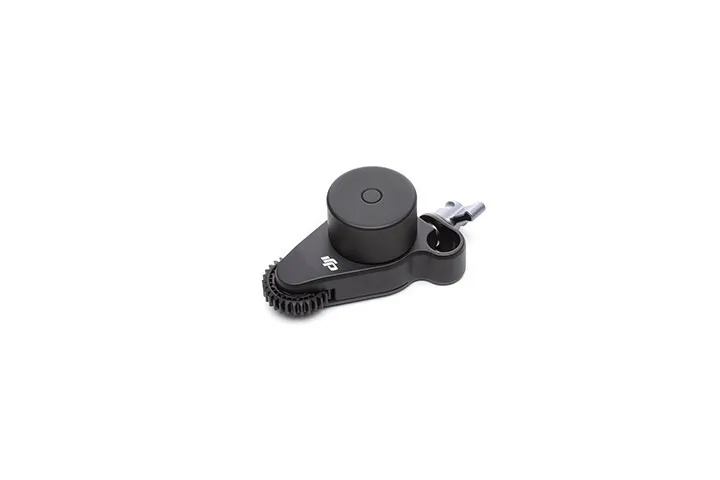

DJI RS Focus Motor (2022)

Features

The next-generation Focus Motor (2022) provides torque three times stronger (up to 1 N·m), and noise is reduced by 50%. This delivers a smoother focusing experience and avoids affecting audio recording. It also adopts a quick-release structure, allowing it to be assembled easily without any tools for faster use.

Compatibility

DJI RS 3 Pro
DJI RS 3
DJI RS 2
DJI RSC 2

Product Specifications

Structure: Weight: 108 g

Dimensions: 80×50×36 mm (L×W×H)

Rod: 12 mm

Specifications:

Max Torque: 1.0 N·m (8 V) Max Speed: 180 rpm (8 V)

Electrical Properties:

Free Current: 50 mA (5 V) Stall Current: 2.8 A (8 V)

Operating Voltage: 6 to 17.6 V

Noise: 45 dB

Gear: Number of Teeth: 30 Module: 0.8

Operating Temperature: -20° to 45° C (-4° to 113° F)

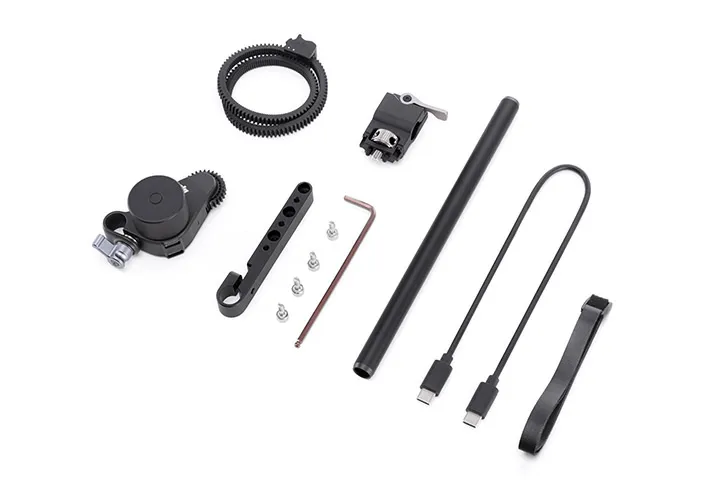

In the box

Focus Motor (2022) × 1

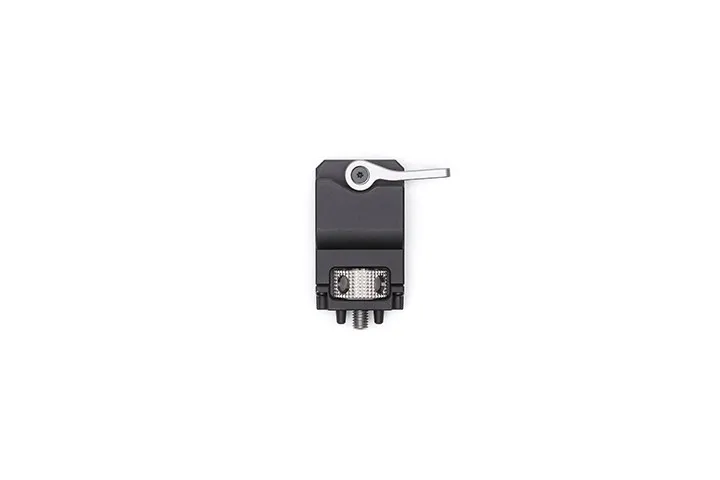

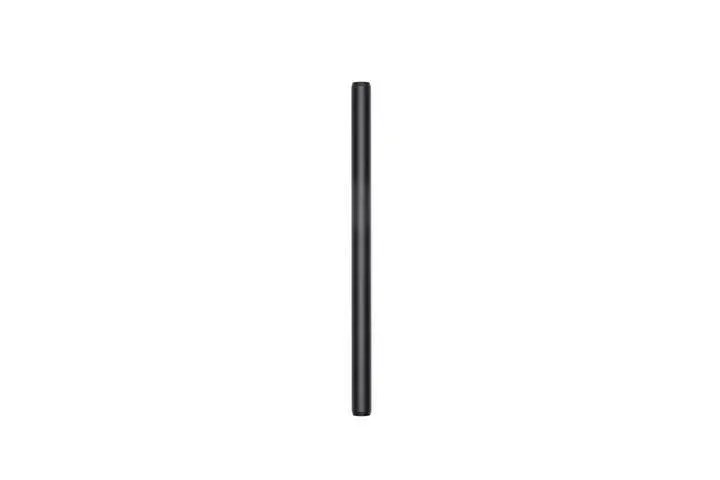

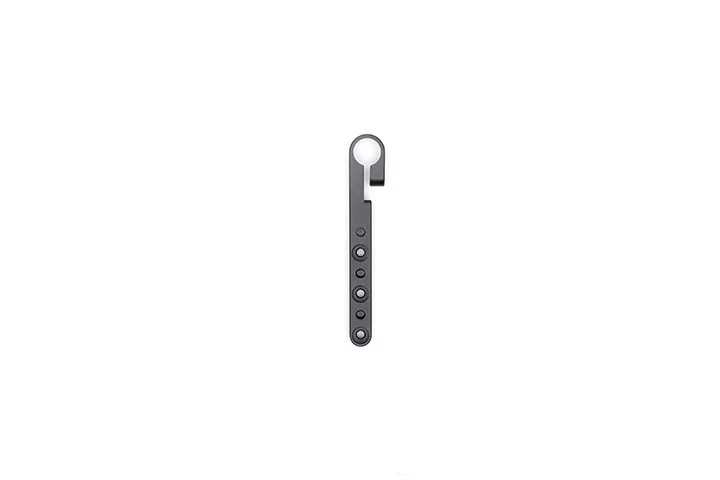

Focus Motor Rod Mount Kit Combo × 1

Focus Gear Strip × 1

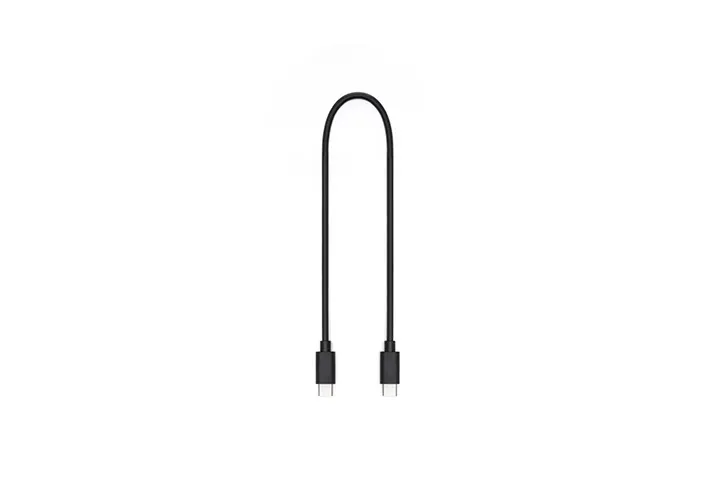

Multi-Camera Control Cable (USB-C, 30 cm) x 1

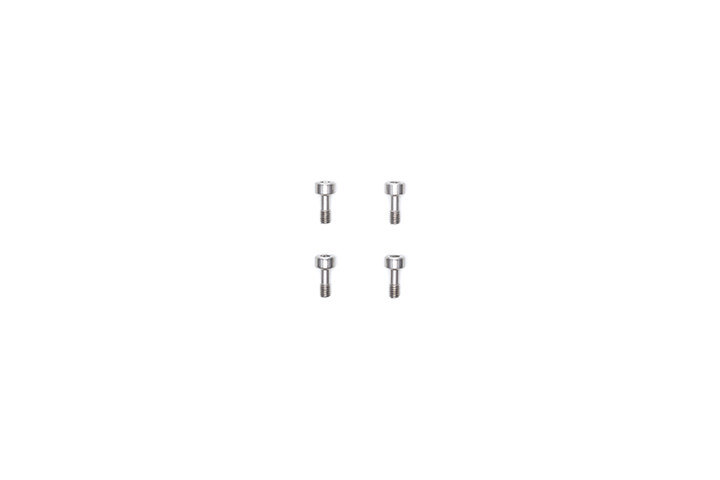

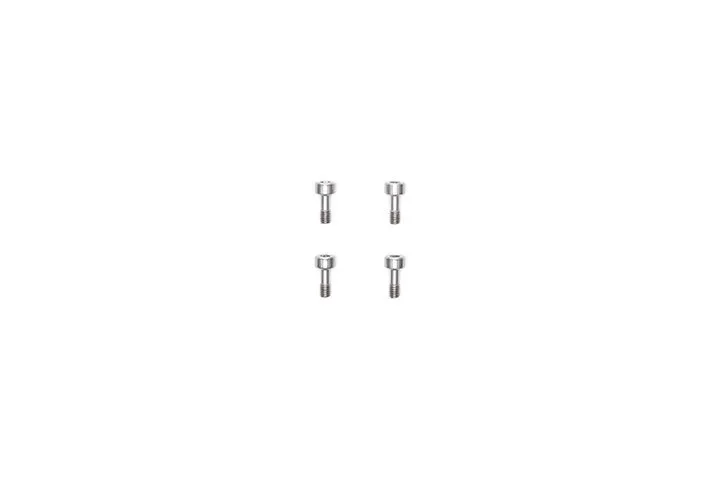

M4 Screw (10 mm) × 4

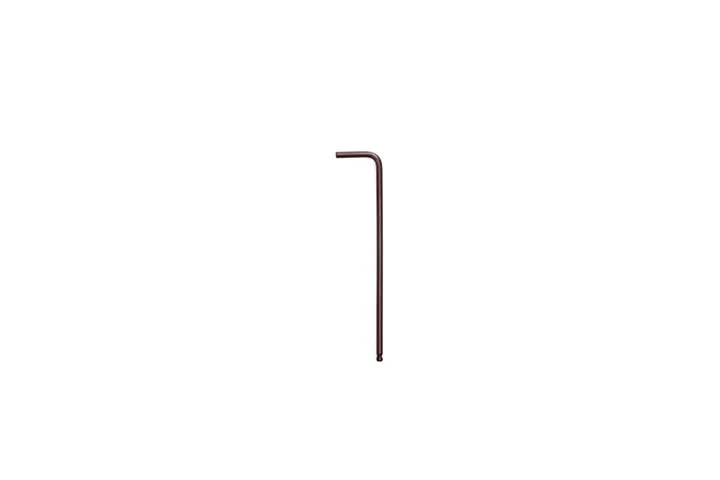

Allen Wrench (3 mm) × 1

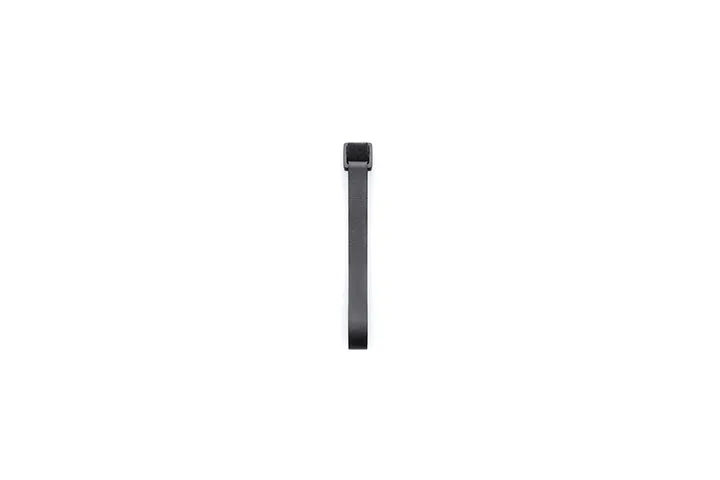

Lens-Fastening Strap × 1
