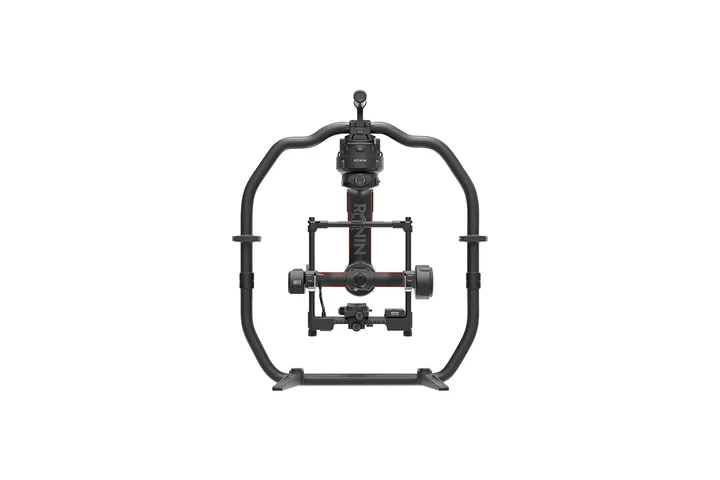

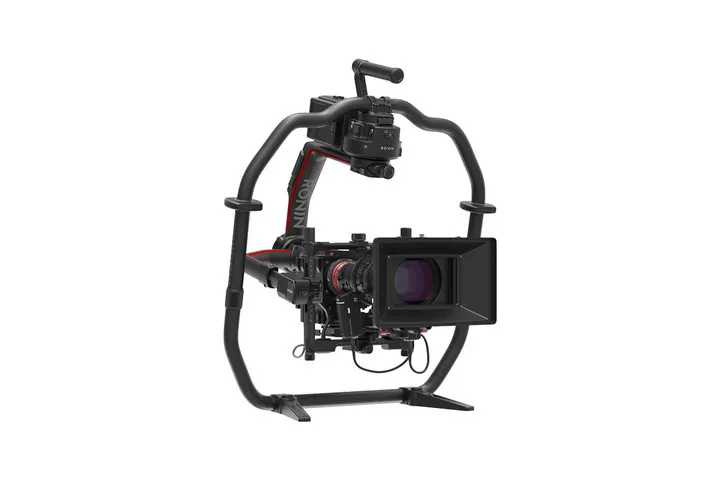

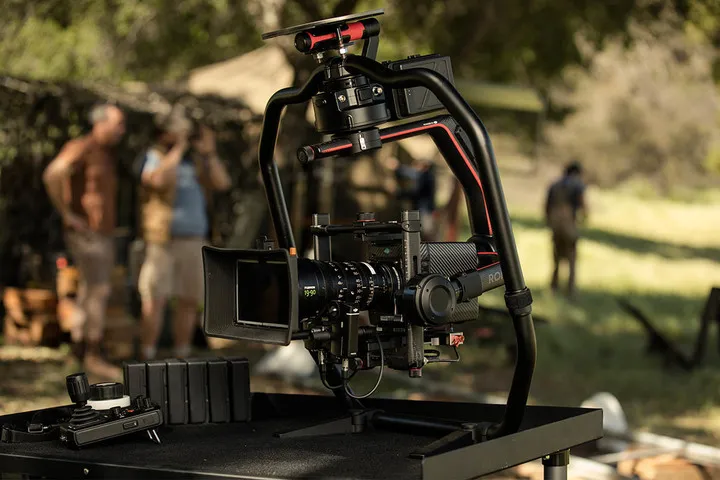

DJI Ronin 2 Professional Combo

Features

Powerful
Ronin 2 exists to let filmmakers capture the scene they see in their mind. Upgraded high torque motors allow it to support a wider range of cameras, resist high winds and G-forces caused when mounted to a car and keep it moving smoothly in flight.

Versatility
A newly designed detatchable Grip allows Ronin 2 to stand up on its own and is easily separated when the lower part of the hand grip is not needed. Ronin 2 is also highly compatible with cable cams, drones, cranes, Steadicams and more.

Easy
The simplicity of Ronin has been amplified with Ronin 2, making setup and use easier than ever. Everything, from mounting cameras to balancing and tuning, powering accessories and transportation has been tweaked and refined for ease and speed.

Intelligent
Enhanced intelligence means filmmakers can get shots with Ronin 2 that would once have needed specialist expertise or additional equipment, from total smoothness control to studio-oriented smart features.

Integrated
Power systems are now tightly integrated into Ronin 2, capable of powering its motors and the attached camera and accessories without dangling cables or multiple power systems. As it uses a dual battery system, filmmakers can hot swap to keep the camera and accessories powered and maximize shooting time.

Reliable
Every element of Ronin 2 has been designed to maximize reliability, from materials to the splash-proof enclosed motor design, cable management, and redundancy. All of this creates a system that shines in the most demanding of shooting environments.

Highlights

Most versatile professional 3-axis stabilization system
Monocoque carbon fiber frame design
High torque motors supporting cameras up to 30 lbs
Fine tune balancing for precision control
Self-heating hot-swappable batteries
On-board power for camera and accessories
Integrated camera controls
Built-in GPS & compatible with DJI A3 Flight Controller

Compatible Cameras

RED Dragon
ARRI Alexa Mini
Black Magic Ursa Mini
Canon C300
Sony FS7

Product Specifications

General

Operation Modes:
Underslung Mode
Upright Mode
Briefcase Mode
Handheld, Car Mount, Aerial & Tripod Mode

Axis Modes:
3-axis
Pan-Lock
Roll-360 (enabled through firmware update)

Built-In Functions

Built-in, independent IMU module
DJI Advanced 32-Bit ARM Processor
DJI Specialized Gimbal Drive Motors with Encoders
Dual Battery System
Bluetooth Module
D-Bus Receiver Supported
2.4 GHz/5.8 GHz Receiver
Temperature Sensors
Built-in Touch Panel
Built-in GPS
USB Type-C Connection
Power and Video Signal through Slip Ring

Mechanical and Electrical Characteristics

Working Current Static current: 300 mA (@22.8 V)
Dynamic current: 500 mA (@22.8 V)
Locked motor current: Max 15 A (@22.8 V)
Run Time: 8 hours
2.5 hours (when powering gimbal, camera and accessories at the same time)
Operating Temperature: -4°F ~ 122°F (-20°C ~ 50°C)
Weight Including handle bar: 14 lb (6.4 kg)
Excluding handle bar: 11 lb (5.0 kg)
Gimbal Dimensions Excluding handle bar: 350 mm (W) x 416 mm (D) x 530 mm (H)
Including handle bar: 630 mm (W) x 416 mm (D) x 720 mm (H)

Peripheral

Camera Tray Dimensions Maximum depth from the center of gravity on camera base plate: 245 mm
Maximum height measured from top of the camera base plate: 165 mm
Maximum width: 180 mm
Accessory Power Connections: 14.4 V x 4 Camera Cage (Combined 8 A), 14.4 V x 2 Pan Motor (Combined 4 A), 14 V x2 P-Tap (8 A)
GCU Input Power Intelligent Battery: 4280 mAh-22.8 V
Connections 2.4 GHz/5.8 GHz Remote Control, Bluetooth 4.0, USB Type-C
PC Assistant Software Requirements: Windows 7 or above; Mac OS X 10.11 or above
Mobile Assistant Software Requirements: iOS 9 or above; Android 4.4 or above

Working Performance

Load Weight: (Reference Value) 30 lbs (13.6 kg)
Angular Vibration Range: ± 0.02°
Maximum Controlled Rotation Speed Pan axis: 360°/s
Tilt axis: 360°/s
Roll axis: 360°/s
Mechanical Endpoint Range Pan axis control: 360° continuous rotation
Tilt axis control: ±135°
Roll axis control: ±220°
Controlled Rotation Range Pan axis control: 360° continuous rotation
Tilt axis control: ±135°
Roll axis control: ±30°

In the box

Ronin 2 Gimbal x 1
Grip x 1
Remote Controller x 1
TB50 Intelligent Battery x 2
Dual TB50 Battery Mount x 1
Battery Charger x 1
Quad Charging Hub x 1
Battery Charger Power Cable x 1
Ronin 2 Power Hub x 1
Camera Top Cross Bar x 1
Camera Base Plate x 1
Accessory Mount x 1
15mm Rod x 2
15mm Focus Rod Mount x 1
Ronin 2 Universal Mount x 1
Top Mounting Block x 1
Motion Block x 1
Water Tight Protective Case x 1
ARRI Alexa Mini Power Cable x 1
ARRI Alexa Mini Start/Stop Cable x 1
RED Power Cable x 1
RED RCP Control Cable x 1
Ronin 2 Power Cable x 1
2-pin Power Cable x 1
DC Power Cable x 1
Triple P-TAP breakout box x 1
SDI IN Cable x 1
SDI OUT Cable x 1
USB Type-C Data Cable x 1
UART to D-BUS Cable x 1
Hex Tool x 1

WHY BUY FROM US?

By buying from Ferntech, you'll have the confidence that you are dealing directly with New Zealand's leading drone experts. Our staff are knowledgable drone pilots who offer expert advice, trusted support and superior specialist service. Only through us will you receive a full New Zealand warranty, phone and email support, and access to our certified Repairs Centre with DJI-qualified drone technicians. And we guarantee that we will have the best prices on the market — if not let us know and we will match any price (conditions apply).

Warranty Details

Gimbal Mechanics: 12 Months
Gimbal Motors: 6 Months
Remote Controller: 12 Months
Smart Battery: 3 Months
Battery Charger: 6 Months
Thumb Controller: 12 Months

General

What are the main differences between Ronin and Ronin 2?

Like the Ronin, the Ronin 2 was designed for handheld camera applications but is now more versatile with aerial, car mounting, cable and Steadicam capabilities. Higher torque motors give the Ronin 2 a larger payload and new GPS algorithms allow it to perform smoothly in high-stress environments. Along with many other improvements, the Ronin 2 brings a whole new level of stabilization to Ronin users.

What is the Ronin 2’s maximum payload?

The Ronin 2’s maximum payload is approximately 30lbs (13.6kg). Through our own extensive testing, the Ronin 2 can handle an Arri Alexa Mini with a Canon CINE-SERVO 17-120mm lens comfortably.

How much does the Ronin 2 weigh?

The Ronin 2 weighs roughly 9lbs (4.2kg).

Overall, is stabilization on the Ronin 2 higher-performing and more accurate than the Ronin/Ronin-M/Ronin-MX?

Yes. The Ronin 2 was created with stronger axis motors and its SmoothTrack algorithm has been enhanced for a smoother performance. A new GPS module enables it to perform exceptionally in high G-force situations.

Are all three previous modes of operation still available on the Ronin 2?

Yes. All three previous modes of operation — upright, underslung, and briefcase — are available with the Ronin 2. What’s new is that users can now transition between upright and underslung modes without changing the position of the camera. Users can now lock the yaw motor for 2-axis mode while using the Ronin 2 with a Steadicam. Now you can lock each axis for an easier setup, better balancing, and safer transportation.

How does the new yaw axis quick release differ from previous Ronins?

The new yaw axis quick release mount in Ronin 2 means a faster set up in different scenarios, enabling an easier transition from handheld to car and aerial applications.

Does the Ronin 2 come with a dedicated stand?

No. However, the Ronin 2’s new hand and ring grip design come with retractable feet so that the whole gimbal system can stand upright on a flat surface. The grip is detachable and can be separated when standing is not required for shooting or transportation.

Battery

What kind of batteries does the Ronin 2 use?

The Ronin 2 uses the same batteries as the Inspire 2.

Are Ronin series batteries compatible with the Ronin 2?

No. The Ronin 2 is only compatible with Ronin 2 or Inspire 2 batteries and is NOT compatible with any Ronin series batteries.

How long is the battery life of Ronin 2?

When powering the Ronin 2 and a RED Dragon camera simultaneously, Ronin 2 batteries will last up to 2.5 hours.

How long does it take to fully charge the battery?

When using the Inspire 2 charging hub, it will take approximately 90 minutes to fully charge both batteries.

What is a hot-swappable battery?

A hot-swappable battery eliminates power-related downtime to ensure maximum available power. For example, when shooting a video with batteries at low power, hot swappable batteries allow you to change one of the batteries without turning off the camera system, gimbal, or accessories. Hot-swappable batteries thus allow you to shoot continuously and uninterrupted.

Can I use the Ronin 2 battery with third party products like monitors?

Yes. The battery is designed with a P-TAP port that allows you to power your accessories with industry standard power cables.

Camera

What cameras are compatible with Ronin 2?

Ronin 2 is compatible with a large number of cameras. The biggest we’ve tested so far is the Arri Alexa Mini with a Canon CINE-SERVO 17-120mm lens.

Do I have full control on the cameras mounted on Ronin 2?

For selected cameras, user can control its settings such as ISO, frame rate, resolution or start/stop thorough our new camera control module.

What is the largest lens I can mount on Ronin 2?

The largest lens tested on Ronin 2 with an Alexa Mini weighed about 6.6lbs (3kg). But the largest size of lens varies based off different cameras.

Control

Does Ronin 2 come with a remote controller?

Yes. The new remote controller is smaller than before with a more functional joystick. It also has dual control frequency bands 2.4 GHz and 5.8 GHz.

What are the main differences between this and previous remote controllers?

Users can now change the speeds of the joystick directly on the remote controller by tweaking the knobs, without changing any settings in the gimbal assistant app.

What is the control range of Ronin 2?

Unobstructed control range is about 1 km.

What is the new gimbal assistant app? What can I do with it?

The new gimbal assistant app has all the fundamental gimbal parameters such as SmoothTrack settings, motor stiffness, and gimbal operation modes. Included are new intelligent features that are studio-oriented such as Panorama, Timelapse and direct control of supported cameras.

What is the built-in screen for?

The Ronin 2’s built-in touch screen provides the convenience of changing gimbal settings without using a mobile device directly on the gimbal. With the built-in screen, users are now able to change most of the settings they see on the new gimbal assistant app.

Can I use third-party remote controllers with Ronin 2?

Yes, you can.

Accessories

Are all Ronin series accessories compatible with Ronin 2?

No.
