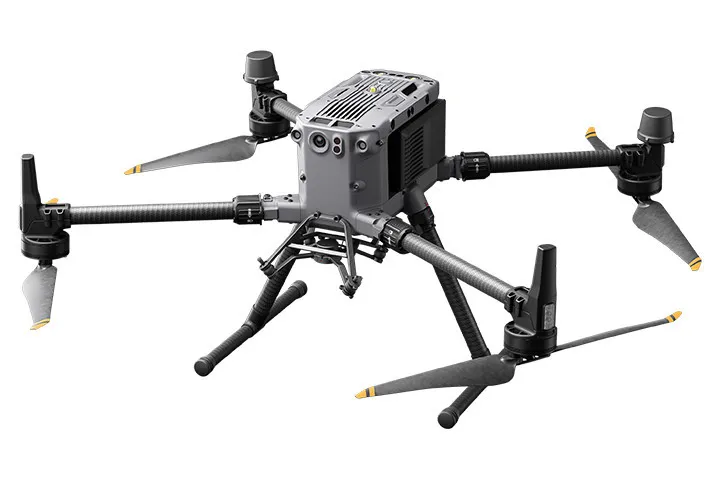

DJI Matrice 350 RTK





Fully Powered to Forge Ahead

An upgraded flagship drone platform, the Matrice 350 RTK sets a new benchmark for the industry. This next-generation drone platform features an all-new video transmission system and control experience, a more efficient battery system, and more comprehensive safety features, as well as robust payload and expansion capabilities. It is fully powered to inject innovative strength into any aerial operation.

55-Min Max Flight Time ^[1]
IP55 Rating ^[2]
DJI O3 Enterprise Transmission
DJI RC Plus
400 Battery Cycles ^[3]
6-Directional Sensing & Positioning
Night-Vision FPV Camera
Multi-Payload Support



Effortlessly Powerful Flight Performance

Built tough, the Matrice 350 RTK features powerful propulsion, enhanced protection rating, and excellent flight performance, allowing it to effortlessly tackle a wide variety of challenges.

55 mins ^[1] Max Flight Time
IP55 ^[2] Protection Rating
2.7 kg Max Payload
7000 m ^[4] Max Flight Altitude
12 m/s Max Wind Speed Resistance
-20° to 50° C (-4° to 122° F) Operating Temperature





Stay Stable With New Transmission System

O3 Enterprise Transmission

Matrice 350 RTK adopts DJI O3 Enterprise Transmission, which supports triple-channel 1080p HD live feeds, ^[5] and a max transmission distance of 20 km. ^[6] Both the aircraft and the remote controller have a four-antenna transceiver system, which can intelligently select the two optimal antennas to transmit signals, while the four antennas receive signals simultaneously. In this way, anti-interference capabilities are significantly improved, and transmission stability is optimized.





New Control Experience

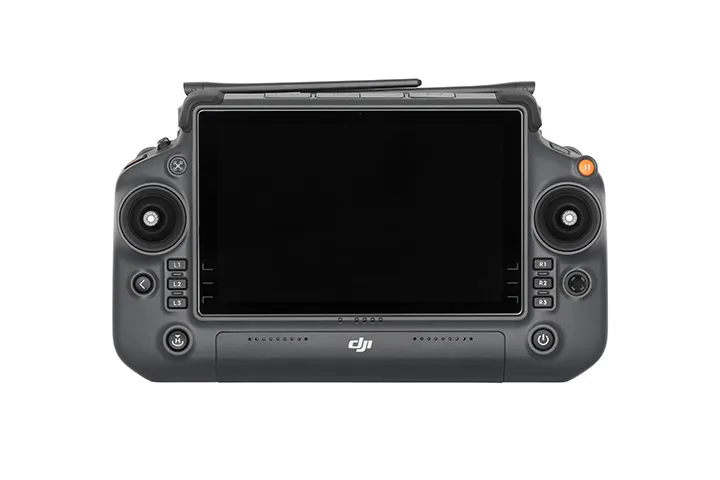

DJI RC Plus

Equipped with a 7-inch high-bright screen, DJI RC Plus supports Dual Operator Mode and comes with a standard WB37 external battery that offers an operating time of up to six hours, meeting various operation needs.





Built Ready for Harsh Environments

IP54 rated, ^[2] DJI RC Plus is dustproof and waterproof to operate reliably in bad weather. The operating temperature is -20° to 50° C (-4° to 122° F), supporting around-the-clock operation even in severely hot or cold environments.





Smooth and Efficient Control

There are several buttons and dials on the front, back, and top of the remote controller for fast operation. Button functions can be customized to fit users’ habits and deliver an intuitive and flexible experience.



DJI Pilot 2

The DJI Pilot 2 app has been further optimized to clearly present the mission type and flight status. Easy and smooth control of the aircraft and payloads facilitates more efficient operation.





Upgraded Battery System

New Dual-Battery System

The Matrice 350 RTK is equipped with a new TB65 dual-battery system, which supports battery hot swapping and allows for multiple flights without powering off. The battery can be charged up to 400 cycles, ^[3] reducing the cost of a single flight.

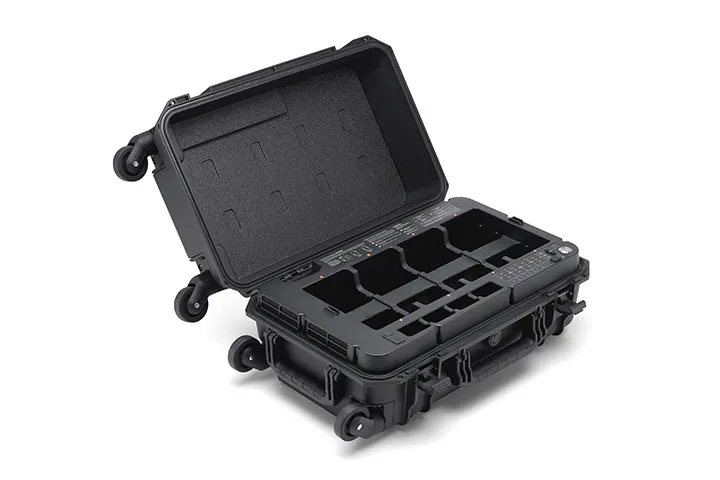

Next-Gen Intelligent Battery Station

The new BS65 Intelligent Battery Station provides a one-stop solution for battery charging, storage, and transport.

Multiple Charging Modes

In Storage Mode, charge the battery to 50%, which is good for long-term storage. In Ready-to-Fly Mode, quickly charge multiple battery sets to 90% to start operation at any time and extend the battery life.

Intelligent Management

When the battery station is connected to DJI RC Plus, the DJI Pilot 2 app will display the battery status and health information. In addition, you can set the number of self-discharge days, update the firmware, export logs, and access other quick operations with one tap.

Effortless Transitions

The battery station is designed with 360°-movement wheels for more convenient transportation and transitions.



Enhanced Flight Safety

Arm Lock Indicator

The Matrice 350 RTK adds a new arm lock detection function to avoid the risk of unlocked arm sleeves, allowing you to focus on flight with more peace of mind.

Night-Vision FPV Camera

Thanks to its excellent night vision capabilities, the FPV camera can clearly present the surroundings and obstacles during flight at night. It works in tandem with the PinPoint function to provide better navigation for safe flight, assisting in more confident operation at night.

6-Directional Sensing & Positioning

The Matrice 350 RTK is designed with a six-directional binocular vision system and an infrared sensing system for six-directional awareness, positioning, and obstacle-sensing capabilities, providing comprehensive protection during flight. ^[7]

CSM Radar ^[8]

With the CSM Radar installed, Matrice 350 RTK can detect subtle obstacles upward or within the horizontal 360° range and avoid them in time. ^[9] The effective detection range is up to 30 m, ^[10] further improving flight safety.

Multi-Layered Redundancy Design

Both the aircraft system and the sensor system of the Matrice 350 RTK adopt a redundancy design to maximumly ensure flight safety, allowing you to cope with harsh operating environments more confidently.





Powerful Payloads ^[8]

The Matrice 350 RTK supports a single downward gimbal, dual downward gimbals, ^[11] and single upward gimbal, ^[11] and has an E-Port open interface. With a max payload capacity of 2.7 kg, the aircraft can carry up to three payloads simultaneously, meeting the needs of different operation scenarios like public safety, inspection, and mapping.

Zenmuse H20 Series

The four-sensor system of zoom camera, wide camera, thermal camera, and laser rangefinder works together, supplemented by advanced intelligent algorithms, to deliver outstanding sensing and imaging performance.

Zenmuse H20N

Zenmuse H20N integrates starlight sensors into its zoom and wide-angle cameras. Pair this with dual zoom thermal cameras and a laser rangefinder, and you have a versatile hybrid payload that rises to the occasion.

Zenmuse P1

Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.

Zenmuse L1

Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a mapping camera. When used with the flight platform, it forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.

Third-Party Payloads

Customized payloads like gas detectors, loudspeakers, and multispectral sensors can be combined with Matrice 350 RTK through DJI Payload SDK to expand application fields.



Intelligent Operation





High-Precision Mapping

Matrice 350 RTK supports Waypoint, Mapping, Oblique, and Linear Flight missions. You can use Terrain Follow ^[12] or Smart Oblique ^[13] for efficient data collection. Together with DJI Terra, you can quickly obtain HD 2D and 3D digital results, enabling high-precision and high-efficiency mapping operation.





Air-to-Ground Coordination

With functions like the high-precision PinPoint and cloud-based real-time mapping, ^[14] the Matrice 350 RTK can link the air, ground, and cloud together. After the aircraft completes image collection, DJI FlightHub 2 can quickly model the operation site and transmit command information to the aircraft and ground operators. Both the remote controller and FlightHub 2 support point, line, surface drawing, and real-time uploading, and can cooperate with the aircraft to livestream the real-time operation view, breaking through communication barriers for air-to-ground collaborative operation.





Automated Precision Inspection

Through Live Mission Recording, the Matrice 350 RTK can generate and store flight route files that can be used at any time to realize automated operation and make repetitive inspection no longer time-consuming or effort-consuming. When using AI Spot-Check, ^[15] the Matrice 350 RTK supports automatic framing and manual adjustment of subjects to improve the accuracy of repeated shooting and the quality of inspection operation.





* Please check and strictly abide by local laws and regulations before flying.
** All data was tested with a production model Matrice 350 RTK in a controlled environment. Actual experience may vary depending on the environment, usage, and firmware version.
*** All videos and images on this page were shot in strict compliance with relevant local laws and regulations.
**** Before use, Matrice 350 RTK must be activated via the DJI Pilot 2 app.

1. Measured with Matrice 350 RTK flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Please pay attention to reminders in the app for the actual usage time.
2. Measured in a controlled environment. The IP rating is not permanently effective and may decrease due to product wear and tear.
3. Up to 400 cycles if the accumulative duration of battery level ≥ 90% is less than 120 days within 12 months.
4. Measured with the 2112 High-Altitude Low-Noise Propellers and the takeoff weight ≤ 7.2 kg.
5. Dual Operator Mode required.
6. Measured with FCC compliance in an unobstructed environment with low interference at a flight altitude of approximately 120 m. Data is for reference only. During your flight, please pay attention to reminders in the app.
7. There are certain blind areas of visual sensing and infrared sensing. Positioning and obstacle-sensing performance may be affected by the flight environment and obstacle characteristics. Please fly with caution.
8. Sold separately.
9. Please enable the radar obstacle avoidance function in the DJI Pilot 2 app and set the aircraft safety distance (> 2.5 m is recommended), and the flight speed should be < 10 m/s.
10. Measured when the radar reflection cross-sectional area of the detection target is ≥ 0.4 m². The effective detection range may vary with the size and material of the obstacle.
11. Gimbal connector is sold separately.
12. This function requires the remote controller to connect to the Internet and download DEM files.
13. This function requires Zenmuse P1.
14. DJI FlightHub 2 required.
15. This function requires the Zenmuse H20 Series payloads.



Product Specifications

Aircraft

Dimensions (unfolded, without propellers)

810×670×430 mm (L×W×H)

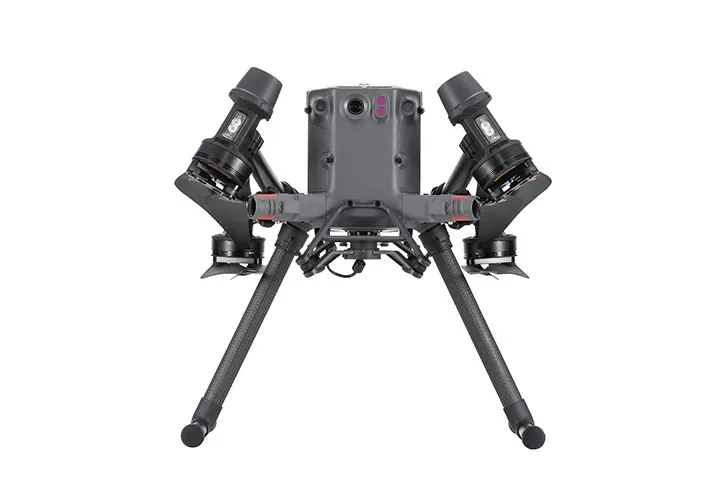

Dimensions (folded, with propellers)

430×420×430 mm (L×W×H)

Diagonal Wheelbase

895 mm

Weight (with single downward gimbal)

Without batteries:

Approx. 3.77 kg



With two TB65 batteries:

Approx. 6.47 kg

Single Gimbal Damper’s Max Payload

960 g

Max Takeoff Weight

9.2 kg

Operating Frequency

2.4000-2.4835 GHz

5.150-5.250 GHz (CE: 5.170-5.250 GHz)

5.725-5.850 GHz



^{In some countries and regions, the 5.1GHz and 5.8GHz frequency bands are prohibited, or the 5.1GHz frequency band is only allowed for indoor use. Please refer to local laws and regulations for more information.}

Transmitter Power (EIRP)

2.4000-2.4835 GHz:

< 33 dBm (FCC)

< 20 dBm (CE/SRRC/MIC)



5.150-5.250 GHz (CE: 5.170-5.250 GHz):

< 23 dBm (CE)



5.725-5.850 GHz:

< 33 dBm (FCC/SRRC)

< 14 dBm (CE)

Hovering Accuracy (with moderate or no wind)

Vertical:

±0.1 m (with vision positioning)

±0.5 m (with GNSS positioning)

±0.1 m (with RTK positioning)



Horizontal:

±0.3 m (with vision positioning)

±1.5 m (with GNSS positioning)

±0.1 m (with RTK positioning)

RTK Positioning Accuracy (RTK FIX)

1 cm + 1 ppm (horizontal)

1.5 cm + 1 ppm (vertical)

Max Angular Velocity

Pitch: 300°/s

Yaw: 100°/s

Max Pitch Angle

30°

^{When in N mode and with the forward vision system enabled: 25°.}

Max Ascent Speed

6 m/s

Max Descent Speed (vertical)

5 m/s

Max Tilted Descent Speed

7 m/s

Max Horizontal Speed

23 m/s

Max Flight Altitude

5000 m

^{When using the 2110s propellers and with the takeoff weight ≤ 7.4 kg.}



7000 m

^{When using the 2112 High-Altitude Low-Noise Propellers and with the takeoff weight ≤ 7.2 kg.}

Max Wind Speed Resistance

12 m/s

Max Flight Time

55 minutes

^{Measured with Matrice 350 RTK flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.}

Supported DJI Gimbals

Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse P1, and Zenmuse L1

Supported Gimbal Configurations

Single downward gimbal

Single upward gimbal

Dual downward gimbals

Single downward gimbal + single upward gimbal

Dual downward gimbals + single upward gimbal

Ingress Protection Rating

IP55

^{The IP rating is not permanently effective and may decrease due to product wear and tear.}

Global Navigation Satellite System

GPS + GLONASS + BeiDou + Galileo

Operating Temperature

-20° to 50° C (-4° to 122° F)



Remote Controller

Screen

7.02-inch LCD touchscreen; resolution: 1920×1200; max brightness: 1200 nits

Weight

Approx. 1.25 kg (without WB37 battery)

Approx. 1.42 kg (with WB37 battery)

Global Navigation Satellite System

GPS + Galileo + BeiDou

Built-in Battery

Type: Li-ion (6500 mAh@7.2 V)

Charging Type: Use the battery station or USB-C fast charger with a max power of 65 W (max voltage of 20 V).

Charging Time: 2 hours

Chemical System: LiNiCoAlO2

External Battery (WB37 Intelligent Battery)

Capacity: 4920 mAh

Voltage: 7.6 V

Type: Li-ion

Energy: 37.39 Wh

Chemical System: LiCoO2

Ingress Protection Rating

IP54

Operating Time

Built-in Battery: approx. 3.3 hours

Built-in Battery + External Battery: approx. 6 hours

Operating Temperature

-20° to 50° C (-4° to 122° F)

Operating Frequency

2.4000-2.4835 GHz

5.725-5.850 GHz

Transmitter Power (EIRP)

2.4000-2.4835 GHz:

< 33 dBm (FCC)

< 20 dBm (CE/SRRC/MIC)



5.725-5.850 GHz:

< 33 dBm (FCC)

< 14 dBm (CE)

< 23 dBm (SRRC)

Wi-Fi Protocol

Wi-Fi 6

Wi-Fi Operating Frequency

2.4000-2.4835 GHz

5.150-5.250 GHz

5.725-5.850 GHz

Bluetooth Protocol

Bluetooth 5.1

Bluetooth Operating Frequency

2.4000-2.4835 GHz

Video Transmission

Video Transmission System

DJI O3 Enterprise Transmission

Antenna

4 video transmission antennas, 2T4R

Max Transmission Distance (unobstructed, free of interference)

20 km (FCC)

8 km (CE/SRRC/MIC)

Max Transmission Distance (with interference)

Low Interference and Obstructed by Buildings: approx. 0-0.5 km

Low Interference and Obstructed by Trees: approx. 0.5-3 km

Strong Interference and Unobstructed: urban landscape, approx. 1.5-3 km

Medium Interference and Unobstructed: suburban landscape, approx. 3-9 km

Low Interference and Unobstructed: suburb/seaside, approx. 9-20 km



^{Measured with FCC compliance in unobstructed environments with typical interference at a flight altitude of approximately 120 m. Data is for reference only. The actual transmission distance may vary depending on the environment’s obstruction and interference conditions. Please pay attention to reminders in the app.}



Vision System

Obstacle Sensing Range

Forward/Backward/Left/Right: 0.7-40 m

Upward/Downward: 0.6-30 m

FOV

Forward/Backward/Downward: 65° (horizontal), 50° (vertical)

Left/Right/Upward: 75° (horizontal), 60° (vertical)

Operating Environment

Surfaces with discernible patterns and adequate lighting (lux > 15)



Infrared Sensing System

Obstacle Sensing Range

0.1-8 m

FOV

30° (±15°)

Operating Environment

Large, diffuse, and reflective obstacles (reflectivity > 10%)



LED Auxiliary Light

Effective Illumination Distance

5 m

Illumination Type

60 Hz, solid glow



FPV Camera

Resolution

1080p

FOV

142°

Frame Rate

30fps

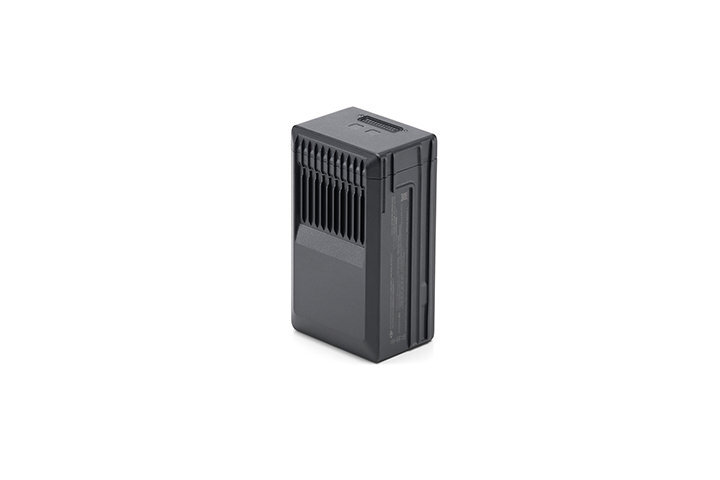

Intelligent Flight Battery

Model

TB65

Capacity

5880 mAh

Voltage

44.76 V

Type

Li-ion

Energy

263.2 Wh

Weight

Approx. 1.35 kg

Operating Temperature

-20° to 50° C (-4° to 122° F)

Ideal Storage Temperature

22° to 30° C (71.6° to 86° F)

Charging Temperature

-20° to 40° C (-4° to 104° F)

^{When the ambient temperature is below 5° C (41° F), the battery will trigger the auto-heating function. Charging at low temperatures may reduce battery life. It is recommended to charge at 15° to 35° C (59° to 95° F).}

Charging Time

With a 220V power supply, it takes approximately 60 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 30 minutes to charge them from 20% to 90%.

With a 110V power supply, it takes approximately 70 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 40 minutes to charge them from 20% to 90%.



Intelligent Battery Station

Dimensions

580×358×254 mm (L×W×H)

Net Weight

Approx. 8.98 kg

Compatible Stored Items

Eight TB65 Intelligent Flight Batteries

Four WB37 Intelligent Batteries

Input Voltage

100-120 VAC, 50-60 Hz

220-240 VAC, 50-60 Hz

Max Input Power

1070 W

Output Power

100-120 V: 750 W

220-240 V: 992 W

Operating Temperature

-20° to 40° C (-4° to 104° F)

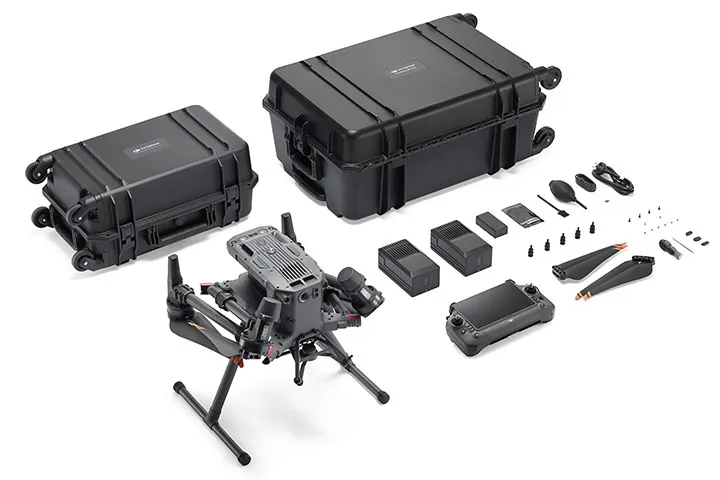

In the box

Aircraft Body × 1
Landing Gear × 2
2110s Propeller (pair) × 1
TB65 Intelligent Flight Battery × 2
DJI RC Plus Remote Controller × 1
WB37 Intelligent Battery × 1
Spare Gimbal Damper × 4
Screws and Tools × 1
Cleaning Tools × 1
Rubber Port Cover (Set) × 1
Manuals × 1

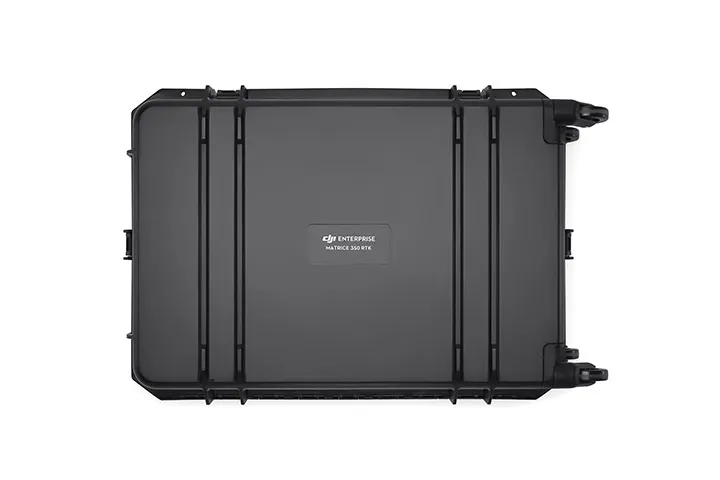

Carrying Case × 1
DJI BS65 Intelligent Battery Station × 1

WHY BUY FROM US?

By buying from Ferntech, you'll have the confidence that you are dealing directly with New Zealand's leading drone experts. Our staff are knowledgable drone pilots who offer expert advice, trusted support and superior specialist service. Only through us will you receive a full New Zealand warranty, phone and email support, and access to our certified Repairs Centre with DJI-qualified drone technicians. And we guarantee that we will have the best prices on the market — if not let us know and we will match any price (conditions apply).



Warranty Details

Aircraft

What is the ingress protection (IP) rating of M350 RTK? Can I fly the drone in the rain?
M350 RTK is IP55 rated.
The IP rating is not permanently effective and may decrease due to wear and tear. Do not fly in rain heavier than 100 mm/24 hr.

Which propellers come with M350 RTK?
M350 RTK comes with the standard 2110s Propellers. You can also use the optional 2112 High-Altitude Low-Noise Propellers.

Can I use the propellers of M300 RTK on M350 RTK?
Yes, but only one type of propeller can be used simultaneously. Do not mix two types of propellers during use.

Can I replace the propellers of M350 RTK by myself?
Yes. When replacing the propellers, please also replace the corresponding screws and attach a proper amount of threadlocker (threadlocker 243 is recommended) to the surface of the new screws.

Battery

How long does it take to fully charge two TB65 Intelligent Flight Batteries?
With a 220V power supply, it takes approximately 60 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 30 minutes to charge them from 20% to 90%.
With a 110V power supply, it takes approximately 70 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 40 minutes to charge them from 20% to 90%.

Does M350 RTK support the TB60 Intelligent Flight Battery?
Yes, but only two TB60 batteries can be used simultaneously. Do not mix TB60 and TB65 batteries during use.

Why does the battery heat up during long-term storage?
During long-term storage, the battery will automatically discharge to approximately 50% to ensure storage safety and extend battery life. It is normal for the battery to feel slightly warm during this process.

Can I use the TB65 Intelligent Flight Battery in low-temperature environments?
Yes. The operating temperature of the TB65 Intelligent Flight Battery is -20° to 50° C (-4° to 122° F). When the battery is used in low-temperature environments, the battery life will be reduced. Please schedule the flight time properly. To ensure optimal performance, it is recommended to keep the battery temperature above 15° C (59° F) before flying.
For charging in environments of -20° to 5° C (-4° to 41° F), the battery will automatically heat up before starting the charging process. Once installed on the aircraft and powered on, the battery, if at a low temperature, will automatically heat up to maintain a temperature of approximately 16° to 20° C (60.8° to 68° F).

What is the service life of the TB65 Intelligent Flight Battery?
There are three ways to calculate the service life, including 12 months, 400 cycles, and 120 days of high-power storage. The final service life depends which comes first.

Can I carry the TB65 Intelligent Flight Battery onto an airplane?
The energy of the TB65 Intelligent Flight Battery is 263 Wh, so it cannot be carried onto an airplane according to airline regulations.

How do the fans of the BS65 Intelligent Battery Station work?
The fans automatically turn on or off and adjust rotation speed according to the ambient temperature and battery temperature.

How many batteries can be charged by the BS65 Intelligent Battery Station simultaneously?
The BS65 Intelligent Battery Station can store eight TB65 Intelligent Flight Batteries and four WB37 Intelligent Batteries at the same time. It can charge two TB65 batteries and one WB37 battery simultaneously. Batteries with the highest battery level will be charged first, followed by others with lower levels.



Remote Controller

How do I charge DJI RC Plus?
The charger for the remote controller is integrated in the BS65 Intelligent Battery Station. You can charge the remote controller by connecting it to the battery station with the USB-C cable.

Is M350 RTK compatible with the remote controller of M300 RTK?
No.

Can I use DJI RC Plus with M300 RTK or the M30 Series?
Yes. Please update the firmware of DJI RC Plus to v01.02.04.40 or higher, select the corresponding drone model in DJI Pilot 2, and then complete the linking.



Payloads

Which payloads are compatible with M350 RTK?
Zenmuse H20N, Zenmuse L1, Zenmuse P1, Zenmuse H20/H20T, and third-party payloads developed based on the Payload SDK.

How many payloads can be mounted on M350 RTK simultaneously?
M350 RTK supports mounting up to three payloads simultaneously, with the single upward gimbal and dual downward gimbals used together.



RTK

Can I use M350 RTK for precision surveying?
M350 RTK can perform precision surveying when equipped with Zenmuse P1, Zenmuse L1, or a third-party payload developed based on the Payload SDK. For details, please leave your contact information at the bottom of the page, and we will contact you as soon as possible.

Does M350 RTK support the post-processed kinematic (PPK) technology?
When M350 RTK is mounted with Zenmuse P1 or Zenmuse L1, the task folder stores photos/point clouds, GNSS observations, and image log files, which are used for PPK post-processing calculations.

How does M350 RTK obtain real-time differential data?
M350 RTK supports obtaining real-time differential data in the following ways:
1. Connect the aircraft to the D-RTK 2 Mobile Station (supporting RTCM3.2 protocol) via DJI Pilot 2.
2. Connect the remote controller to the custom Network RTK service based on NTRIP protocol (supporting RTCM3.0/RTCM3.1/RTCM3.2 protocols) via a Wi-Fi hotspot.

Can one D-RTK 2 Mobile Station support multiple M350 RTK simultaneously?
Yes, there is no limit to the number of drones that can be used simultaneously.



Firmware

How do I update the firmware?
You can update firmware in the following ways:
1. Connect the aircraft to a computer and use DJI Assistant 2 (Enterprise Series) to update the firmware of the aircraft, remote controller, and D-RTK 2 Mobile Station.
2. Use DJI Pilot 2 to update the firmware of the aircraft, remote controller, and Intelligent Battery Station.
3. Visit the official DJI website to download the offline firmware update package for the aircraft, Intelligent Battery Station, and remote controller. Then, insert an SD card storing the firmware package into the remote controller for offline update. For details, please refer to the user manual.



SDK

What changes have been made to the E-Port compared to the Onboard SDK port?
E-Port is a new-generation expansion port of DJI Enterprise drones. E-Port has the same pin definition as the Onboard SDK port, but the USB link requires that the third-party payload be used as a secondary device (opposite to the Onboard SDK port). In terms of software, E-Port only supports Payload SDK V3 or later versions, and is not compatible with Onboard SDK. For technical support, please contact dev@dji.com.

Which kinds of SDK development does M350 RTK support?
M350 RTK supports Payload SDK, Mobile SDK, and Cloud API. For technical support, please contact dev@dji.com.

Can I use third-party Payload SDK payloads compatible with the M200 Series and M300 RTK directly on M350 RTK?
Third-party payloads developed based on the Skyport V2 or X-Port can be compatible with M350 RTK after updating the adapter and third-party firmware. For other questions, please contact the corresponding payload provider or DJI Support.



Other

What are the versions and areas of use of M350 RTK?
M350 RTK has two versions, including a Chinese version and a general version. The former can be used in China only, and the latter can be used in non-China regions. Please consult your local after-sales center or dealer about product availability.
