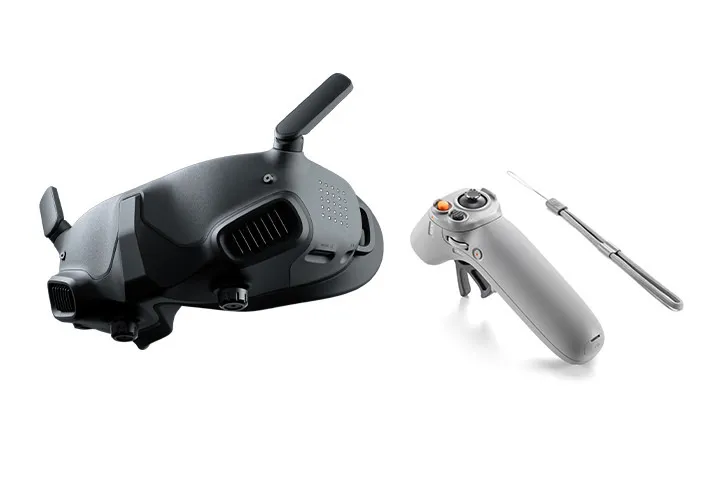

DJI Goggles 2 Motion Combo (Mini 3 Pro, Mini 4 Pro, Air 3 Avata, Mavic 3)

Features

DJI Goggles 2 is lightweight, portable, and comfortable to wear. The goggles adopt two 1080p Micro-OLED screens with a refresh rate of up to 100 Hz. * Together with a 10-bit enhanced display, the goggles can smoothly deliver true-to-life colors and accurate highlight-shadow details.

The goggles support diopter adjustment from -8.0 D to +2.0 D as well as ultra-low-latency DJI O3+ video transmission, providing a more immersive flight, and unlocking new ways to capture aerial shots.

The goggles support Wi-Fi wireless streaming to display videos from mainstream video software using DLNA protocol. And with a power amplifier and a 3.5 mm audio port, you can output synchronous audio for immersive movie-watching.

* The screen refresh rate changes with the video transmission frame rate. It may switch between 100 Hz and 60 Hz to adapt to the current video transmission frame rate.

Tips

What precautions should be taken when using DJI Goggles 2 with the DJI Mavic Series or DJI Mini Series for the first time?

1. Before first use, please make sure that the goggles and motion controller have been updated to the latest firmware version. Additionally, use DJI RC-N1, DJI RC, or DJI RC Pro to update the drone to the latest firmware version. Otherwise, the linking between the aircraft and the goggles and motion controller will fail.

2. FPV flight control is only supported when the goggles are used with DJI RC Motion 2.

3. When the goggles are used with the DJI Mavic 3 Series, the drone supports omnidirectional obstacle sensing and APAS 5.0, 4K/60fps and 1080p/60fps normal video recording, and Explore mode. For intelligent features like MasterShots, QuickShots, and Panorama, only DJI RC-N1, DJI RC, or DJI RC Pro are compatible.

4. When the goggles are used with DJI Mini 3 Pro, the drone supports forward and backward obstacle sensing and APAS 4.0, 4K/60fps, 2.7K/60fps, and 1080p/60fps normal video recording. For vertical shooting and intelligent features like MasterShots, QuickShots, and Panorama, only DJI RC-N1, DJI RC, or DJI RC Pro are compatible.

Compatibility

DJI Avata
DJI Mavic 3 Classic
DJI Mavic 3
DJI Mavic 3 Cine
DJI Mavic 3 Pro
DJI Mavic 3 Pro Cine
DJI Mini 3 Pro
DJI Mini 4 Pro
DJI Air 3

Product Specifications

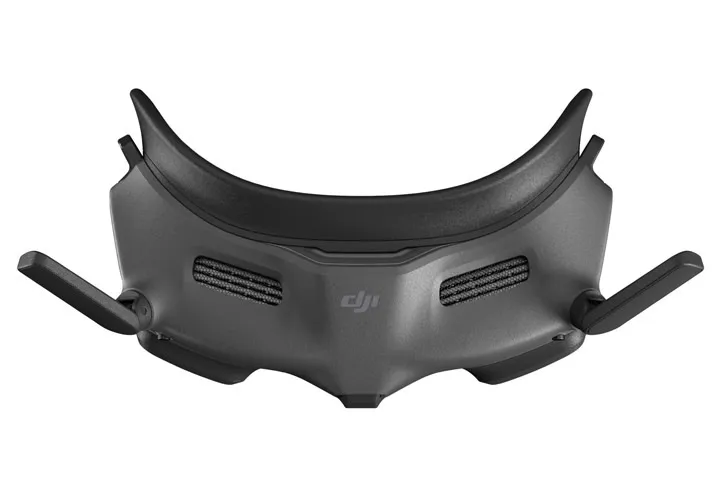

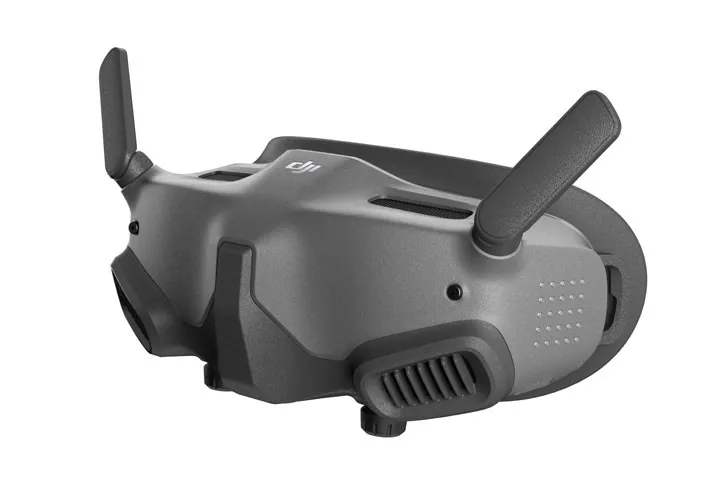

DJI Goggles 2

Model: RCDS18
Weight: Approx. 290 g (headband included)
Dimensions (L×W×H): With antennas folded: 167.40×103.90×81.31 mm
With antennas unfolded: 196.69×103.90×104.61 mm
Screen Size (single screen): 0.49-inch
Resolution (single screen): 1920×1080
Refresh Rate: Up to 100 Hz
Interpupillary Distance Range: 56-72 mm

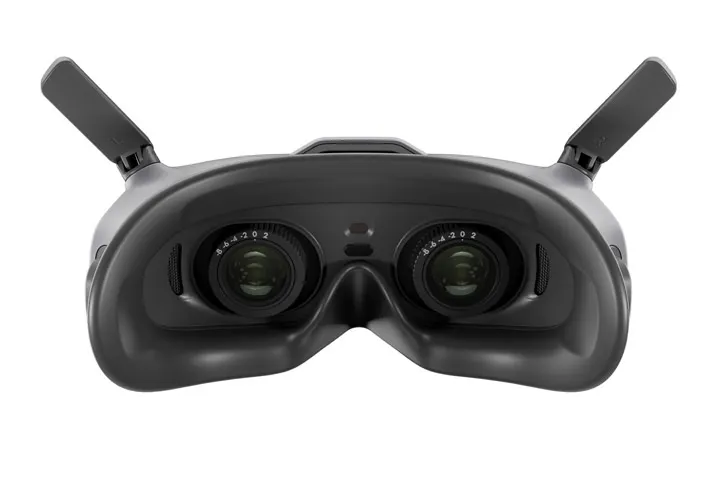

Diopter Adjustment Range: -8.0 D to +2.0 D
FOV (single screen): 51°
Communication Frequency: 2.400-2.4835 GHz
5.725-5.850 GHz ^[1]
Transmission Power (EIRP): 2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/MIC/KC)
5.8 GHz: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
Video Recording Format: MOV
Supported Video and Audio Playback Formats: MP4, MOV (video coding formats: H.264, H.265; audio formats: ACC, PCM)
Wi-Fi Wireless Streaming: Supports DLNA protocol
Operating Temperature: -10° to 40° C (14° to 104° F)
Power Input: DJI Goggles 2 Battery
Supported SD Cards: microSD (up to 256 GB)


Wi-Fi

Protocol: Wi-Fi 802.11b/a/g/n/ac
Communication Frequency: 2.400-2.4835 GHz
5.150-5.250 GHz (indoor use only) ^[2]
5.725-5.850 GHz
Transmission Power (EIRP): 2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC/KC)
5.1 GHz: < 20 dBm (FCC/CE/MIC/KC)
5.8 GHz: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)


Bluetooth

Protocol: Bluetooth 5.2
Communication Frequency: 2.400-2.4835 GHz
Transmission Power (EIRP): < 8 dBm


Video Transmission

Video Transmission Latency ^[3]: 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate ^[3]: 50 Mbps
Video Transmission Range ^[3]: When used with DJI Avata or DJI O3 Air Unit, DJI Goggles 2 can achieve the following max video transmission range:
10 km (FCC), 2 km (CE), 6 km (SRRC)


DJI Goggles 2 Battery

Capacity: 1800 mAh
Voltage: 7-9 V (1.5 A)
Type: Li-ion
Chemical System: LiNiMnCoO2
Energy: 18 Wh
Charging Temperature: 0° to 45° C (32° to 113° F)
Max Charging Power: 12.6 W (5 V/2 A, 9 V/1.4 A)
Operating Time: Approx. 2 hours ^[4]
Weight: Approx. 122 g
Dimensions (L×W×H): 73.04×40.96×26 mm


DJI Motion Controller

Weight: Approx. 167 g
Communication Frequency: 2.400-2.4835 GHz
5.725-5.850 GHz
Transmission Power (EIRP): 2.4 GHz: ≤ 28.5 dBm (FCC), ≤ 20 dBm (CE/SRRC/MIC)
5.8 GHz: ≤ 31.5 dBm (FCC), ≤ 19 dBm (SRRC), ≤ 14 dBm (CE)
Operating Temperature: -10° to 40° C (14° to 104° F)

Footnotes

1. The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
2. The 5.1 GHz frequency band is currently banned in Thailand and Israel. For details, please refer to local laws and regulations.
3. Tested in an outdoor open environment without interference. Please refer to actual use.
4. Tested with a fully charged battery in a 25°C (77°F) environment, screen brightness at 6, in 1080p/100fps video transmission mode, without supplying power to any external equipment. Actual operating time may vary due to differences in the number of charge cycles, environment temperature, or external factors.

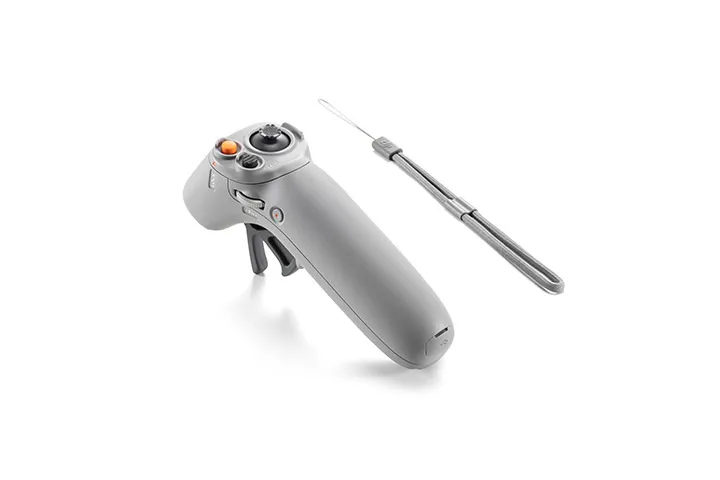

DJI RC Motion 2

Model: RM220
Weight: Approx. 170 g
Operating Frequency: 2.4000-2.4835 GHz
5.725-5.850 GHz
^{The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.}
Transmitter Power (EIRP): 2.4000-2.4835 GHz:
< 30 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
< 30 dBm (FCC)
< 23 dBm (SRRC)
< 14 dBm (CE)
Max Transmission Distance (unobstructed, interference free): 10 km (FCC)
6 km (CE/SRRC/MIC)
^{When used with different aircraft, the motion controller will automatically select the corresponding firmware to match the video transmission specification of the aircraft. Measured in an outdoor open environment without interference. Actual data varies with operating environment.}
Operating Temperature: -10° to 40° C (14° to 104° F)
Operating Time: Approx. 5 hours
^{Measured with an ambient temperature of 25° C (77° F), when connected to DJI Avata, and in a stationary state.}

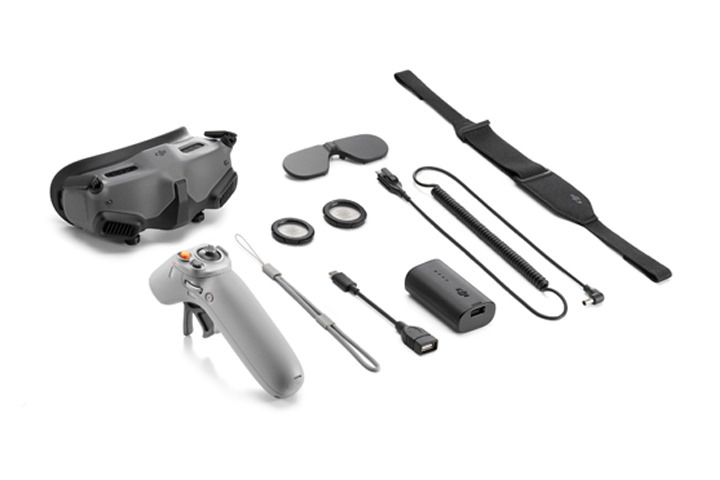

In the box

DJI Goggles 2 × 1
DJI RC Motion 2 × 1
DJI Goggles 2 Dual-Band Antenna (Pair) × 1
DJI Goggles 2 Battery × 1
DJI Goggles 2 Eyeglass Frames (Pair) × 1
DJI Goggles 2 Screen Protector × 1
DJI Goggles 2 Headband × 1
DJI Goggles 2 Power Cable × 1
USB-C OTG Cable × 1
Lanyard × 1
