DJI FlyCart 30

All FlyCart 30 aircraft come with the Cargo Case for use in Cargo mode and in built parachute systems.
For use in winch mode, the winch system must be bought as an add on





DJI FlyCart 30 is here to deliver the goods. A long-distance heavy lifter with powerful signal and intelligence, DJI FlyCart 30 supports Cargo mode and Winch mode and ascends beyond traditional logistical limits to deliver a safe, economical, and efficient air transport solution.



Heavy Payloads, Long Distances

30 kg Max Payload^[1]
28 km Flight Distance Without Payload^[2]
16 km Flight Distance with Full Payload^[3]
20 m/s Max Speed^[4]
The first three indicators are measured in dual battery mode



Built for Extremes

6,000 m Max Flight Altitude^[5]
-20° to 45° C (-4° to 113° F) Operating Temperature^[6]
12 m/s Max Wind Speed Resistance^[7]



Strong Signal

20 km Video Transmission with O3^[8]
4G Enhanced Video Transmission^[9]
Dual Operator Mode^[10]
High-Resolution FPV Gimbal Camera



Advanced Safety and Intelligence

IP55 Protection and Corrosion Resistance^[11]
Radars, Binocular Vision, Intelligent Obstacle Sensing^[12]
Dual Batteries and Parachute



Convenient Configurations

Foldable
70 L EPP Case^[17]
Winch System



Fully-Automatic Operations

DJI Pilot 2
DJI DeliveryHub
Health Management System



Designed to Deliver



Send What's Needed, Where It's Needed

Heavy payload capacity and long flight distance overcome logistical limitations for next-generation delivery.

30 kg Max Payload (Dual Batteries)^[1]

40 kg Max Payload (Single Battery)^[1]

28 km Max Flight Distance Without Payload (Dual Batteries)^[2]

16 km Max Flight Distance with Full Payload (Dual Batteries)^[3]

20 m/s Max Flight Speed (with Carbon Fibre Propellers)^[4]

15 m/s Cruising Speed^[4]

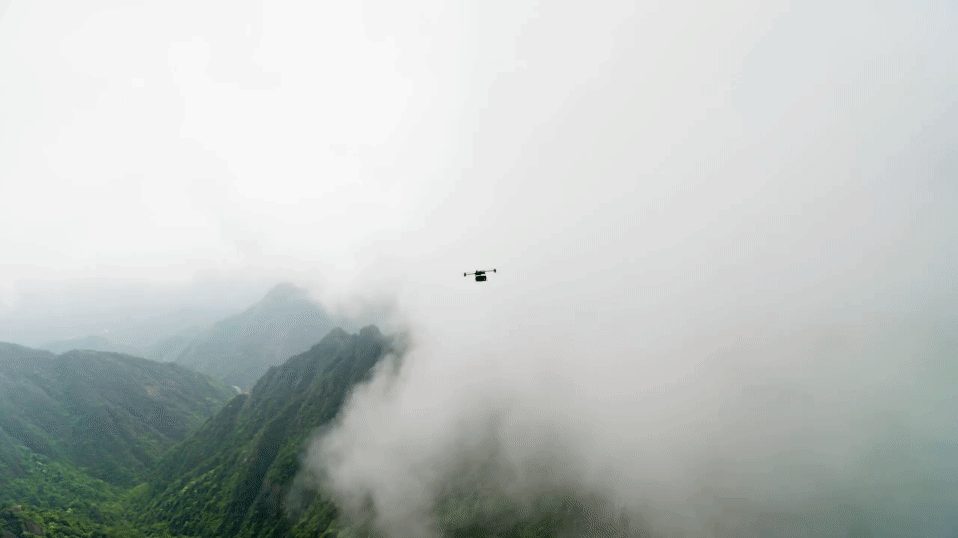

All-Weather Performance

Withstand round-the-clock operations across extreme altitudes and weather conditions.

6,000 m Max Flight Altitude^[5]

-20° to 45° C (-4° to 113° F) Operating Temperature^[6]

IP55 Protection Rating^[11]

12 m/s Max Wind Speed Resistance^[7]



Deliver With Safety and Reliability

Ensured safety from takeoff to landing.



Alternate Landing Site Settings

Set multiple alternate landing sites for safe landing in case of an emergency.



Takeoff and Landing Protection

Multiple features assure safe takeoff and landing, including sound and light prompts, a 6s delay of propeller rotation, and secondary confirmation of landing. Integrate an RTK module to achieve centimeter-level positioning to further improve takeoff and landing safety.


Integrated Parachute

In case of an emergency, the integrated parachute can open in low altitude and land the drone stably, reducing risk to people and property^[14]. The parachute has its own self-check upon startup, an independent power supply, sound and light alerts, and propellers stop rotation before opening.

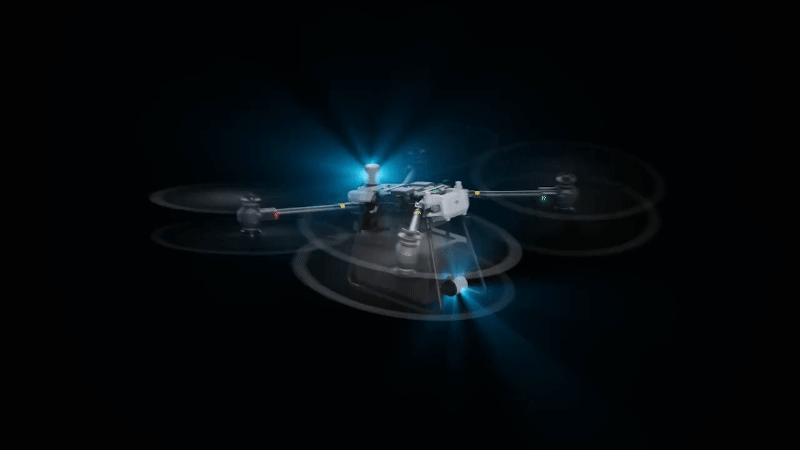

Intelligent Obstacle Sensing^[12]

DJI FlyCart 30 is equipped with Front and Rear Phased Array Radars and a dual Binocular Vision system to achieve Intelligent Multidirectional Obstacle Sensing^[11]. A built-in ADS-B signal receiver detects and warns of nearby crewed aircraft.



Multi-Level Redundancy

DJI FlyCart 30 is designed with high redundancy to guarantee flight safety even in harsh environments.  Powered by a dual battery system, if a single battery fails during flight, the other battery will keep the drone flying and ensure a safe return.



Strong Signal, Stable Transmission

DJI FlyCart 30 supports DJI O3 video transmission over up to 20 km^[8].
Its four-antenna transceiver system intelligently selects the optimal antenna to transmit signals and enhance anti-interference capabilities. Bolster connection and stability with a DJI Cellular Dongle^[15] which can work in tandem with DJI O3 video transmission. If O3 video transmission experiences interference, the 4G network can maintain signal stability and video transmission, improving flight safety even in complex environments.



Smooth Effortless Control

DJI RC Plus has a 7-inch high-bright screen and supports Dual Operator mode^[10]. This mode allows two operators to conveniently transfer control permissions to meet diverse operation requirements.



Built Ready for Harsh Environments

IP54 Protection^[11]

Water and dust resistant

-20° to 50° C (-4° to 122° F)^[6]

Capable in extreme environments



Stable Video Transmission and Long Battery Life



20 km Four-Antenna O3 Video Transmission^[8]

Intelligently selects the optimal antenna to transmit signals for more stable video transmission.



4G Enhanced Video Transmission^[9]

The remote controller can connect to Wi-Fi or connect to a mobile network by using a DJI Cellular Dongle^[15] to achieve 4G enhanced video transmission^[9].



6-Hour Long Battery Life^[14]

Internal and external battery configuration powers the controller for 6 hours[16] and enables hot-swapping for seamless, uninterrupted flight operations.



Choose Your Payload Configuration

Cargo mode or Winch mode facilitate payload delivery depending on its destination.



Cargo Mode: Streamlined and Steady

70 L Max Capacity^[15]
30 kg Max Payload (Dual Batteries)^[1]
40 kg Max Payload (Single Battery)^[1]

*Winch System Kit is sold separately

DJI FlyCart 30 comes standard with an EPP case^[13] that supports easy loading and unloading.

Weight and centre-of-gravity detection ensures balanced cargo loading for safe and stable flight.



Winch Mode: Flexible and Precise

30 kg Max Payload (Dual Batteries)^[1]
40 kg Max Payload (Single Battery)^[1]
0.8 m/s Max Cable Speed
20 m Max Cable Length

*Winch System Kit is sold separately

Winched cargo is delivered by a retractable cable which can be controlled either manually or automatically. Cargo releases automatically upon touchdown and does not require manual detachment, ensuring safe and precise delivery.

DJI FlyCart 30 can intelligently adjust its attitude to minimize cargo swing and improve stability. For extreme situations where hanging cargo gets trapped or tangled, you have the option to heat and cut the winch cable, freeing the drone.

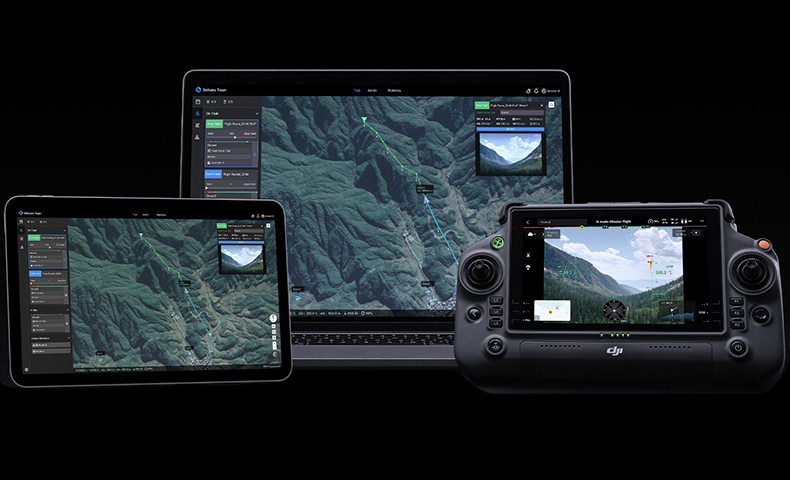

One-Stop Solution for Drone Delivery

DJI Pilot 2 and DJI DeliveryHub provide a powerful, efficient, and flexible one-stop solution for drone delivery management.



Simplified Delivery at Your Fingertips

DJI Pilot 2 displays real-time flight status, cargo status, and other interactive interfaces for efficient and safe operation with DJI FlyCart 30.



Real-Time Flight Safety Alerts

Check battery level, power status, and mileage in real time, and monitor the reachability of the destination point to ensure operation safety.



Intelligent Assistance for Elevated Efficiency

Delivery Mode

DJI Pilot 2 can visually display cargo status and intelligently control the winch system for efficient delivery.



Cruise Control

During long-distance and stable flights, Cruise Control can help mitigate pilot fatigue.



Real-Time Terrain Sensing

The elevation profile shows you the terrain changes and surrounding environment in real time.



AR Projection

AR Projection assists in precise landing and cargo dropoff.



Route Recording

Flight routes can be recorded and automatically reflown.



Collaborate Across Multiple Terminals

DJI DeliveryHub is a one-stop air delivery management platform. It facilitates efficient operation planning, comprehensive operation status monitoring, centralized team resource management, and data collection and analysis.



Task Planning and Execution

Remotely create, schedule, and allocate tasks and devices.
Confirm safety check and one-tap takeoff.
Increase efficiency and automatically perform scheduled delivery tasks based on recorded flight routes.



Comprehensive Status Monitoring

Track drones and task status on a 2.5D Base Map^[18].
Live view directly from the drone's high resolution FPV gimbal camera to see the surrounding flight environment.
Receive alerts for abnormalities and take manual control to ensure flight safety.
Collaborate with teammates and share status notifications to multiple terminals.



Centralized Team Resource Management

Plan complex flight routes quickly based on a 2.5D Base Map^[16].
Manage marked locations and alternate landing sites for efficient team collaboration and coordination.
Monitor drone health status, maintenance information, and DJI Care status.
View drone, route, and time statistics to evaluate efficiency and optimize future operations.



Extensive Accessories

DJI RC Plus

DJI RC Plus has a 7-inch 1,200 nits high-bright screen with multiple buttons and dials for a smooth control experience. It comes with a standard WB37 external battery that offers an operating time of up to six hours and supports battery hot-swapping.



DJI Cellular Dongle^[15]

This module supports 4G enhanced video transmission^[9] for drones and remote controllers and provides a mobile network for remote controllers.



DJI FlyCart 30 Winch System Kit^[20]

The DJI FlyCart 30 Winch System Kit includes a winch, a counterweight, a transport landing gear, and an extension cable. The kit can quickly be installed on DJI FlyCart 30 and facilitates complex delivery operations with ease.



DJI DB2000 Intelligent Flight Battery

DJI FlyCart 30 comes with a brand-new dual-battery system. A single DJI DB2000 Intelligent Flight Battery has a capacity up to 38,000 mA and supports up to 1,500 charge cycles^[17]. It supports self-heating and hot-swapping to save time and ensure smooth operation.



DJI WB37 Battery

The DJI WB37 Battery helps power the DJI RC Plus. It adopts 2S 4920 mAh battery cells, has excellent discharge performance at low temperatures, and charges quickly.



DJI C8000 Intelligent Battery Station

The DJI C8000 Intelligent Battery Station supports concurrent charging for dual batteries and fast charging for a single battery^[18]. The charging voltage is adaptive to standard generators with a max charging power of up to 7200 W^[19].



DJI WB37 Battery Charging Hub^[20]

The DJI WB37 Battery Charging Hub is used to charge DJI WB37 Batteries. The charging manager is compatible with third-party USB-C chargers and 65 W PD fast chargers.



D-RTK 2 Mobile Station^[20]

The D-RTK 2 Mobile Station supports mainstream global satellite navigation systems and provides real-time differential corrections for accurate and reliable centimetre-level precision.



Data Security

DJI takes the security of your data seriously. We use best-in-class measures to protect the integrity of your photos, videos, flight logs, and other user data, allowing you to confidently use the full power of a cloud-based fleet management system. DJI FlyCart 30 and DJI DeliveryHub is built to maintain integrity across multiple levels of the drone and data management process – from device connection and maintenance, to data upload and transmission, to cloud service storage and operational security. DJI DeliveryHub uploads, stores and manages data on cloud servers operated by Amazon Web Services, which are compliant to ISO/IEC 27001 security certifications.



Data Collection

DJI will not access any user data before the user grants DJI the permission to do so. You can grant or revoke the permission anytime in "Network Security Mode" or enable "Local Data Mode" to use your device completely offline.



Data Transmission and Storage

Full-link encryption effectively protects data from third-party hijacking. Sensitive information, such as email addresses, mobile numbers, and locations, is protected with additional AES-256-CBC encryption.



Clear All Device Data

You can choose to erase any data generated during your use of DJI devices. Using the DJI Pilot 2 app, you can clear the logs and cache on your device and the app, or restore the device to factory settings.



* Please check and strictly abide by local laws and regulations before flying.
** All data was tested with a production model DJI FlyCart 30 in a controlled environment. Actual experience may vary depending on the environment, usage, and firmware version.
*** All videos and images on this page were shot in strict compliance with relevant local laws and regulations.
**** Before use, DJI FlyCart 30 must be activated by using the DJI Pilot 2 app.



Notes:

<sup>1. Measured at sea level. Please pay attention to the difference between single and dual battery states. The maximum loaded weight must not exceed the recommended value. Avoid placing sharp objects when using cargo cases. Avoid goods hitting the landing gear when using the winch system. Otherwise, flight safety may be compromised.
2. Measured with DJI FlyCart 30 (operating on dual batteries) flying at a constant 15 m/s in a windless environment at sea level without payloads until displayed battery level reached 0%. Data is for reference only. Please pay attention to the Return to Home (RTH) prompts in the DJI Pilot 2 app during your flights.
3. Measured with DJI FlyCart 30 (operating on dual batteries) flying at a constant 15 m/s in a windless environment at sea level with a full payload until displayed battery level reached 0%. Data is for reference only. Please pay attention to the Return to Home (RTH) prompts in the DJI Pilot 2 app during your flights.
4. Measured with DJI FlyCart 30 (operating on dual batteries) flying with a full payload in a windless environment at sea level. Data is for reference only.
5. The load capacity of DJI FlyCart 30 decreases as the takeoff altitude increases. An altitude of 6,000 meters is the maximum safe altitude for DJI FlyCart 30 flying in dual batteries mode without a payload (takeoff at an altitude of 4,500 meters). An altitude of 3,000 meters is the maximum safe altitude for DJI FlyCart 30 flying with a full payload.
6. Measured with estimated solar radiation of 960 W/m2. Long-term exposure to high temperatures may shorten the service life of certain components.
7. During takeoff and landing, DJI FlyCart 30 can resist a maximum wind speed of 12 m/s.
8. Measured with FCC compliance in an unobstructed environment with low interference. Data is for reference only. During your flight, please pay attention to reminders in the app.
9. To realize 4G enhanced video transmission, connect the DJI FlyCart 30's DJI Cellular Dongle (available only in the Chinese mainland) to the internet. The remote controller can be connected to the internet by using the DJI enhanced video transmission module or the Wi-Fi module.
10. A second remote controller is sold separately.
11. The protection rating is not permanent and may decline due to aging and wear caused by long-term use. The protection rating does not apply to the propulsion system. After a flight in rain, it is recommended to keep it idling on the ground for 1 minute to prevent corrosion or rust to afflict the propulsion system (precipitation of more than 24.9 mm within 24 hours).
12. Effective sensing range and obstacle sensing capabilities may vary depending on ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles. Downward sensing is mainly used to assist in measuring ground clearance. Sensing in other directions is used for obstacle sensing.
13. The dimensions of the Expanded Polypropylene (EPP) case interior are 573×416×306 mm (L×W×H).
14. When DJI FlyCart 30 operates on dual batteries and flies in a 25° C windless environment at sea level with a full payload, the lowest height for opening the parachute is 60 m and the terminal descent speed 6 m/s.
15. The DJI enhanced video transmission module is sold separately and available only in the Chinese mainland.
16. Measured under lab conditions at 25° C in a windless environment and at sea level.
17. Center of gravity and weight detection are not permanently valid. Please perform tare calibration as needed.
18. 2.5D Base Map is a 2D map overlaid with elevation data.
19. Battery provides 1,500 in-warranty cycles or a 12-month warranty, whichever comes first.
20. When fast charging a single battery, make sure that the charger uses two 220 V cables at the same time and that the power line and socket can withstand the charging power.
21. Theoretical maximum power of the charger. Actual power may vary based on voltage.
22. Sold separately.</sup>

Product Specifications

Aircraft

Weight: 42.5kg (without battery） 65kg (with two DB2000 batteries)
Max Takeoff Weight: 95kg (With cargo, at sea level）
Max Diagonal Wheelbase: 2200mm
Dimensions: 1590 x 1900 x 947 mm(LxWxH) (arms unfolded, propellers folded) 2800x3085x947 mm(LxWxH) (arms&propellers unfolded) 1115x760x1027 mm(LxWxH) (arms&propellers folded)
Folding Method: Towards body
Loadable Battery Quantity: 2
Hovering Endurance (empty weight, with max battery capacity): 29min(dual battery mode) 15min(single battery mode) The data was measured in controlled conditions: zero altitude and windless environment, for reference only.
Hovering Endurance (max weight, with max battery capacity): 18min(30kg weight load,dual battery mode) 15min(40kg weight load,single battery mode) The data was measured in controlled conditions: zero altitude and windless environment, for reference only.
Max Flight Distance (empty weight, with max battery capacity): 28km(dual battery mode) 12km(single battery mode) The data was measured in controlled conditions: zero altitude and windless environment, at a constant speed of 15m/s, C
Max Flight Distance (max weight, with max battery capacity): 16km(30kg weight load,dual battery mode) 8km(40kg weight load,single battery mode) The data was measured in windless, zero altitude experimental environment, at a constant speed of 15m/s, for reference only.
Max Flight Time (max weight, with max battery capacity): 18min(30kg weight load,dual battery mode) 9min(40kg weight load,single battery mode) The data was measured in windless, zero altitude experimental environment, at a constant speed of 15m/s, for reference only.
Operating Temperature: -20° to 45° C
Ingress Protection Rating: IP55
Hovering Accuracy (with strong GNSS signal): RTK positioning enabled: ±10 cm horizontal, ±10 cm vertical RTK positioning disabled: ±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm)
RTK/GNSS Operating Frequency: RTK: GPS L1/L2、Galileo F1/F2、BeiDou B1I/B2I/B3I、Galieo E1/E5b、QZSS L1/L2、GNSS: GPS L1、BeiDou B1I、Galileo F1、Galieo E1、QZSS L1
Max Pitch Angle: 30°
Max Ascent Speed: 5m/s The data was measured in an experimental environment with zero altitude and no wind, with 30kg load weight, for reference only.
Max Descent Speed: 3m/s(vertical) 5m/s(tilted descent) The data was measured in an experimental environment with zero altitude and no wind, with 30kg load weight, for reference only.
Max Horizontal Speed: 20m/s The data was measured in an experimental environment with zero altitude and no wind, with 30kg load weight, for reference only.
Max Flight Altitude: 6000m (empty weight)
Max Wind Speed Resistance: 12m/s The data was measured in an experimental environment with zero altitude, with 30kg load weight, for reference only.



Power System

Stator Size: 100x33 mm
Motor KV Value: 48rpm/V
Max Motor Power: 4000W/rotor
Propellers Material: Carbon fiber composite
Propellers Diameter: 54 inch
Propellers Type: Foldable double-blade propeller propeller
Main-rotor Diameter: 1375mm
Rotor Quantity: 8



LED Light

Effective Illumination Distance: Effective Illumination Distance
Illumination Mode: Illumination Mode



DJI O3 Image Transmission

Model: Pigeon(with DDR)-2T4R
Signal Effective Distance: 20km(FCC) 8km(CE/SRRC/MIC) in an unobstructed environment with no interference
O3 Pro Operating Frequency: 2.4000 to 2.4835 GHz 5.725 to 5.850 GHz Some countries or regions do not support the 5.8 GHz frequency band. Please refer to local flight laws and regulations for details.
EIRP: 2.400 GHz - 2.4835 GHz： <33 dBm（FCC） <20 dBm（CE/SRRC/MIC） 5.725 GHz - 5.850 GHz： <33 dBm（FCC） <30 dBm（SRRC） <14 dBm（CE）
Data Security: AES-256
ADS-B: Supported



Active Phased Forward and Backward Array Radar

Model Number: RD241608RF(Foward) RD241608RB(Backward)
Altitude Detection: Fixed altitude range: 1.5-200 m
Rear Obstacle Avoidance: Sensible distance (rear): 1.5-50 m FOV: Forward: 360° horizontal, ±45° vertical，±45°upward Backward: ±45° horizontal, 360° vertical Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m away from the aircraft Safe distance: 3.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking) Sensing direction: multi-direction



Binocular Vision System

FOV: Horizontal: 90; Vertical: 106°
Work Environment Requirements: Normal lighting with clearly textured surfaces



FPV Camera

Resolution: 1920x1440
DFOV: 149°
Frame Rate: 30fps
Type: Full HD FPV Single Axis Gimbal Camera
Fill Light: Supported



Cargo

Dimension: 754x472x385mm (LxWxH)
Inner Space: 573x416x305mm (LxWxH)
Material: EPP plus aluminum alloy frame
Weighing Feature: Supported
Weight: Appr 3kg
Load Capacity: 0~40kg



Parachute

Max Load: ≤95kg
Dimension: 300x200x120mm (LxWxH)
Weight: Appr 2.1kg
Automatic Reaction Time: Appr 1000ms
Descending Speed: ≤6m/s (at sea level, no wind)
Parachute Shape: Square
Material: Nylon
Surface Area: Appr 22㎡
Minimum Opening Height: 60m
Operating Temperature: -20° to 45° C
Ingress Protection Rating: IP55
Mainboard Power-off Battery Life: ≥1hour
Memory Card Capacity: Real-time record for 10 flights
Buzzar Alarm: Supported
Lighting Alarm: Supported
Manually Opening: Supported
Automatic Opening: Supported



Winch System(Optional)

Model: A2EWI-30A
Dimension: 252x195x193mm (LxWxH)
Body Weight: 2.5kg (Without clump and couple)
Clump Weight: 1.9kg
Couple Weight: 0.6kg
Touchdown Release Feature: Supported
Load Capacity: 5~30kg(dual battery) 5~40kg(single battery)
Cable Length: 20m
Max Retraction Speed: 0.8m/s
Operating Temperature: -20° to 45° C
Ingress Protection Rating: IP55
Weighing Function: Supported
Emergency Relief Feature: Supported
Anti Swing Feature: Supported
Manual Operation: Supported
Automatic Operation: Supported
Deceleration Protection: Supported



DJI DB2000 Intelligent Battery

Model: DB2000
Capacity: 38000mAH
Nominal Voltage: 52.22V
Type: 14S1P
Energy: 1984.4Wh
Weight: Appr 11.3
Installation Method: Plug
Dimension: 316x152x279mm(LxWxH)
Operating Temperature: -20° to 45° C
Charging Rate: 5 to 15°C：1.0C 15 to 45°C：2.5C
Max Charging Power: 5700W
Automatic Heating Feature: Supported (When the battery temperature is below 10 ℃, pressing and holding the button or turning on the drone will activate the self-heating function. When the battery temperature is below 20 ℃, connecting the charger to the battery will activate the self-heating function. Charging and discharging in a low-temperature environment may reduce the battery's lifespan)



DJI C8000 Intelligent Charger

Model: CHX101-7000
Input: 90~264V AC
Output: 42~59.92V DC
Max Output Power: 7200W(Dual input) 3600W(Single input)
Output Channel Quantity: 2
Protection Feature: The feature is designed to reponse to issues including overheat, overvoltage, undervoltage, short circuit, fan stall, etc.
Operating Temperature: -20° to 45° C
Charging Security: Connector protection feature available



Remote Controller

Type: DJI RC Plus
APP: DJI Pilot 2
Operating Frequency: 2.400GHz~2.483GHz 5.725GHz~5.850GHz
EIRP: 2.400 GHz - 2.4835 GHz： <33 dBm（FCC） <20 dBm（CE/SRRC/MIC） 5.725 GHz - 5.850 GHz： <33 dBm（FCC） <23 dBm（SRRC） <14 dBm（CE）
Operating Temperature: -20° to 50° C
Charging Environment Temperature: 5° to 40° C
Built-in Battery Life: 3.3 hours
External Battery: 2.7 hours
Charging Method: Use a USB-C fast charging charger with a maximum power of no less than 65 watts (maximum voltage of 20 volts). A DJI portable charger is recommended.
Charging Time: 2 hours with built-in battery, 2.5 hours with built-in and external battery (shutdown status according to official charging method)
Ingress Protection Rating: IP54
Video Output Interface: HDMI
Wi-Fi Protocol: Wi-Fi6
Wi-Fi Working Frequency: 2.4000 GHz to 2.4835 GHz 5.150 GHz to 5.250 GHz 5.725 GHz to 5.850 GHz
Bluetooth Protocol: Bluetooth 5.1
Bluetooth Working Frequency: 2.4000GHz to 2.4835GHz
EIRP: ＜10dBm
GNSS: GPS+Galileo+BeiDou
Screen: 7.02 inch touch LCD display screen，resolution 1920*1200, brightness 1200nits
Dual Control: Supported

In the box

Fly Cart 30 × 1
Cargo Case × 1
Parachute System × 1
RC Plus × 1
WB37 × 1
RC Plus Lanyard × 1

WHY BUY FROM US?

By buying from Ferntech, you'll have the confidence that you are dealing directly with New Zealand's leading drone experts. Our staff are knowledgable drone pilots who offer expert advice, trusted support and superior specialist service. Only through us will you receive a full New Zealand warranty, phone and email support, and access to our certified Repairs Centre with DJI-qualified drone technicians. And we guarantee that we will have the best prices on the market — if not let us know and we will match any price (conditions apply).



Warranty Details
