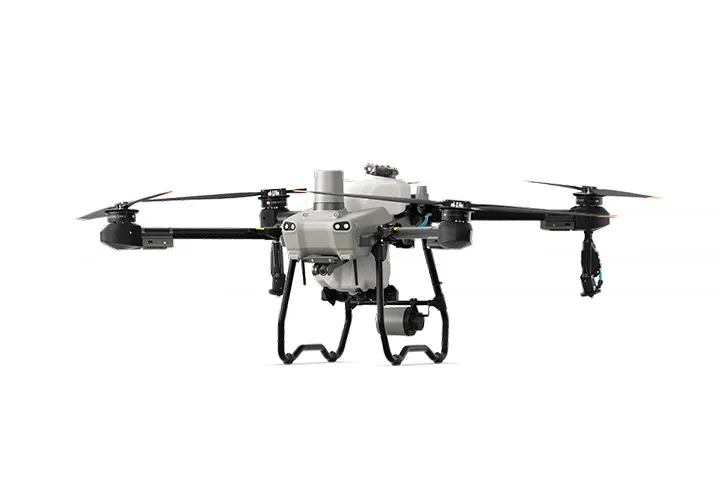

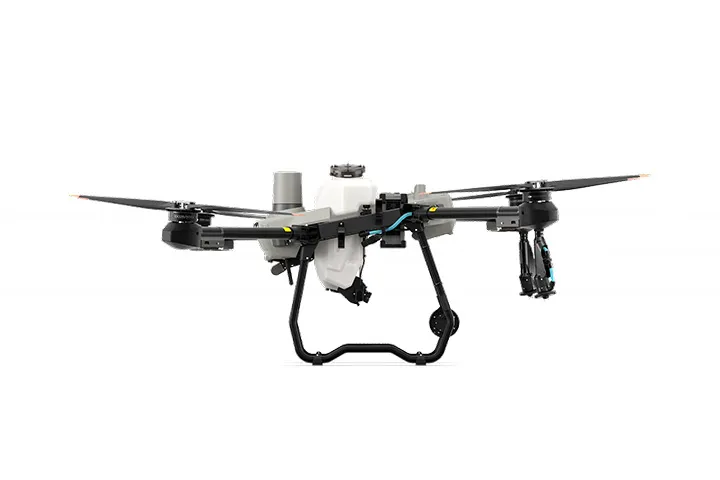

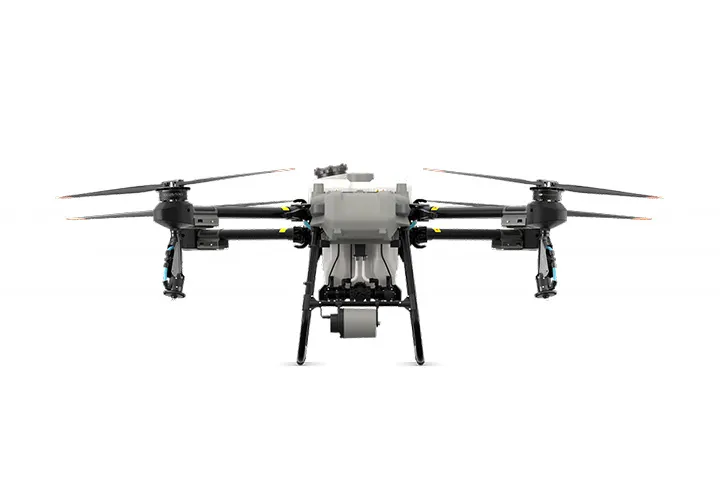

DJI Agras T25 Spreader and Sprinkler Combo
The DJI Agras T25 Spreader and Sprinkler Combo comes with the DJI Agras T25 Spreading System and DJI Agras T25 Atomized Sprinkler Package, introducing even more versatility.
DJI Agras T25 Spreader and Sprinkler Combo
The DJI Agras T25 Spreader and Sprinkler Combo comes with the DJI Agras T25 Spreading System and DJI Agras T25 Atomized Sprinkler Package, introducing even more versatility - increase your spraying flow rate to 24 L/min with the 4-sprinkler spraying system, and combine this with fast and uniform spreading with this all-in-one agricultural drone.

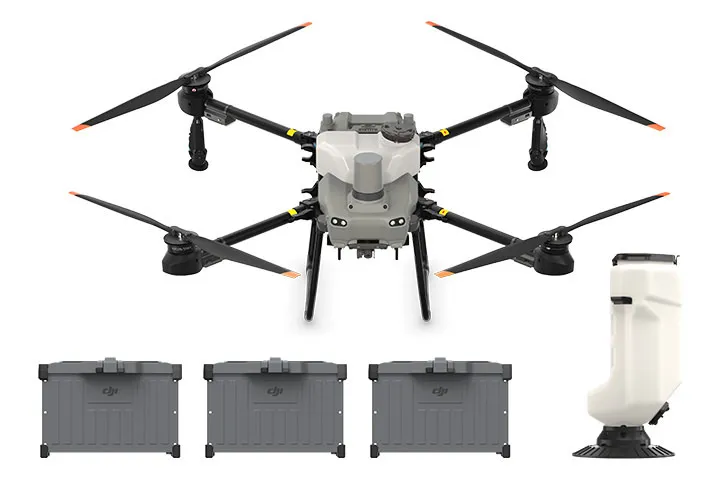

The Spreader and Sprinkler Combo includes:
| DJI Agras DB800 Intelligent Flight Battery (T25) × 3 DJI AGRAS T25 × 1 DJI C8000 Intelligent Battery Station × 1 DJI WB37 Intelligent Battery × 1 |
Agras 15AMP C19 Mains Power Cable × 2 DJI 65W Portable Charger (NZ) × 1 DJI Agras T25 Spreading System × 1 DJI Agras T25 Atomized Sprinkler Package × 1 |
Features
A little smaller. A little smarter.
The Agras 25 redefines standards for compact agricultural drones. Light and nimble, DJI Agras T25 can easily be handled by one person. It can carry a spraying payload up to 20 kg [1] or a spreading payload up to 25 kg [1]. DJI Agras T25 is equipped with Front and Rear Phased Array Radars, a Binocular Vision System, and a high resolution FPV gimbal camera. DJI Agras T25 supports multiple missions, from surveying [2] and mapping to spraying and spreading, and excels across a variety of terrains.
Light and Nimble
Foldable and simple for solo operation. Small for easy takeoff and landing.
|
Spray or Spread |
Signal Stability |
All Scenario Adaptability |
|
Multidirectional Obstacle Sensing[6] |
Four Sprinkler Kit |
Field Operations |
|
Spreading Operations |
||
Foldable, Flexible, Functional
DJI Agras 25 adopts a lightweight, foldable design. Optimised for solo operations, its unfolded dimensions have been reduced by 21% compared with its predecessor[11]. Transport, fold, takeoff, and land with flexibility.
Additional Sprinklers to Simplify Spraying
DJI Agras T25 can be equipped with an additional pair of centrifugal sprinklers for four sprinkler spraying[12]. When flying manually, use Reverse Directional Spray to simplify operations without having to make turns. DJI Agras T25 is equipped with a high-resolution FPV gimbal camera which enables viewing the surrounding environment in real time for safer operations.

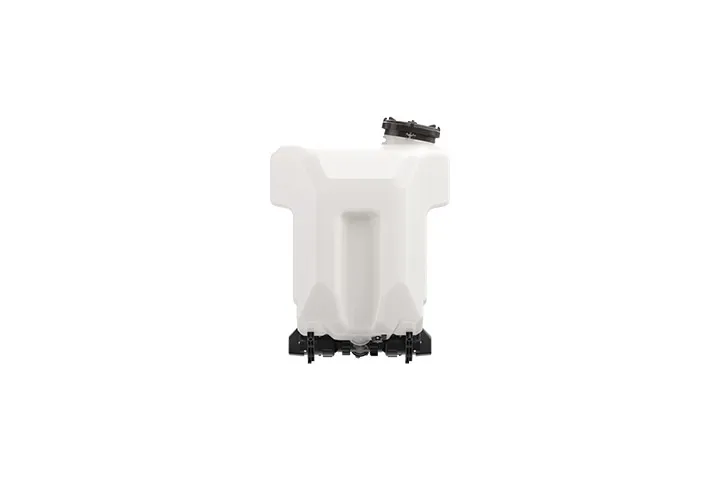

Spraying system
High Rate, Atomised Spray, Leak Free
DJI Agras T25's Dual Atomising Spraying System provides an ultra-large flow rate of up to 16 L/min (2-sprinkler spraying). It produces uniform and fine spray droplets, and does not leak. DJI Agras T25 can be equipped with an additional pair of centrifugal sprinklers, increasing flow rate to 24 L/min (4-sprinkler spraying) for operations that require high application volume, increasing spraying scope, operation efficiency, and leaf coverage.
Magnetic Drive Impeller Pump
There is a maximum dual-pump flow rate of 24 litres/minute [2], which is 100% higher than the previous generation, further solving the needs of large-volume operations in dry fields, fruit trees, and high-temperature conditions.
Dual Atomizing Centrifugal Sprinklers
Droplet size can be adjusted between 50-500 μm, depending on the chemicals used.
Brand-New Solenoid Valves
Precision starting and stopping eliminates leaking.

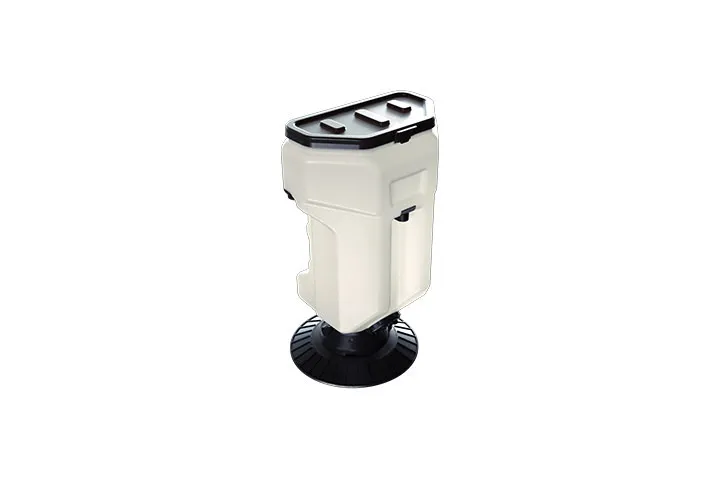

DJI Agras T25 Spreading System [1]
Spread with Speed
DJI Agras T25's new spreader and spiral channel spinning disk significantly improve spreading efficiency and smoothness.
25 kg Payload
35 L max capacity and an expanded loading gate for quick refills.
Uniform Spreading
Switch to smaller hopper gates for more accurate low flow rate spreading. Paired with the spiral channel spinning disk, spreading is more uniform.
Real-Time Weighing
DJI Agras T25 is equipped with a weighing sensor which allows you to monitor the remaining payload in real time.
Fast Disassembly and Cleaning
The spreader can be quickly disassembled and cleaned for easy maintenance.
Tested for reliability, durability and safety
Spraying and spreading operations are frequent, intense, and take place in complex environments. The DJI Agras T25 has passed hundreds of reliability tests and its main body is durable to help ensure safe operation.
Double your peace of mind with Binocular Vision and Dual Radar
DJI Agras T25 is equipped with front and rear Active Phased Array Radars with double the number of RF channels[18] for higher detection precision. Together they enable Multidirectional Obstacle Sensing[6], elevating operating safety. Two sets of Binocular Vision sensors enable DJI Agras T25 to accurately sense terrain and depict obstacles in detail, for automatic obstacle bypassing[13] and Terrain Following[13] over steep slopes.
Obstacle Detection
Terrain Projection
Obstacle Bypassing
One drone for surveying[2], spraying, and spreading
DJI Agras T25 integrates aerial surveying[2], spraying, and spreading into a single drone. A high-resolution FPV gimbal camera enables real-time capture of field and orchard images. Paired with DJI RC Plus and RTK service, you can generate high definition maps which underpin subsequent automated flight routes. DJI Agras T25 can take off and perform automated operations, all at the push of a button.
Orchard Aerial Survey[2]
DJI AGRAS T25 supports obstacle bypassing and Terrain Following for surveying[2] of orchards on slopes up to 20°[5]. With DJI RC Plus and its real-time mapping capabilities, it can automatically identify fruit trees and obstacles. Based on the distribution of the fruit trees, it can generate accurate and fully automatic 3D flight routes.
5 hectare orchard mapped in 10 minutes[14]
Field Aerial Survey[2]
Area Route
Mapping of 13 hectare field in 10 minutes[14]
Survey the entire field, automatically identify field boundaries and obstacles, and plan more precise flight routes.
Boundary Route
13 hectare field boundary mapped in 3 minutes[14]
Suitable for fields without obstacles in the middle.
Allows for quick plotting of field boundaries and efficient aerial surveying[2].
Remote Controller with a large high brightness screen
The 8-core processor provides powerful computing power and makes operations smoother. Intelligent route planning reduces the number of ineffective flights with full load and greatly increases operation efficiency. The large 7-inch high brightness screen offers a broader view with refined detail. The manual mode allows you to control operations at will.
Multi Plot Operations
Sided Spraying
Orchard Mode Spreading
Orchard Route Segmentation
72 Meter Route Spacing
Signal Stability
The new and upgraded quad-antenna O3 Transmission system works even in areas without cellular coverage, offering a transmission range of 2 km. [8] Its anti-interference ability helps ensure high signal quality during operations over tall crops.
DJI Relay (Optional)
DJI Relay ensures smooth real-time video transmission for safer flights even in complex operation scenarios with signal obstructions.
DB800 Intelligent Flight Battery
Capacity increased to 15.5 Ah.
Warranty covers 1,500 charging cycles[15].

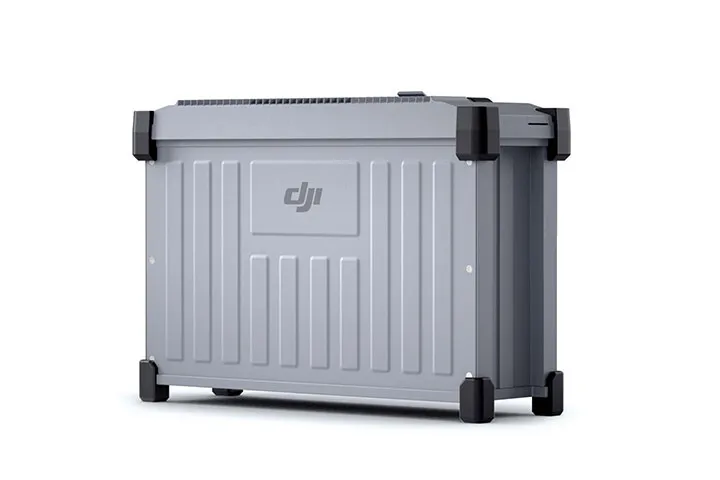

C8000 Intelligent Charger
Up to 5,400 W charging [15]
Dual-channel alternated charging
Power-adaptative protection
Smart Agriculture Ecosystem
Pair DJI Agras T25 with the new Mavic 3M and leverage multispectral data to minimise inputs and maximise yields. Survey your farm and generate prescription maps to guide variable rate fertilisation and crop protection. Quickly patrol fields to identify growth stress.
Notes:
[1] Data was measured at sea level. The payload weight is greatly affected by the ambient temperature and altitude. The take-off payload weight needs to be reduced by 5 kg for every 1,000 m increase in altitude. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised.
[2] RTK is required.
[3] Maximum spraying flow rate with two sprinklers is 16 L/min. Maximum spraying flow rate with four sprinklers is 24 L/min.
[4] Data measured with 4 mm diameter urea. The maximum flow rate may vary depending on the granule size, density, and surface smoothness of different fertilizers.
[5] To ensure a high success rate of surveying and mapping, DJI AGRAS T25 can automatically adjust its flight speed based on the hill slope. The steeper the slope, the slower its speed.
[6] The effective sensing range and its ability to avoid and bypass obstacles will vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles. Downward sensing is used for Terrain Follow and Altitude Stabilization. The sensing in other directions is used for Obstacle Avoidance.
[7] Charging from 30% to 95%. Factors impacting charging time: Altitude of the charging station; Charging cable meets requirements for fast charging; Battery cell's temperature is in the range of 15° to 70° C (59° to 158° F)
[8] It was measured at a flight altitude of 2.5 meters, without obstruction or electromagnetic interference.
[9] Data was measured with the DJI DJI AGRAS T25 and may vary based on operating environment and parameters. Flight parameters for this test: Dosage of 15 L/ha, spraying width of 7 m, flight speed of 6.5 m/s, and height of 2.5 m.
[10] Data was measured with urea and may vary by granule type, operating environment, and parameters. Spreading parameters for this test: Dosage of 150 kg/ha, spreading with of 8 m, flight speed of 10 m/s, height of 4 m, and spinning disk speed of 1,000 r/min.
[11] Size comparison between the unfolded DJI AGRAS T25 and the unfolded T20P.
[12] Requires the purchase of two additional centrifugal nozzles.
[13] Obstacle Bypassing is supported in the forward direction. The Terrain Follow and Obstacle Bypassing features are not supported at night or in low light environments. Fly with caution. Obstacle Bypassing is not recommended around electric or guy wires.
[14] Refers to the mapping time after completing the aerial survey. Time varies depending on the firmware version, type of aerial survey, and other factors.
[15] Batteries are covered by warranty for up to 1,500 charging cycles or 12 months, whichever ends first.
[16] Compared with third-party general-purpose generators equipped with an intelligent charger.
[17] Each AC cable of the C8000 Intelligent Charger must be connected to an AC socket or extension socket with a rated current greater than 16 A.
[18] Compared with T20P Omnidirectional Active Phased Array Radar.
[19] Generator only available in select countries and regions. Please contact your local dealer for more details.
Product Specifications
Aircraft
Weight: 25.4 kg (excl. battery)
32 kg (incl. battery)
Max Takeoff Weight[1]: Max takeoff weight for spraying: 52 kg (at sea level)
Max takeoff weight for spreading: 58 kg (at sea level)
Max Diagonal Wheelbase: 1925 mm
Dimensions: 2585×2675×780 mm (arms and propellers unfolded)
1475×1540×780 mm (arms unfolded and propellers folded)
1050×690×820 mm (arms and propellers folded)
Hovering Accuracy Range (with strong GNSS signal): D-RTK enabled:
Horizontal: ±10 cm, Vertical: ±10 cm
D-RTK disabled:
Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm)
RTK/GNSSOperating Frequency: RTK:
GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galieo E1/E5b, QZSS L1/L2
GNSS:
GPS L1, BeiDou B1I, GLONASS F1, Galieo E1, QZSS L1
Max Configurable Flight Radius: 2000 m
Max Wind Resistance: 6 m/s
Propulsion System - Motors
Stator Size: 100×28 mm
KV: 59 rpm/V
Power: 4600 W/rotor
Material: Nylon carbon fiber filament
Dimension: 50 inch
Propeller Rotation Diameter: 1270 mm
Quantity: 4
Material: Plastic (HDPE)
Volume: 20 L
Operating Payload [1]: 20 kg[1]
Quantity: 1
Model: LX8060SZ
Quantity: 2
Nozzle Distance: 1368 mm（Rear Nozzles）
Droplet Size: 50-500 μm
Effective Spray Width[2]: 4-7 m (at a height of 3 m above the crops)
Type: Impeller pump (magnetic drive)
Quantity: 2
Single Pump Flow Rate: 0-12 L/min
Max Flow Rate: 16 L/min (2 sprinklers)
24 L/min (4 sprinklers)
DJI AGRAS T25 Spreading System
Compatible Material Diameter: 0.5-5 mm
Spread Tank Volume: 35 L
Spread Tank Internal Load [10]: 25 kg[1]
Effective Spraying Width: Varies according to material diameter, spinner disk rotational speed, hopper outlet size, and flight altitude. For optimal performance, it is recommended to adjust the corresponding variables to achieve a spreading range of 5-8 meters.
Phased Array Radar System
Model: RD241608RF (forward phased array radar)
RD241608RB (rear phased array radar)
Terrain Follow: Max slope in Mountain mode: 20°
Altitude detection range: 1-50 m
Stabilization working range: 1.5-30 m
Obstacle Avoidance[4]: Obstacle sensing range (omnidirectional): 1-50 m
FOV:
Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
Rear phased array radar: vertical 360°, horizontal ±45°
Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s.
Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking)
Sensing direction: 360° omnidirectional sensing
Binocular Vision System
Measurement range: 0.5-29 m
Effective Sensing Speed: ≤10 m/s
FOV: Horizontal: 90°, Vertical: 106°
Operating Environment: Adequate light and discernible surroundings
Remote Controller
Model: RM700B
Operating Frequency[5]: 2.4000-2.4835 GHz, 5.725-5.850 GHz
Max Transmission Distance: 7 km (FCC), 5 km (SRRC), 4 km (MIC/CE)
(unobstructed, free of interference, and at an altitude of 2.5 m)
Wi-Fi Protocol: Wi-Fi 6
Wi-Fi Operating Frequency [5]: 2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Bluetooth Protocol: Bluetooth 5.1
Bluetooth Operating Frequency:
GNSS: GPS+Galileo+BeiDou
Screen: 7.02-in LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2
Operating Temperature: -20° to 50° C (-4° to 122° F)
Storage Temperature Range: Less than one month: -30° to 45° C (-22° to 113° F)
One to three months: -30° to 35° C (-22° to 95° F)
Six months to one year: -30° to 30° C (-22° to 86° F)
Charging Temperature: 5° to 40° C (41° to 104° F)
Internal Battery Runtime: 3 hours 18 minutes
External Battery Runtime: 2 hours 42 minutes
Charging Type: It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger.
Charging Time: 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)
DB800 Intelligent Flight Battery
Model: DB800 Intelligent Flight Battery
(BAX702-30000mAh-52.22V)
Weight: Approx. 6.6 kg
Capacity: 15000 mAh
Nominal Voltage: 52.22 V
C8000 Intelligent Charger
Model Number: CSX702-9500
Dimensions: 400 × 266 × 120 mm
Weight: Approx. 11.4 kg
Input/Output: Input Voltage: 100-240 VAC
Output Voltage: 59.92V
Output Current: 100A max
Charging Time: Fully charges a battery in 9 to 12 minutes (DB800 Intelligent Flight Battery)
Protection Functions: Over-temperature, over-voltage, under-voltage, short-circuit, and fan stall protection
Charging Safety: AC wire protection, power wire protection, and charge connector protection
Relay
Model: RL01-65
Dimensions: 120×110×100 mm
Weight: ≤575 g
Input Voltage [6]: 9 V3 A / 12 V2.5 A / 15 V2 A
Power Consumption: 9 W (SRRC), 12 W (FCC)
Capacity: 6500 mAh
Operating Time: 4 hours
Operating Frequency [5]: 2.4000-2.4835 GHz
5.725-5.850 GHz
Max Transmission Distance: 5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC)
(unobstructed, free of interference, and at a flight altitude of 2.5 m)
Charging Time: 2 hours and 20 minutes (when using a standard DJI charger)
IP Rating [6]: IP55
Notes
[1] Data was measured at sea level. The payload weight is greatly affected by the ambient temperature and altitude. The payload weight needs to be reduced by 5 kg for every 1,000m increase in altitude. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised. <br>
[2] The spray width of the spraying system depends on the operating scenario and demand for coverage evenness.<br>
[3] The spread width of the spreading system depends on the operating scenario and demand for coverage evenness.<br>
[4] The effective sensing range and its ability to avoid and bypass obstacles will vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles. Downward sensing mainly assists in Terrain Follow and Altitude Hold. The sensing in other directions is used for Obstacle Avoidance. <br>
[5] 5.8 GHz frequency is unavailable in some contries. Check local regulations for more information.
[6] Use chargers or external power supplies that meet the specifications. Otherwise, the device may not work normally.
[7] The protection rating may be reduced due to improper use and damage caused by external forces or environmental factors.
[8] The actual power and voltage may vary according to local regulations
[9] Measured using RON 92 gasoline at near sea level with an ambient temperature of 25°C, while charging at 9 kW.
[10] The DJI Agras app will intelligently recommend the payload weight limit for the spread tank according to the current status and surroundings of the aircraft. DO NOT exceed the recommended payload weight limit when adding material to the spread tank. Otherwise, the flight safety may be affected.
In the box
DJI Agras DB800 Intelligent Flight Battery (T25) × 3
DJI AGRAS T25 × 1
DJI C8000 Intelligent Battery Station × 1
DJI WB37 Intelligent Battery × 1
Agras 15AMP C19 Mains Power Cable × 2
DJI 65W Portable Charger (NZ) × 1
DJI Agras T25 Spreading System × 1
DJI Agras T25 Atomized Sprinkler Package × 1
WHY BUY FROM US?
By buying from Ferntech, you'll have the confidence that you are dealing directly with New Zealand's leading drone experts. Our staff are knowledgable drone pilots who offer expert advice, trusted support and superior specialist service. Only through us will you receive a full New Zealand warranty, phone and email support, and access to our certified Repairs Centre with DJI-qualified drone technicians. And we guarantee that we will have the best prices on the market — if not let us know and we will match any price (conditions apply).
Warranty Details
Aircraft
How is the flight performance of the DJI AGRAS T25?
Maximum flight altitude: 100 m (subject to local regulations, please check with your local dealer);br> Longest control range: 2,000 m;
Maximum flight speed 10 m/s, maximum operating flight speed 10 m/s
What is the rotating direction of the propellers on the DJI AGRAS T25?
Dual Atomizing Spraying System
What is the droplet size of the dual atomizing spraying system of the DJI AGRAS T25? Is the droplet size adjustable?
Droplet size: 50-500 μm.
The droplet size can be customized or set to one of six droplet size levels: Very Coarse, Coarse, Medium, Fine, Very Fine, and Extremely Fine.
Is the Agras T20P compatible with the spraying system of the DJI AGRAS T25?
No.
Active Phased Array Radar System + Binocular Vision System
What functions provided by Active Phased Array Radar and Binocular Vision are supported on the DJI AGRAS T25?
1. Multidirectional Obstacle Sensing on the horizontal plane as well as Obstacle Bypassing in the direction of the drone's nose.
2. Steep-slope Terrain Follow.
On what conditions can the Active Obstacle Bypassing and Terrain Follow features be used for operations with the DJI AGRAS T25?
1. These features can be used in AB flight routes and fully automatic operations, but not in manual routes.
2. The light intensity must be moderate, the scenarios must have rich texture features, and the Binocular Vision System must be free of stains or obstructions.
3. Active Obstacle Bypassing is supported at an altitude of 2.5-8 m. Terrain Follow is supported at an altitude of 1.5-30 m.
4. Obstacle Bypassing is not recommended around electric or guy wires.
Surveying and Mapping
What is the maximum slope that is supported in area surveying with the DJI AGRAS T25?
It can survey slopes up to 20°.
*To ensure a high success rate of surveying and mapping, T25 will automatically adjust its flight speed based on the hill slope. The steeper the slope, the slower its speed.
What are the differences between Area Route surveying and Boundary Route surveying on the DJI AGRAS T25?
Area Route surveying: Surveys and maps all areas and automatically detects field boundaries and obstacles.
Boundary Route surveying: Surveys and maps the 20-m wide area around the field boundary. This mode is capable of quickly surveying large areas and is suitable for areas without obstacles.
Can field and 3D orchard routes surveyed by the DJI AGRAS T25 be used by other Agras series drones?
Orchard and field routes are compatible with T series Agras drones. Before a mission, check operating parameters such as the field margins, route spacing, and flight speed.
Is RTK required for FPV mapping with T25?
Yes.
Charging Device
Does the DJI AGRAS T25 come with an air-cooled heat sink?
No. It is not included as standard.
What kind of generator should be used with the C8000 Intelligent Charger?
When conducting fast charging by connecting a third-party generator, please select a generator with 220 V-240 V output and output power no lower than 6 kW. Connect the live wires (labelled with L), null lines (labelled with N) and earth wires (labelled with PE) of the two fast charging cables of the C8000 Intelligent Charger with the live wire, null line and earth wire of the generator, respectively.
Spreading System
How does the T25 Spreading System work in low application rate scenarios such as seeding and herbicide spreading?
The T25 Spreading System supports switching to smaller hopper gates. Low flow rate spreading is more precise.
Does the T25 Spreading System support powder spreading?
No.
DJI RC Plus
Has any improvement been made to the video transmission signals of the DJI AGRAS T25?
The DJI AGRAS T25 has DJI's new O3 Transmission system equipped with four antennas. It can transmit smoother images when working with tall crops. The video transmission signal quality is greatly improved.
Does the DJI RC Plus come with an RTK High-Precision Positioning Module and adapter?
It's an optional module.
DJI Relay Module
Which models of drones can be paired with the DJI Relay?
Agras T50, DJI AGRAS T25, Agras T40, and Agras T20P.
What do I need to pay attention to when setting up a DJI Relay?
1. When using the Relay, make sure there is no obstruction between the remote control and the Relay, or between the Relay and the drone
2. Make sure that the Relay is installed at least 2 meters higher than obstacles to ensure smooth signal transmission.
3. Do not use the Relay during thunderstorms.
Does the DJI Relay support concurrent signal transmission to multiple drones?
No.
DJI SmartFarm Web
Photos taken by which aircraft models can be reconstructed using DJI SmartFarm Web?
Phantom 4 RTK, Phantom 4 Multispectral, DJI Mavic 3 Multispectral and DJI Mavic 3 Enterprise are supported. Photos taken by non-DJI aircraft are not supported.
Which scenarios can be reconstructed by using DJI SmartFarm Web?
Field, orchard, and multispectral scenarios can be reconstructed.
What is the maximum number of photos that can be reconstructed using DJI SmartFarm Web?
The upload limit for a single mission is 20,000 photos, including TIF format photos. We recommend that you upload no more than 10,000 photos per mission.
What agricultural applications can be implemented using DJI SmartFarm Web with DJI Mavic 3M and DJI Agras drones?
Elevation Analysis: Monitor elevation data to analyze land level status and provide guidance on leveling operations to improve efficiency.
Crop growth monitoring: Observe crop growth through NDVI and other vegetation indices to identify seedling emergence, nutritional status, weed distribution, water stress, and other conditions, to improve field scouting efficiency.
Prescription Maps: Generate prescription maps for variable rate fertilization and crop protection based on crop growth monitoring results, ensuring even growth and reducing the application of chemicals.
Fruit tree counting: Automatically count fruit tree numbers.
Surveying and mapping of orchards and farmlands: Map operation areas and plan fully automatic routes for Agras drones.
Farmland surveying and mapping: Generate high-resolution maps where farmland boundaries are automatically extracted, allowing users to survey the cultivated area.
How do new DJI Agras drone users obtain access to DJI SmartFarm Web?
DJI SmartFarm Web is at free trial currently. Follow up for updates.
There's currently no reviews for this product, be the first to write one.
