CZI TK3 Tethering Station

Features

The CZI TK3 Tethering Station is the new generation of ground power systems, further optimized for size and weight.

It converts 220V AC power into 400V DC high-voltage power, which is transmitted to the drone through a high-performance nickel alloy cable. This enables the drone to realize 24-hour uninterrupted flights.

Used in conjunction with UAV matrix lights, high-power gimbal searchlights, cameras, and other mission payloads, it can meet the needs of long-time and large-area emergency lighting and monitoring in complex emergency scenarios.

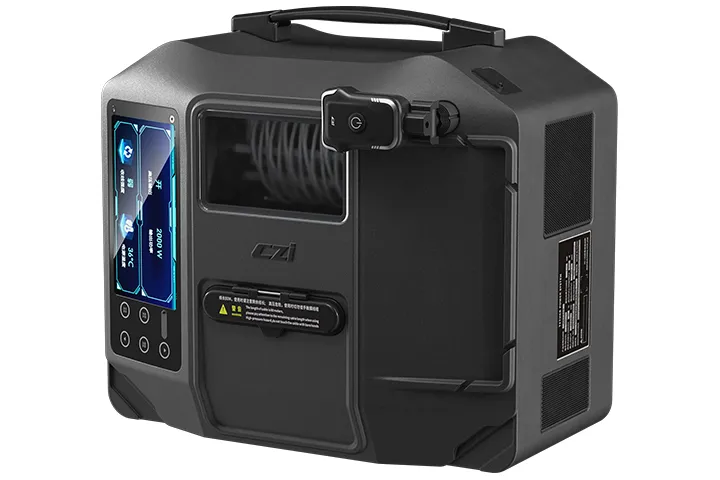

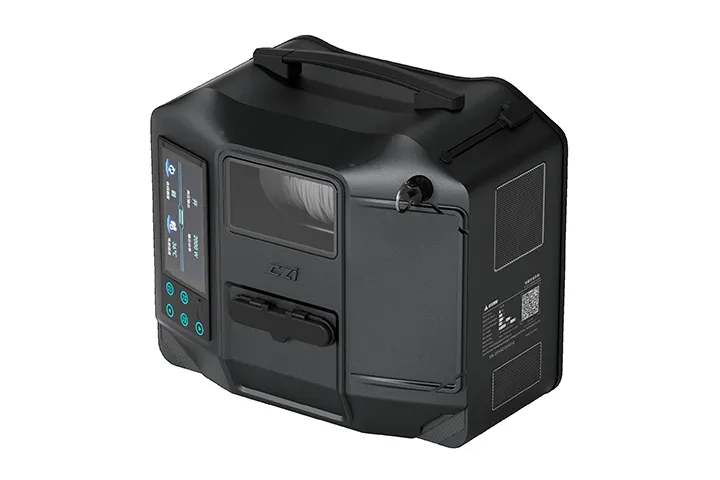

TK3 Ground End
Product features:
1. Weight: 7.5kg±5%.
2. Size: 356*310*229mm.
3. Specialized backpack.
4. 5-inch bright display screen, display power output, light switch, receiving strength and other information.
5. with wired and wireless OTA upgrade function.
6. Power failure alarm. Ground end of the accidental power failure, the buzzer will sound an alarm, which can last for minutes.
7. Fault display. When the system fails, it will show the specific fault content in the display.
8. Ground end and sky end can be frequency pairing.
9. the sky side and the ground side have an independent control link to control the lights, do not rely on DJI osdk.
10. the tripod can be quick release.
11. Compatible with 110v and 220v AC power input.
12. Cable length: 80 meters.

TK3-M30 Sky End
Product Features:
1, the sky end to replace a piece of the original battery, the weight of the sky end + 30 meters of tethered cable is just equal to the weight of the original battery, does not bring additional weight to the drone burden
2、Weight: 320g±5%.
3、Size 150*59*81mm

Product Specifications

Model: TK3
Input Volt: ☆110v~220v AC
Weight/kg: ☆Weight≤7.5kg
Dimension/mm: ☆356*310*229mm
Output Volt: 400V DC
Output Power: 3kw
Transportation: ☆Specialized Outdoor Backpack
Cable Length: 80m(Optional 30m extension cable)
Applicable Models: ☆DJI M300 / M350 / M30 / M30T
Upgrade Method: Wired/wireless OTA
Drone-side communication pairing: ☆Yes
Overcurrent protection: Automatic protection of on-board power supply when output current ＞65A
Deployment Status:
- Foldable Quick Release Waterproof Bracket
- LED near-field light (white constant, red and blue burst)
Power supply:
- Energy storage device
- 220V Utility
- Alternators
Info Display: ☆5-inch high brightness display
(power output, light switch, take-up strength and other info) Fault specifics when occurred Power failure at the ground side, the buzzer will sound  alarm for 2 minutes.


In the box

CZI TK3 Tethering Station × 1
