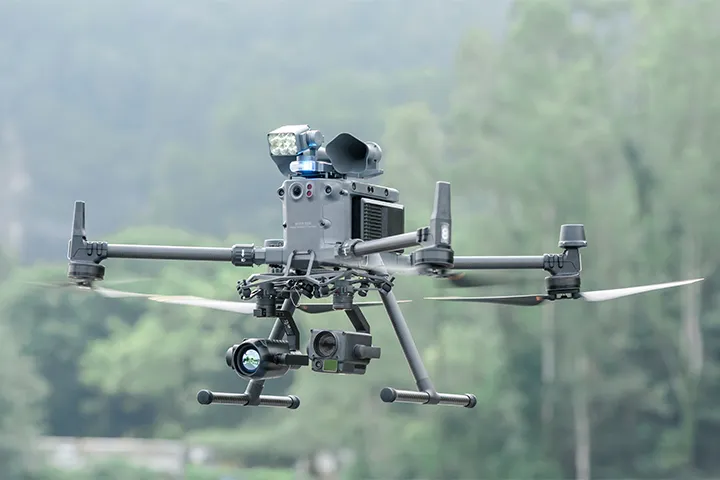

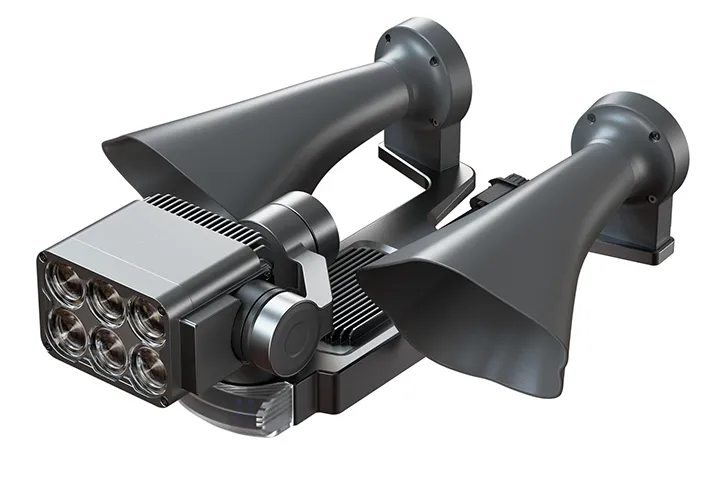

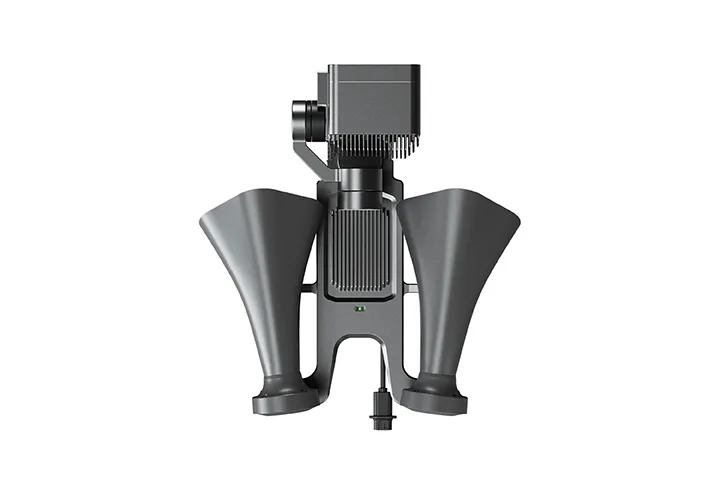

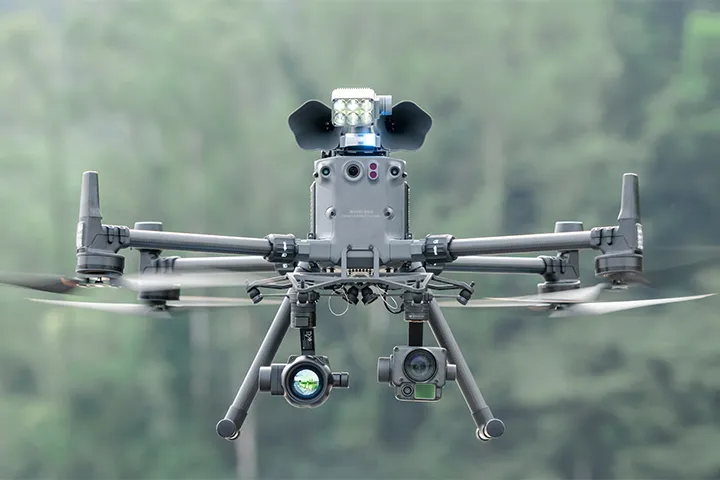

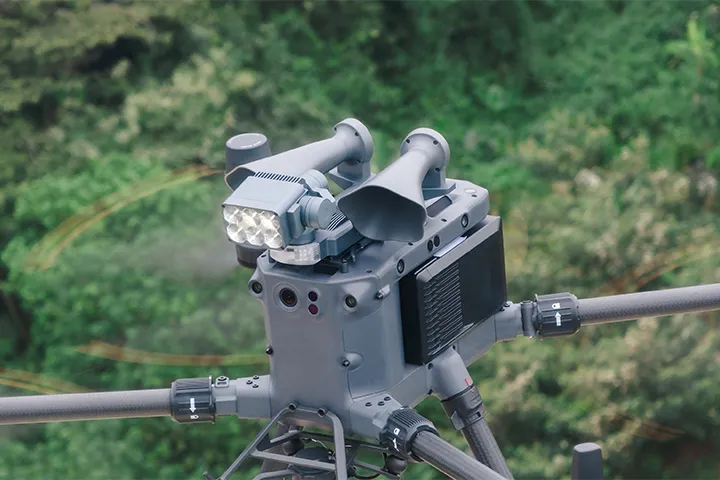

CZI LP35 Searchlight & Broadcast System for DJI Matrice 350
The CZI LP35 Searchlight and Broadcasting System, designed for M350 RTK drones, features a 90W light, 126dB audio, and covers 917 square meters. It offers live broadcasting, TTS, and warning lights for enhanced visibility.
Features
The CZI LP35 Searchlight and Broadcasting System boasts a maximum power output of 90W and can be integrated with the M350 RTK drones using the OSDK interface. It features a concentrated 13° beam that achieves uniform brightness across an area, illuminating up to 150 meters in height with a central intensity of 6.3 lux and effectively covering an area of 917 square meters. The system's loudspeaker delivers robust sound penetration with a maximum sound pressure level of 126dB and an effective broadcast range of 400 meters. It supports live broadcasting, TTS, and other functionalities for quick and easy operation. Additionally, built-in red and blue flashing warning lights enhance the visibility of police drones and synchronize seamlessly with the gimbal camera to augment camera operations efficiently.
Compatibility
DJI Matrice 300
DJI Matrice 350
Product Specifications
Size/mm: L185*W175*H95
Weight/g: 550
Ttal Power/W: 96
Electrical Interface: DJI OSDK
Bluetooth Protocol: Bluetooth v4.2 BR/EDR & Bluetooth Low Energy
Bluetooth working frequency /MHz: 2400–2483.5
Protection Level: IP54 (TBD)
The protection level is not a permanent standard and the protection capability may decrease due to product wear and tear.
Operating Temperature/°C: -20~+50
Warning Light Mode: Red and blue flashing, red light flashing, blue light flashing
Loudspeaker Sound Pressure: 125dB@1m
Megaphone Maximum Power/W: 30
Effective broadcast distance: 400m
Broadcast Method: Real-time shouting
Recording upload
Audio file playback (audio format MP3)
Text-to-speech playback (supports text recording)
Searchlight Light Flux/lm: 6000±3%
Searchlight LED Power/W: 60
Searchlight FOV/°: 13
Searchlight distance/m: 150 | 100 | 50
Searchlight Spot Diameter/m: 34 | 22.8 | 11.4
Searchlight Area/m2: 917 | 407 | 102
Central Illumination/Lux: 6.3 | 14.4 | 57
PTZ Control Rotation Range: Pitch: -55°~+65°
Horizontal: ±35°
Roll: ±25°
Searchlight Function Mode: Always on mode
Strobe light mode
Brightness adjustment
Pan/tilt angle adjustment
Automatically follow the camera
AI spot centering
Drone Platform Support: M300/M350
APP Support: CZI Pilot
In the box
LP35 Searchlight and Broadcast System (Including SDK Connector) × 1
Mounting Bracket × 1
Screws × 4
