Bluetti PV120D Solar Panel | 120W

Sunshine-Powered Convenience

Wherever the sun shines, the PV120D is ready to power up! By working with a solar generator, it seamlessly collects, converts, and stores clean, renewable solar energy. Whether you're traveling, camping, or simply need a daily backup, the PV120D ensures solar energy is within reach around the clock.

Superior Durability and Efficiency

Crafted with innovative ETFE coating, the PV120D offers unparalleled durability and UV resistance, extending its lifespan and ensuring optimal performance in all environments.
The monocrystalline solar cells allow up to 23.4% conversion efficiency, surpassing the industry average of 20% and maximizing solar energy utilization.

Thoughtful Design for Maximum Solar Absorption Anywhere

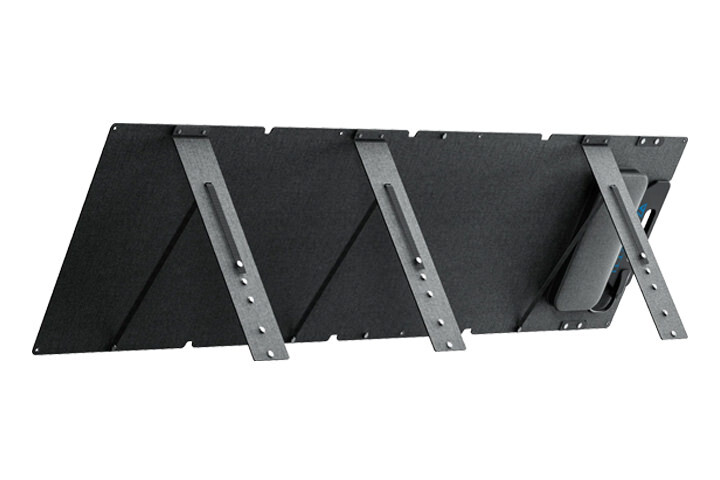

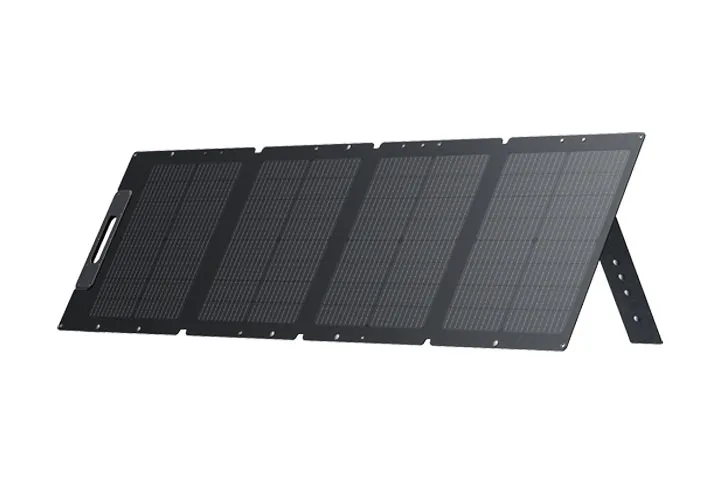

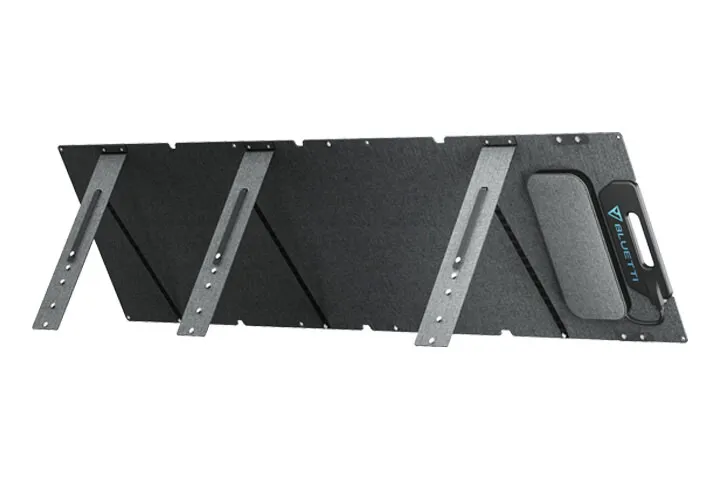

The adjustable kickstands allow you to set up quickly and securely, from your backyard to a campsite, even at the beach. Finding the best angle is a breeze, ensuring optimal sunlight absorption.
With the pre-drilled holes, you can mount or hang the solar panel on your car or anywhere else you need. Relax and enjoy the convenience to power up with solar energy, anytime and anywhere.

Universal Compatibility and Quick Setup

Built-in with MC4 connectors, the PV120D is compatible with all BLUETTI portable power stations and most solar generators on the market. Setting it up is incredibly simple, requiring just a few steps to get you harnessing solar power in no time.

Product Specifications

Power

Maximum Power: 120W
Cell Lamination: ETFE (Ethylene Tetrafluoroethylene)
Cell Type: Monocrystalline Silicon
Cell Efficiency: Up to 23.4%
Open Circuit Voltage(OCV): 24.6V
Short Circuit Current(Isc): 6.6A

General

Connector: Standard MC4 Connector
Weight: 5.36Kg
Dimensions (Unfolded): 500*1760mm
Dimensions (Folded): 500*500*45mm
Operating Temperature: -10 to 65℃
Best Working Temperature: 25℃
Certifications: FCC, CE, ROHS

In the box

Bluetti PV120D Solar Panel | 120W  × 1

WHY BUY FROM US?

By buying from Ferntech, you'll have the confidence that you are dealing directly with New Zealand's leading drone experts. Our staff are knowledgable drone pilots who offer expert advice, trusted support and superior specialist service. Only through us will you receive a full New Zealand warranty, phone and email support, and access to our certified Repairs Centre with DJI-qualified drone technicians. And we guarantee that we will have the best prices on the market — if not let us know and we will match any price (conditions apply).

Warranty Details

12 Months

Is it waterproof?
Yes. IP67 is rated for junction box. Do not expose the solar panel to rain or snow.

Can I install it on the roof?
No.

BLUETTI PV120D compatibility.
Most solar power stations on the market, and one PV120D solar panel is ideal for BLUETTI EB55/EB70/EB3A portable power stations.

How do I choose solar panels for my solar generator?
Review the PV input requirements of the solar generator.
Review the output specifications of solar panels.
Calculate the total voltage, current, and wattage of solar panels.
Consider the solar input connectors

Can I use different size solar panels?
No. Your solar panels should be the same type and rating from one brand. For example, two PV120D to charge BLUETTI AC200P is acceptable, and one PV120D + one PV120 is unacceptable.

Does the panel have any USB ports you can directly plug into?
No. BLUETTI PV120D only has MC4 connectors.

How do I maximize the efficiency of solar panels?
These steps will help you get the most out of your solar panels:
1. Set up your panels correctly: The orientation as well as the angle it tilts at should be right.
2. Avoid shadow areas: Any amount of shadow will affect solar panel production.
3. Keep your panels clean: Dirt or debris reduces the panel’s efficiency.
4. Don’t get panels too hot: Good air circulation or a cool atmosphere around panels will help.

What should I do when using it?
It is recommended to not have any cover when using.
