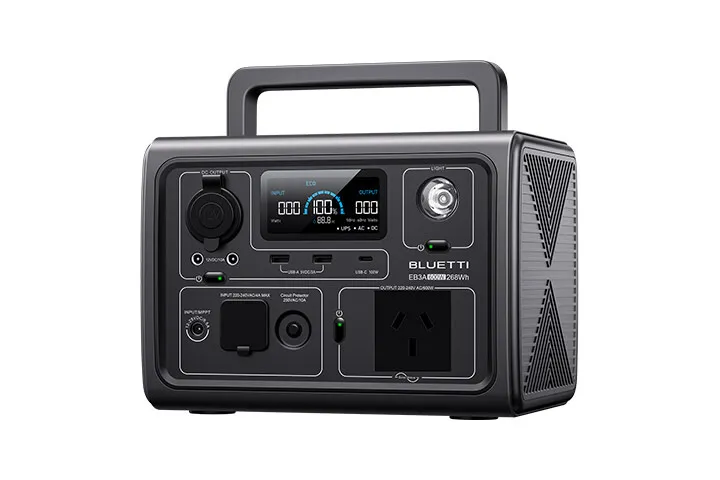

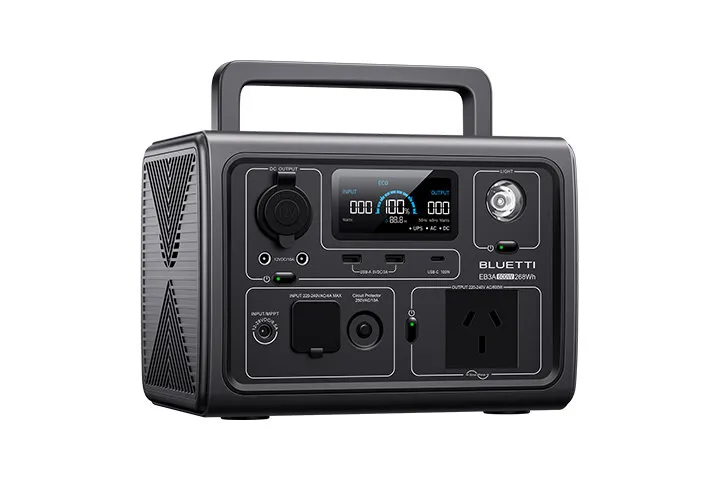

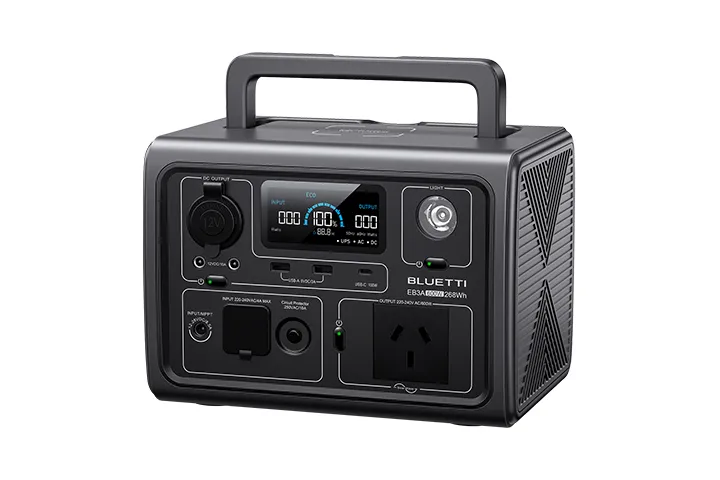

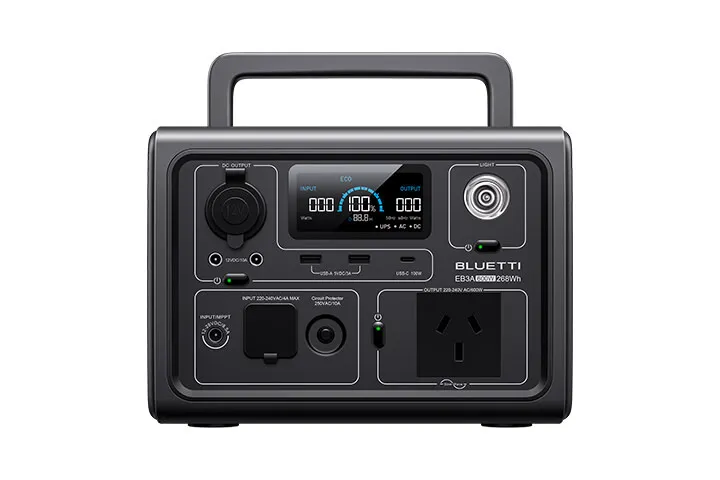

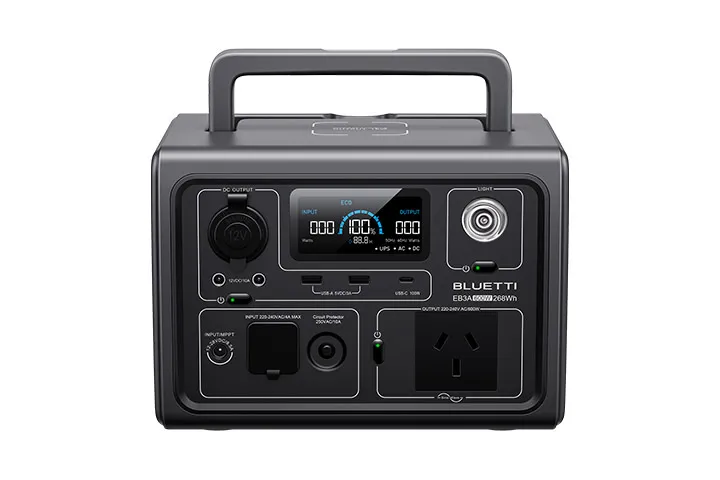

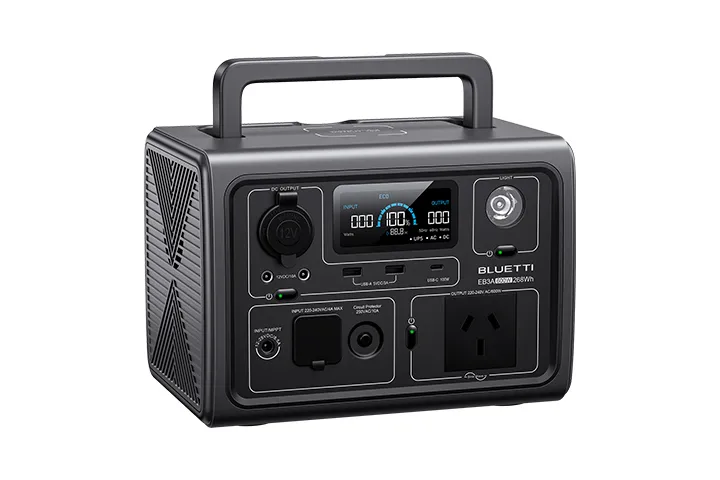

Bluetti EB3A Portable Power Station | 600W 268Wh

Features



Highlights

• 600W AC Pure Sine Wave Inverter (1,200W surge)
• 430W Max. Fast Dual • Charging (Solar+AC)
• LiFePO4 Battery with 2,500+ Life Cycles to 80%
• 6 Ways to Recharge (AC/Solar/Car/Generator/AC+Solar/AC+Adapter)
• 9 Outputs for Charging Multiple Devices at once
• Smart Control & Monitor in BLUETTI App
• 200W Max. Solar Input
• Easy to Carry/ Fast Charging/ Safe & Reliable/ Cost-effective





EB3A's Compact Command

In the world of small wonders, meet the EB3A – compact yet mighty. From fueling mini blenders to running mini fridges, it's the go-to for grand tasks. With a 600W AC Pure Sine Wave Inverter (surging at 1200W) and a robust 268Wh capacity, the EB3A is the pint-sized powerhouse redefining expectations.





Ultra Fast Charging

EB3A features 430W Fast Charging that allows you Charge in ~1.3 hours. 80% Charge in 30 minutes - getting you more time for your leisure activities.





Multiple Ways to Recharge

Say goodbye to power worries during RV adventures or wilderness explorations. The BLUETTI EB3A ensures peace of mind with versatile recharge options: AC, solar panels, your vehicle's engine, a trusty generator, AC+Solar, or AC+Adapter. Hit the road worry-free with your adaptable power companion.





Safety & Heightened Security

The BLUETTI EB3A stands out with its LiFePO4 battery and Battery Management System (BMS). The LiFePO4 battery boasts superior thermal and chemical stability, translating into better performance and an extended 2,500-cycle life at 80%. Meanwhile, the BMS tirelessly monitors and shields your device from every conceivable risk, ensuring a power experience that's not just reliable but inherently secure. In the EB3A, safety is not just a feature; it's intricately woven into every detail.





9 Charging Slots

Say goodbye to charging conflicts and welcome the EB3A's versatile power hub. No more jostling for a quick charge – this powerhouse boasts 9 outlets to meet an array of charging needs simultaneously. From classic AC and DC output to the dynamic 100W Type-C, car socket, and even a wireless charger, the EB3A ensures everyone is well taken care of, whether you're at home or venturing outdoors. Charging just got a whole lot more accommodating.





Effortless Control with EB3A App

Take charge with the EB3A app, offering seamless control within a 10m radius. Swift access via Bluetooth ensures your power companion is always under your command.





Product Specifications

BATTERY INFO

Capacity: 268.8Wh (22.4V,12Ah)
Type: LiFePO4 (Lithium Iron Phosphate)
Life Cycles: 2,500+ Cycles to 80% Original Capacity
Shelf-life: Recharge to 80% Every 3-6 Months
Management System: MPPT Controller, BMS, etc.


OUTPUT

AC Outlets: 1 x 220V-240V/2.6A Outlets, 600W In Total
Inverter Type: Pure Sine Wave
Surge Power: 1,200W
USB-C Port: 1 x 100W Max.
USB-A Port: 2 x 5V/3A USB-A
"DC Outlets: 1 x 12V/10A (Car Outlet)
2 x 12V/10A DC 5521 (5.5mm Outlets)
*All Regulated.
Wireless Charging Pad: 1 x 15W Max.


INPUT

AC Charging Cable (Standard Mode): 268W Max.
AC Charging Cable (Turbo Mode): 350W Max.
Solar Input: 200W Max, VOC 12-28VDC/ 8.5A
Car Input: 12/24V from Cigarette Lighter Port(8.5A Max.)
Maximum Input: 430W, with AC and Solar Input Simultaneously


RECHARGE TIMES

AC Charging Cable (Turbo Mode 350W): ˜1 Hours
AC Charging Cable (Standard Mode 268W): ˜1.5-2.0 Hours
Solar (200W): ˜1.8-2.3 Hours (With prime sunshine, ideal orientation and low temperature)
12V/24V Car Outlet (102W/204W): ˜3.1-3.6 or 1.5-1.8Hours
AC + Solar (430W): ˜1.1-1.6 Hours (With prime sunshine, ideal orientation and low temperature)
Dual AC (430W): ˜1.1-1.6 Hours (With optional BLUETTTI T200S Adapter)


GENERAL

Pass-through Charging: Yes
Weight: 10.14lbs/4.6kg
Dimensions (LxWxD): 10.04*7.09*7.20in/255*180*183mm
Operating Temperature: 14-104F (-10-40C)
Storage Temperature: 14-113F (-10-45C)
Tested&Certifications: UL2743, UKCA, TELEC, PSE, NTC, RCM, KC, FCC ID, CE


Eco Mode

AC load <10W & >4Hrs, DC load<1W & >4Hrs:: AC or DC output turns off automatically with "Eco mode " on the App. You can set the "turn off" time from 1hr to 4hrs.

In the box

WHY BUY FROM US?

By buying from Ferntech, you'll have the confidence that you are dealing directly with New Zealand's leading drone experts. Our staff are knowledgable drone pilots who offer expert advice, trusted support and superior specialist service. Only through us will you receive a full New Zealand warranty, phone and email support, and access to our certified Repairs Centre with DJI-qualified drone technicians. And we guarantee that we will have the best prices on the market — if not let us know and we will match any price (conditions apply).



Warranty Details

Can it charge and discharge at the same time?
Yes

How do I know whether my appliance can work well with the EB3A?
Calculate the total wattage of your devices. EB3A would work if the load doesn't exceed its rated 600W.

How long can it run my device?
Running time = Battery capacity × DoD n ÷ Device rated power DoD refers to Depth of Discharge and n is local inverter efficiency.
For EB3A, both DoD and n are 90%. If you run a 100W LED Light with it, the running time will be:
268Wh × 90% × 90% ÷ 100W = 2.17hrs
Note:
1) The formula is NOT suitable for inductive loads with compressors, like refrigerator, air conditioner, etc.
2) The above data is for reference ONLY.

What is the maximum input charging power of the EBA?
430W Max. via AC and solar charging simultaneously.

What kind of solar panels should I choose for EB3A?
Ear Input and Mic connectes dS with 122ey open Creult votage. 200W
Highly Recommended:
1x BLUETTI PV120: -2.7hrs*.
1x BLUETTI PV200: -1.8hrs*.
* For reference ONLY.

Is EB3A Waterproof?
No.

How Do I Store my EB3A?
Store in a dry and well-ventilated place and recharge to 80% every 3-6 months.

Will EB3A Work in Really Cold Environments?
Temperature ranges for EB3A are:
Charge: 0-40°C (32-104°F);
Discharge: -20-40°C (-4-104°F);
Storage: -10-45°C (14-113°F).
Technically, it can power electrical devices in sub-zero temperatures, but please avoid charging it

Can EB3A Be Laid on the Side to Save Space?
No. Because that may loose the internal structure. Please keep it upright to ensure its performance.

Can I expand its capacity by connecting with B230/B300 battery?
Unfortunately, No.
