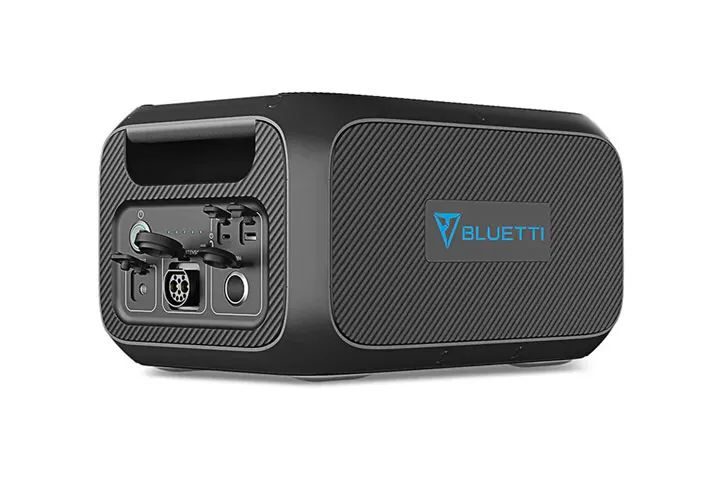

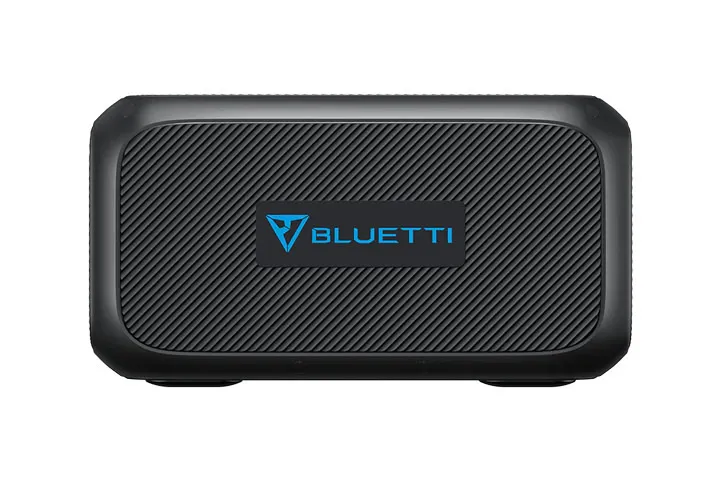

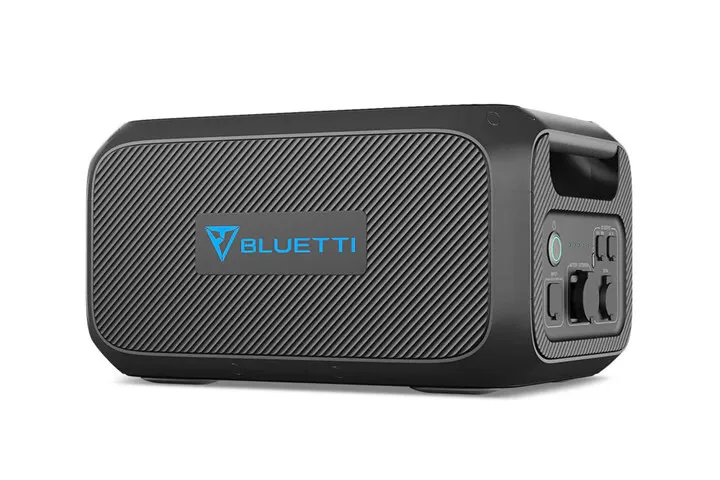

Bluetti B230 Expansion Battery | 2048Wh

Never Run out of Power

BLUETTI B230 suits your ordinary electricity needs at 2,048Wh capacity and supports solar, AC (Adapter sold separately), car, and lead-acid battery charging to capture power whenever and wherever. *The car and lead-acid battery charging need a D050S.

Versatile Power Source

The 100W USB-C, 12V/10A cigarette lighter, and 18W USB-A output ports are to charge your on-road essentials like smartphones, laptops, cameras, fans, lights, and so on.

Give Your Devices More Runtime

B230 has over 3,500 life cycles with top-notch LFP cells, offering up to 80% of the original capacity. Moreover, it is supplementary compatible with BLUETTI AC200MAX for a whopping capacity.

Home Backup and Trip Power Bank

The AC200MAX + B230 unit is portable and safe to use. Just put them in your home or trunk, they will serve as your home and camping trip backup or power supply with a great feature set.

Product Specifications

BATTERY INFO

Capacity: 2,048Wh (51.2V,40Ah)

Cell Chemistry: Lithium Iron Phosphate (LiFePO4)

Life Cycles: 3,500+ Cycles to 80% Original Capacity

Shelf-life: Recharge to 80% Every 3-6 Months

Management System: MPPT Charge Controller, BMS, etc.

OUTPUT

USB-C Port: 1 x 100W Max.

USB-A Port: 1 x 18W

Outlets: 1 x 12V/10A (Car Outlet)

INPUT

AC Input: 500W Max.

Solar Input: 500W Max., VOC 12-60VDC, 10A (Via BLUETTI D050S)

Car Input: 12/24V from Cigarette Lighter Port (Via BLUETTI D050S)

Maximum Input: 500W

RECHARGE TIMES

AC Adapter (500W): ≈5.5~6 Hours

Solar Panel(500W): ≈4.5~5 Hours (With prime sunshine, ideal orientation and low temperature)

12V/24V Car Outlet (100W/200W): ≈10 or 20 Hours

GENERAL

Pass-through Charging: Yes

Weight: (21.8kg) 48lbs

Dimensions (LxWxD): 16.5 x 11 x 8.9in ( 42 x 28 x 22.75cm)

Operating Temperature: 32°F-104°F (0-40°C)

Storage Temperature: -4°F-104°F (-20°C-40°C)

Certifications: UL2743, UKCA, RCM, PSE, FCC, CE

Warranty: 4 Years

In the box

Bluetti B230 Expansion Battery | 2048Wh × 1

WHY BUY FROM US?

By buying from Ferntech, you'll have the confidence that you are dealing directly with New Zealand's leading drone experts. Our staff are knowledgable drone pilots who offer expert advice, trusted support and superior specialist service. Only through us will you receive a full New Zealand warranty, phone and email support, and access to our certified Repairs Centre with DJI-qualified drone technicians. And we guarantee that we will have the best prices on the market — if not let us know and we will match any price (conditions apply).

Warranty Details

4 Years

Which BLUETTI power stations can work with B230?
AC200MAX/AC200/AC200P/EB150/EB240/EP500Pro.
Aditional accessories are required for each power station.
AC200P: P090D to XT90 cable
EB150: P090D to DC7909 cable
EP500Pro: P090D to MC4 cable

How many B230 can I connect to AC200MAX?
Up to 2 B230 for 6,144Wh capacity.

Can I use BLUETTI B230 expansion battery alone?
Yes. It comes with a 100W USB-C, a USB-A, and a 12V car socket, providing power for phones, laptops, car refrigerators, etc.

Does B230 support App control?
Connect it to the AC200MAX, pair them with BLUETTI App, and you can control the system at any time from anywhere.

Can I use car cigaretter lighter or lead-acid battery to charge B230?
Yes, BLUETTI D050S DC Charging Enhancer* is required. * Sold separately

What are the charging methods for the BLUETTI B230?
B230 can be recharged by:
1) 500W AC adapter (Sold separately)
2) Car cigarette lighter output or solar panels (Require the BLUETTI D050S - DC charging enhancer, sold separately).
Notice: There is only one inlet on the battery module, so it cannot be charged by more than one charge method simultaneously.

Can it charge and discharge at the same time?
Yes.

Can I use or charge B230 in sub-zero temperatures?
Temperature ranges for B300 are:
Charge: 0-40℃ (32-104℉);
Discharge: -20-40℃ (-4-104℉);
Storage: -20-40℃ (-4-104℉).
Technically, it can power electrical devices under such situations, but please avoid charging it.

How long can it run my device?
Running time = Battery capacity × DoD × η ÷ Device rated power
DoD refers to Depth of Discharge and η is local inverter efficiency.
For B230, both DoD and η are 90%. If you run a 100W light bulb with it, the running time will be:
2,048Wh × 90% × 90% ÷ 100W ≈ 16.5hrs
Note: The above data is for reference ONLY.

Is B230 waterproof?
No. Also, please do NOT store it in a humid environment for a long time.

Is it possible to replace the built-in battery?
No. If the battery pack is faulty or even dead, please contact BLUETTI Customer Service.
